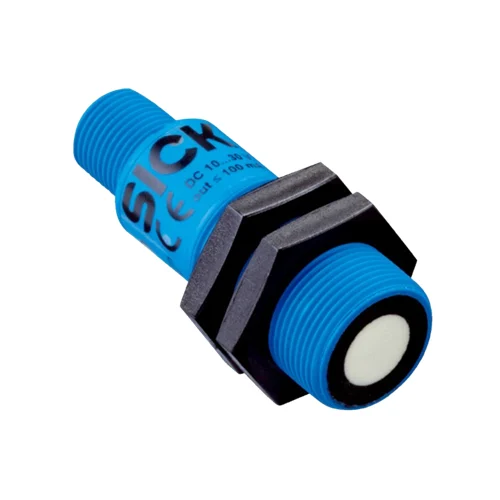

1. Checking a presented assembly in a distance window
An assembly fixture can present a reflective component surface within the ultrasonic operating range and teach a window around its expected seated distance. The PNP output provides the resulting condition to external inspection logic after the part settles. Commissioning uses representative surface geometry and alignment, accounting for the 2 mm hysteresis, measured-value accuracy and documented response rather than treating the output as a numeric distance signal.
Problem Solved
A taught acoustic distance-window condition helps external inspection logic distinguish the expected seated surface from a displaced assembly before the fixture advances.
Seated-part window
PNP output
Ultrasonic sensing
2. Reporting a material-level threshold in a small container
A small-container station can position the sensor above a suitably reflecting material surface and teach a distance threshold inside the 20–150 mm operating range. As the surface reaches that condition, the PNP output supplies an event to external replenishment control. Commissioning evaluates actual surface shape, reflection, vessel-wall echoes and the near-field limit, with timing appropriate to the stated 32 ms response.
Problem Solved
An acoustic surface-threshold event gives external replenishment logic a material-level reference, helping coordinate feed changes at the selected container condition without a contact probe.
Level threshold
Distance teach-in
External feed control
3. Counting separated packages at a guided passage
A guided passage can move separated packages with suitably reflecting faces through the assessed ultrasonic detection area. The taught PNP switching condition feeds an external counter as each package enters and leaves the sensing zone. Commissioning checks package geometry, alignment and spacing against the target-dependent detection area, 25 Hz switching limit and 32 ms response so that distinct passage events can be evaluated.
Problem Solved
Successive acoustic target transitions provide external counting logic with package-passage events, helping track separated loads using a sensing condition based on the presented ultrasonic reflection.
Package count
25 Hz
Acoustic reflection
