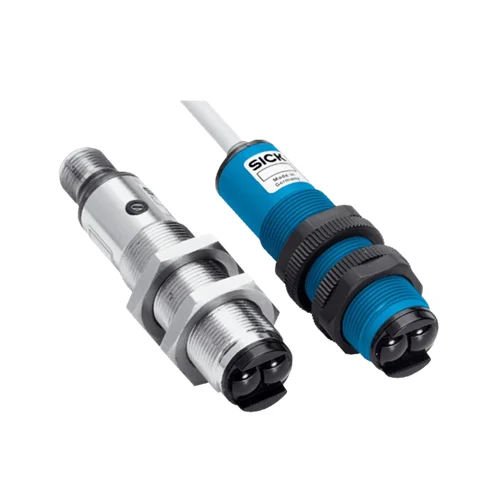

1. Counting opaque cartons against a fixed reflector
A conveyor can mount the sensor on one side and a C110A reflector opposite it, with separated opaque cartons crossing the return-light path. Each interruption changes the light-switching PNP output for an external counter. The 0.05–3 m sensing range and 250 Hz rating establish the optical and timing context, with carton spacing and input sampling set for distinct events.
Problem Solved
A reflected-beam interruption gives external counting logic a carton-passage event while keeping powered wiring on one side of the conveyor and a passive reflector opposite.
Carton counting
C110A reflector
PNP light switching
2. Monitoring opaque web continuity at a feed station
An opaque web feeder can position the sensor and reflector across the expected material path so intact material blocks the returned light. A break or exhausted web opens the path and changes the PNP signal. The 270° sensitivity potentiometer adjusts the optical setting for the installed reflector distance, while external monitoring applies the expected light-switching polarity to the material state.
Problem Solved
A sustained optical-path opening provides external feed monitoring with a material-continuity event, helping identify a break or exhausted opaque web before the next process step.
Opaque web
Sensitivity adjustment
Continuity monitoring
3. Detecting a blocked conveyor discharge position
A discharge station can place the beam across the receiving position with a passive reflector opposite the sensor. An opaque load remaining there holds the light-switching output in its interrupted state. External sequencing measures that duration and delays upstream release while the position remains occupied, accounting for the sensor response time and the installed optical path.
Problem Solved
Signal duration lets external sequencing distinguish a passing load from sustained discharge blockage, helping coordinate upstream release with the availability of the receiving position.
Discharge blockage
Signal duration
Passive reflector
