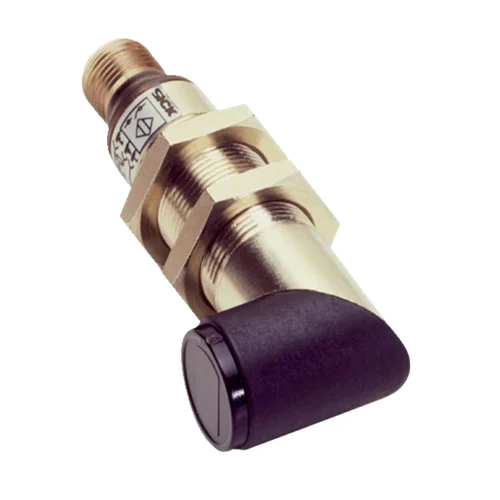

1. Counting separated opaque cartons across a conveyor
A conveyor can mount the sensor on one side of the carton path and a C110A reflector opposite it. An opaque carton interrupts the return path and changes the selected NPN output state for an external counter. Commissioning verifies alignment, carton coverage, spacing and motion timing against the 0.05–3 m sensing range, 250 Hz rating and resistive-load response limit.
Problem Solved
Reflector-return interruptions provide external counting logic with carton-passage events, helping count separated opaque loads while electrical connections remain on the sensor side of the conveyor.
Carton counting
Reflector return
NPN output
2. Confirming a component crossing a transfer threshold
A transfer station can place the reflector-return path across the location an opaque component must cross before the next operation. External sequencing logic evaluates the selected NPN light/dark condition as a passage reference. The sensitivity potentiometer adapts the optical setting, while commissioning checks actual target coverage, the chosen reflector and installed distance within the documented operating range.
Problem Solved
A monitored return path gives external sequencing logic a crossing event, helping confirm that an opaque component passed the selected transfer location before the next process step.
Transfer crossing
Sensitivity adjustment
Light/dark control
3. Monitoring sustained material blockage at a chute
A chute can place the sensor and reflector across a location that normally clears between opaque parts. External timing logic measures the duration of the selected blocked-path NPN condition and compares it with the expected process interval. The sensor supplies the optical state, while the external timer distinguishes brief part passages from material that remains across the return path.
Problem Solved
A maintained blocked-path condition gives external timing logic an accumulation reference, helping identify opaque material that remains at the monitored chute position instead of passing through.
Chute accumulation
External timing
Blocked return path
