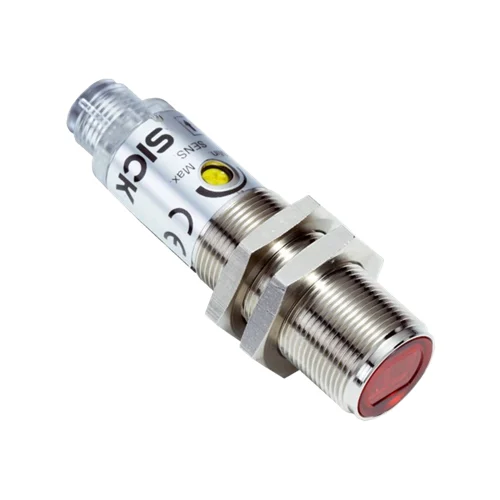

SICK 6043458 VL180-2F32331 PNP Polarized Retro-Reflective Sensor

USD 85.02

VL180-2F32331 offers 0.05–6 m PL80A sensing, polarized red-LED optics, PNP light switching, 1,000 Hz, a 270° sensitivity control and M12 connector.

SKU SICK-6043458 Category
SICK V180-2

SICK VL180-2F32331 PNP Polarized Retro-Reflective Sensor

BrandSICK
Model IdentifierVL180-2F32331
Official Part Number6043458

Technical Overview

The SICK VL180-2F32331 is an axial M18 × 1 retro-reflective photoelectric sensor with a dual-lens system and polarizing filter. Its 645 nm red LED provides 0.05–6 m sensing and 0.05–7 m maximum range with a PL80A reflector. A 270° sensitivity potentiometer adapts the returned-light setup, while the single PNP output uses light switching. Response is no greater than 0.5 ms with resistive load, with 1,000 Hz switching at a 1:1 light/dark ratio. The nickel-plated brass/PC housing uses PMMA optics, a four-pin M12 male connector and IP67 protection. A P250 reflector and two fastening nuts are supplied; the P250 has its own shorter sensing-range specification.

Polarized dual-lens M18 axial retro-reflective sensor with 0.05–6 m PL80A range, single PNP light-switching output, 270° sensitivity control and M12 connection.

Key Features

  • Polarized dual-lens retro-reflective sensing; minimum reflector distance applies
  • Axial M18 × 1 cylindrical housing
  • 0.05–6 m sensing and 0.05–7 m maximum with PL80A
  • 645 nm visible red LED; Ø400 mm spot at 6 m
  • 270° sensitivity potentiometer
  • Single PNP light-switching output; ≤100 mA
  • Response ≤0.5 ms with resistive load; 1,000 Hz at 1:1 light/dark ratio
  • 10–30 V DC; 30 mA without load; M12 four-pin male connector
  • Nickel-plated brass/PC housing; PMMA optics; IP67
  • P250 reflector and two fastening nuts supplied

Establish a polarized returned-light path with local sensitivity adjustment and a PNP light-switching signal, using the range specified for the selected reflector.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric retro-reflective sensing; dual-lens system with minimum reflector distance
Polarizing filterProvided
Housing and optical axisCylindrical M18 × 1; axial
Sensing range0.05–6 m with PL80A
Maximum sensing range0.05–7 m with PL80A
Other reflector rangesSensing / maximum: P250, PL40A, PL50A, C110A 0.05–4.5 / 0.05–6 m; PL30A, PL31A 0.05–3.5 / 0.05–4.5 m; PL20A 0.05–2.3 / 0.05–3 m; P45 0.05–1.8 / 0.05–2.2 m; Diamond Grade tape 0.1–1.4 / 0.1–1.8 m
Light source645 nm visible red LED
LED service lifeAverage 100,000 h at +25 °C
Light spot sizeØ400 mm at 6 m; diagram: Ø70 mm at 1 m, Ø140 mm at 2 m, Ø200 mm at 3 m, Ø270 mm at 4 m
Focus and dispersionApproximately 4.5°
Adjustment270° sensitivity potentiometer
Switching outputSingle PNP; light switching
Signal voltage HIGH/LOWApproximately supply voltage −1.8 V / 0 V
Output current≤100 mA
Response time≤0.5 ms signal transit time with resistive load
Switching frequency1,000 Hz at 1:1 light/dark ratio
Power supply10–30 V DC; short-circuit-protected network maximum 8 A
Ripple±10%; remain within supply tolerances
Current consumption30 mA without load
ConnectionM12 four-pin male connector
Pin assignmentCD-066: 1 BN=L+; 2 WH=not connected; 3 BU=M; 4 BK=Q
Circuit protectionSupply and input/output reverse-polarity protection; output overcurrent and short-circuit protection
Protection classIII
Housing materialNickel-plated brass and PC
Optics materialPMMA plastic
Housing length70.2 mm; partial mechanical size
Items suppliedP250 reflector; two metal fastening nuts, 24 mm across flats
IndicationOrange: switching output active; green: received-signal strength indicator
IP ratingIP67
Operating temperature−25 to +55 °C
Storage temperature−40 to +70 °C
UL fileNRKH2.E300503 and NRKH8.E300503
MTTFD1,883.8 years
DCavg0%
Physical Weight (kg)0.047

Industrial Applications

1. Counting separated opaque packages on a conveyor

A conveyor can place the sensor opposite the supplied P250 reflector and pass separated opaque packages through the returned-light path. The P250 sensing range is 0.05–4.5 m, with a separately listed 0.05–6 m maximum range. External counting logic evaluates PNP light-switching transitions, while commissioning verifies optical coverage and package spacing against the 0.5 ms response and 1,000 Hz rating.

Problem Solved

An interrupted returned-light path gives external counting logic package-passage events, helping register separated opaque loads using the sensor’s integrated receiver and supplied reflector.

Package count P250 reflector PNP light switching

2. Monitoring continuity of an opaque material feed

A feeder can place the reflector path across a location normally covered by an opaque strip or sheet. A break or exhausted feed clears the returned-light path and changes the PNP light-switching condition. The sensitivity potentiometer sets the optical response, while external monitoring distinguishes persistent material loss from intended gaps and verifies sufficient coverage at the chosen sensor-to-reflector distance.

Problem Solved

A sustained change in the returned-light condition gives external feed monitoring a continuity reference, helping identify missing material before a dependent machine operation proceeds.

Material continuity Sensitivity setting Opaque feed

3. Timing occupancy at a conveyor discharge

A conveyor discharge can place the returned-light path across the load receiving point and time how long an opaque package interrupts it. External control compares sustained blockage with the expected passage interval. Installation respects the selected reflector’s minimum distance and usable range, while the orange output and green signal-strength indicators provide local context when aligning and checking the optical path.

Problem Solved

Timing a blocked optical path gives external discharge control an occupancy reference, helping recognize a load that remains in place before another package is released.

Discharge occupancy External timing Optical alignment
