SICK 6041817 VL180-2N42431 M18 NPN Retro-reflective Sensor

USD 54.08

Polarized red-light retro-reflective sensing with P250 supplied, 0.05–4.5 m sensing on P250, 1,000 Hz, adjustable sensitivity and an M12 four-pin connector.

SKU SICK-6041817 Category
SICK V180-2

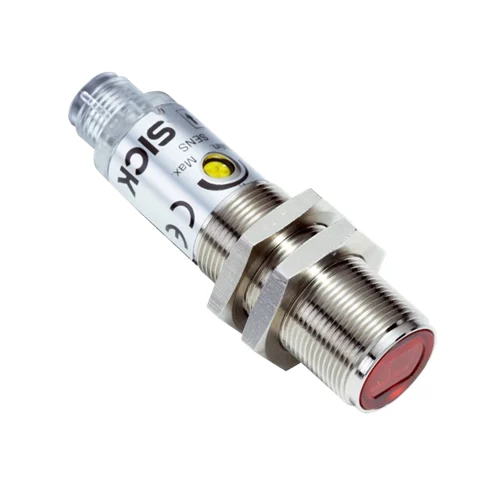

SICK VL180-2N42431 M18 NPN Retro-reflective Sensor

BrandSICK
Model IdentifierVL180-2N42431
Official Part Number6041817

Technical Overview

The SICK VL180-2N42431 is an axial M18 retro-reflective sensor with a polarizing filter, visible red LED and one NPN output. Its dual-lens optics require a minimum reflector distance. Sensing is 0.05–6 m with PL80A, while the supplied P250 supports 0.05–4.5 m sensing and a 0.05–6 m maximum range. A 270° sensitivity potentiometer adapts reception, and the L/D control wire selects switching behavior, defaulting to light switching when open. Response is no more than 0.5 ms with resistive load, with 1,000 Hz switching at a 1:1 ratio. The IP67 nickel-plated brass/PC housing has an M12 four-pin connector; two fastening nuts are included.

Polarized M18 retro-reflective sensor with one NPN output, 1,000 Hz switching, M12 four-pin connection, P250 reflector and two fastening nuts.

Key Features

  • Polarized retro-reflective detection with dual-lens minimum-distance optics
  • Axial M18 ×1 cylindrical housing; 70.2 mm housing length
  • PL80A: 0.05–6 m sensing; 0.05–7 m maximum
  • Supplied P250: 0.05–4.5 m sensing; 0.05–6 m maximum
  • 645 nm red LED; Ø400 mm spot at 6 m
  • 270° sensitivity potentiometer
  • One NPN output; light/dark selection via control wire; ≤100 mA
  • ≤0.5 ms response with resistive load; 1,000 Hz at 1:1 light/dark ratio
  • 10–30 V DC; M12 four-pin male connector
  • IP67 nickel-plated brass/PC housing, PMMA optics and two included fastening nuts

Use the supplied P250 reflector for 0.05–4.5 m sensing and route light/dark selection through the control wire to suit external machine logic.

Technical Specification Matrix

ParameterValue
Functional principlePolarized photoelectric retro-reflective sensor; dual-lens system with minimum reflector distance
Sensing range0.05–6 m with PL80A reflector
Maximum sensing range0.05–7 m with PL80A reflector
P250 / PL40A / PL50A / C110A range0.05–4.5 m sensing; 0.05–6 m maximum
PL30A / PL31A range0.05–3.5 m sensing; 0.05–4.5 m maximum
PL20A range0.05–2.3 m sensing; 0.05–3 m maximum
P45 range0.05–1.8 m sensing; 0.05–2.2 m maximum
Diamond Grade tape range0.1–1.4 m sensing; 0.1–1.8 m maximum
Light sourceVisible red LED; wavelength 645 nm
LED average service life100,000 hours at ambient temperature +25 °C
Light spot sizeØ400 mm at 6 m
Additional spot sizesØ70 mm at 1 m; Ø140 mm at 2 m; Ø200 mm at 3 m; Ø270 mm at 4 m
Focus / angle of dispersionApproximately 4.5°
Adjustment270° sensitivity potentiometer
Polarizing filterProvided
Digital outputOne NPN switching output; ≤100 mA
Switching modeLight/dark switching via L/D control wire; wire open = light switching L.ON
NPN signal voltage HIGH/LOWApproximately supply voltage / <1.8 V
Response time≤0.5 ms with resistive load
Switching frequency1,000 Hz at light/dark ratio 1:1
Power supply10–30 V DC; limit values in a short-circuit-protected network with maximum 8 A
Ripple±10%; supply tolerances must not be exceeded
Current consumption30 mA without load
Protection classIII
Circuit protectionA: supply reverse-polarity protection; B: inputs and output reverse-polarity protection; D: output overcurrent and short-circuit protection
ConnectionM12 four-pin male connector
Pin assignment1 BN=brown L+; 2 WH=white L/D; 3 BU=blue M; 4 BK=black Q (CD-087)
HousingCylindrical metal design; nickel-plated brass and PC
Mounting threadM18 ×1
Optical axisAxial
Housing length70.2 mm
Optics materialPMMA plastic
IP ratingIP67
Items suppliedP250 reflector and two fastening nuts
Fastening nutsMetal; 24 mm across flats
IndicatorsOrange: switching output; green: strength indicator
Operating temperature−25 to +55 °C
Storage temperature−40 to +70 °C
UL fileNRKH2.E300503 & NRKH8.E300503
MTTFD2,024 years
DCavg0%
Physical Weight (kg)0.047

Industrial Applications

1. Counting separated opaque cartons across a conveyor

A conveyor can place the sensor and P250 reflector on opposite sides of an opaque-carton path within the P250 sensing range. Each carton blocks the returned beam and changes the NPN state for an external counter. Sensitivity adjustment establishes the installed received-light condition, and commissioning checks full beam coverage, carton gaps and timing against the documented response and switching limits.

Problem Solved

Beam interruption supplies carton-passage events to external counting logic without requiring returned light from each carton surface, supporting counting across the defined conveyor path.

Carton counter P250 supplied 1,000 Hz

2. Monitoring continuity of an opaque sheet feed

A sheet-feeding station can place the returned beam across the expected path of opaque material. A break or runout clears the beam, and the L/D control wire selects the switching behavior used by external feed logic. The installation uses the reflector-specific sensing range and verifies that the actual sheet fully interrupts the beam throughout normal movement.

Problem Solved

A sustained change in returned light provides external feed logic with a material-continuity reference, helping identify a break or runout along the monitored sheet path.

Sheet continuity L/D control Retro-reflective optics

3. Monitoring accumulation at a conveyor transfer

At a conveyor transfer, the sensor can monitor an opaque load crossing the beam to a reflector at the receiving position. External transfer logic evaluates signal duration to distinguish passing loads from sustained occupancy. The threaded M18 housing and fastening nuts position the axial beam, while the NPN output and control-wire switching selection connect the optical condition to the transfer sequence.

Problem Solved

A persistent blocked-beam condition helps external transfer logic recognize downstream occupancy and coordinate upstream release, using signal duration to distinguish accumulation from normal passage.

Transfer accumulation M18 mounting NPN signal
