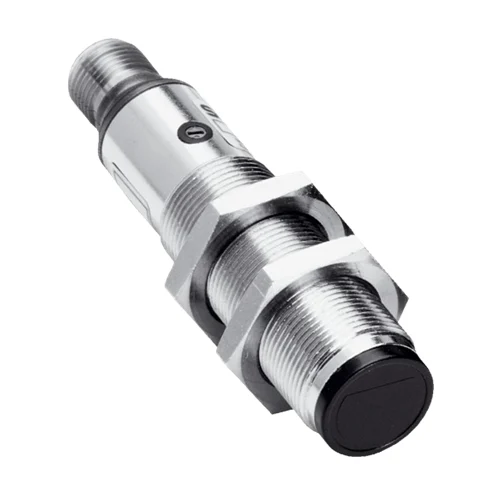

SICK 6013254 VTE18-4N4240 NPN Infrared Diffuse Sensor

USD 89.96

VTE18-4N4240 offers 5–350 mm reference-white sensing, infrared LED light, NPN light/dark selection, 270° adjustment and M12 connection.

SKU SICK-6013254 Category
SICK V18

SICK VTE18-4N4240 NPN Infrared Diffuse Sensor

BrandSICK
Model IdentifierVTE18-4N4240
Official Part Number6013254

Technical Overview

The SICK VTE18-4N4240 is an energetic photoelectric proximity sensor with axial infrared LED optics and an M18 ×1 cylindrical nickel-plated brass housing. It provides 5–350 mm sensing and 5–400 mm maximum range on 90% remission reference white; 6% remission black instead has 5–170 mm sensing and 5–200 mm typical maximum range. A 270° potentiometer sets sensitivity, while a single NPN output supports light/dark selection through the control wire; leaving that wire open selects light switching. Response is no more than 2 ms with resistive load, with 250 Hz switching at a 1:1 light/dark ratio. The 10–30 V DC device connects through an M12 four-pin male connector and has PMMA optics, a yellow signal-strength LED and IP67 protection.

Axial infrared energetic sensor with 5–350 mm reference-white sensing, adjustable sensitivity, NPN light/dark control and M12 four-pin male connector.

Key Features

  • Energetic photoelectric proximity sensing; axial infrared LED optics
  • 5–350 mm sensing; 5–400 mm maximum on 90% remission white
  • 6% remission black: 5–170 mm sensing, 5–200 mm typical maximum
  • Ø20 mm light spot at 400 mm; approximate 2.8° dispersion
  • 270° sensing-range potentiometer
  • Single NPN output; L/D control wire open selects light switching
  • ≤2 ms response with resistive load; 250 Hz at 1:1 light/dark ratio
  • 10–30 V DC; 30 mA without load; output current ≤100 mA
  • M18 ×1 nickel-plated brass housing; M12 four-pin male connector
  • PMMA optics, yellow signal-strength LED, IP67 and −25 to +70 °C operation

Detect reflected infrared light from a target and use adjustable sensitivity with control-wire light/dark selection to define the NPN event for external machine logic.

Technical Specification Matrix

ParameterValue
Functional principleEnergetic photoelectric proximity sensing
Optical axisAxial
Housing designCylindrical; M18 ×1 thread
Housing axial extent78 mm
Sensing range5–350 mm on 90% remission reference white
Maximum sensing range5–400 mm on 90% remission reference white, DIN 5033
Black reference-target ranges5–170 mm sensing; 5–200 mm typical maximum on 6% remission black
Light sourceInfrared LED
Average LED service life100,000 h at TU=+25 °C
Light spot sizeØ20 mm at 400 mm
Angle of dispersionApproximately 2.8°
AdjustmentSensing-range potentiometer, 270°
Switching outputSingle NPN output
Switching modeLight/dark switching via L/D control wire; open wire selects light switching
Output current≤100 mA
Response time≤2 ms signal transit time with resistive load
Switching frequency250 Hz at 1:1 light/dark ratio
Power supply10–30 V DC, limit values
Ripple±10%; remain within supply-voltage tolerances
Current consumption30 mA without load
Protection classIII
Circuit protectionSupply and input/output reverse-polarity protection; interference suppression; output overcurrent and short-circuit protection
ConnectionM12 four-pin male connector
Wire assignmentCD-087: 1 BN=L+; 2 WH=L/D; 3 BU=M; 4 BK=Q
Housing materialNickel-plated brass
Optics materialPMMA plastic
Mounting-nut detailMetal fastening nuts: 24 mm across flats
IndicationYellow signal-strength LED
IP ratingIP67
Operating temperature−25 to +70 °C
UL fileNMFT2.E175606
Physical Weight (kg)0.12

Industrial Applications

1. Checking an insert in a repeatable assembly nest

An assembly nest can hold an opaque insert facing the axial optical field and set sensitivity with the 270° potentiometer. External inspection logic samples the NPN state during the settled inspection window. Reference-white sensing extends from 5 to 350 mm, while dark inserts use the shorter documented black-target ranges and representative surfaces establish the actual commissioned working distance.

Problem Solved

A reflected-light condition at the settled nest gives external inspection logic an insert-present reference, helping detect a missing component before the next assembly operation.

Insert inspection 270° adjustment NPN switching

2. Counting separated opaque features on a feed guide

A feed guide can carry separated opaque features through the axial optical field and send NPN transitions to an external counter. The 250 Hz rating and response no greater than 2 ms define the sensor timing basis. Setup establishes actual surface return, feature coverage and spacing so consecutive features produce distinct output events within the selected sensitivity and working distance.

Problem Solved

Distinct reflected-light transitions provide external counting logic with feature-passage events, supporting production tracking from a sensor mounted on one side of the feed guide.

Feature counting 250 Hz Axial optics

3. Recognizing a load that remains at a transfer point

A transfer point can present a defined opaque load surface to the adjusted sensing zone and use the NPN state as an occupancy input. External control times that condition relative to the normal clearing sequence. Light/dark selection adapts the state convention, while darker surfaces follow the shorter black-target reference ranges and commissioning checks background return against the actual sensitivity setting.

Problem Solved

A persistent load-present condition gives external transfer logic an occupancy reference, helping coordinate upstream release when the monitored load has not cleared as expected.

Transfer occupancy External timing Light/dark control
