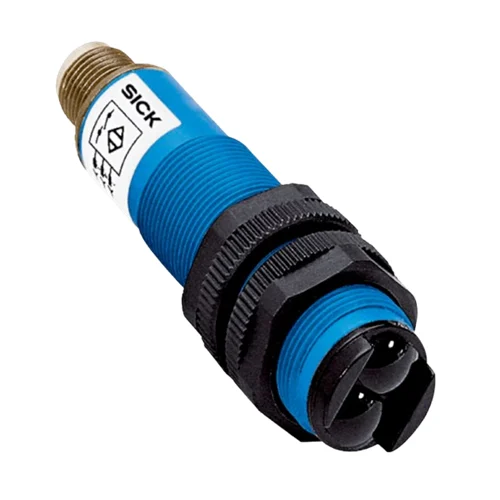

SICK 6013306 VTE18-4N4612 NPN Infrared Diffuse Sensor

USD 93.86

VTE18-4N4612 offers 5–350 mm reference-white sensing, infrared LED light, NPN light/dark selection, 250 Hz switching and 2 m PVC cable.

SKU SICK-6013306 Category
SICK V18

SICK VTE18-4N4612 NPN Infrared Diffuse Sensor

BrandSICK
Model IdentifierVTE18-4N4612
Official Part Number6013306

Technical Overview

The SICK VTE18-4N4612 is an energetic photoelectric proximity sensor with axial optics and an M18 × 1 threaded cylindrical housing. Its infrared LED evaluates light reflected by the target, providing 5–350 mm sensing range and 5–400 mm maximum range on 90% remission reference white. The sensing configuration has no local range adjustment. The single NPN output supports light/dark selection through the control wire; leaving it open selects light switching. Response is no more than 2 ms with a resistive load, with 250 Hz switching at a 1:1 light/dark ratio. The 10–30 V DC device uses a 2 m four-wire PVC cable, PBT/PC plastic housing, PMMA optics and IP67 protection.

Infrared energetic diffuse sensor with 5–350 mm reference-white sensing, NPN light/dark control and 2 m four-wire PVC cable.

Key Features

  • Energetic photoelectric proximity sensing; axial optical axis
  • 5–350 mm sensing; 5–400 mm maximum range on 90% remission white
  • Infrared LED; Ø20 mm at 400 mm; approximate dispersion angle 2.8°
  • No local sensing-range adjustment
  • Single NPN output; L/D control wire open selects light switching
  • ≤2 ms response with resistive load; 250 Hz at 1:1 light/dark ratio
  • M18 × 1 cylindrical housing; 2 m four-wire PVC cable
  • 10–30 V DC; 30 mA without load; output current ≤100 mA
  • PBT/PC plastic housing; PMMA optics; yellow signal-strength LED
  • IP67; −25 to +70 °C operation

Detect reflected-light target events in an M18 threaded installation and feed NPN signals with control-wire light/dark selection to external machine logic.

Technical Specification Matrix

ParameterValue
Functional principleEnergetic photoelectric proximity sensor
Optical axisAxial
Sensing range5–350 mm on 90% remission reference white
Maximum sensing range5–400 mm on 90% remission reference white, DIN 5033
Black reference-target ranges5–170 mm sensing; 5–200 mm typical maximum on 6% remission black
Light sourceInfrared LED
Light spot sizeØ20 mm at 400 mm
Average LED service life100,000 h at +25 °C
Angle of dispersionApprox. 2.8°
AdjustmentNone
Switching outputSingle NPN output
Switching modeLight/dark switching, selected through the L/D control wire; open wire selects light switching
Output current≤100 mA
Response time≤2 ms signal transit time with resistive load
Switching frequency250 Hz at 1:1 light/dark ratio
Power supply10–30 V DC, limit values
Ripple±10%; remain within supply-voltage tolerances
Current consumption30 mA without load
Connection2 m four-wire PVC cable; do not bend cable below 0 °C
Wire assignmentCD-089: BN=L+; BU=M; BK=Q; WH=L/D
Circuit protectionSupply and input/output reverse-polarity protection; interference suppression; output overcurrent and short-circuit protection
Protection classIII
Mounting threadM18 × 1
Housing length63.6 mm
Housing materialPBT/PC plastic
Optics materialPMMA plastic
Mounting-nut detail22 mm-across-flats plastic
IndicationYellow LED, signal strength
IP ratingIP67
Operating temperature−25 to +70 °C
UL fileNMFT2.E175606
Conductor cross-section0.14 mm²
Cable diameterØ5 mm
Physical Weight (kg)0.1

Industrial Applications

1. Checking a component at an assembly position

An assembly fixture can present an opaque component at the installed sensing position and send its NPN signal to external sequencing logic. The optical sensing function reports the presented target, while commissioning checks actual surface remission, working distance and placement tolerance against the documented sensing range. The controller samples the resulting state after the fixture settles before requesting the next machine operation.

Problem Solved

A target-present signal gives external sequencing logic a component-position condition, helping coordinate the following assembly operation after the expected part reaches the monitored fixture location.

Fixture position Reflected-light signal NPN

2. Counting separated components passing a fixed point

A feed track can move separated opaque components through the optical sensing zone and supply NPN transitions to an external counter. Setup checks actual target remission, distance, spacing and transit speed against the documented sensing range, response time and switching frequency. The installed geometry gives each component a distinct optical presentation so that counting logic can recognize successive passages.

Problem Solved

Distinct target passages provide external counting logic with component events, helping track separated parts moving through one fixed sensing point without mechanical contact.

Part counting Response timing NPN

3. Timing material occupancy at a feed chute

A feed chute can present its expected opaque material surface within the sensing range and send the NPN state to external timing logic. The controller measures how long material remains at the monitored point and compares that duration with the feed sequence. Commissioning checks representative material surfaces, installed distance and the unloaded chute condition to establish a distinct material-present signal.

Problem Solved

A sustained material signal gives external timing logic an occupancy reference, helping distinguish brief passages from material that remains at the monitored feed-chute position.

Chute occupancy External dwell timer NPN
