1. Counting separated thin opaque flags

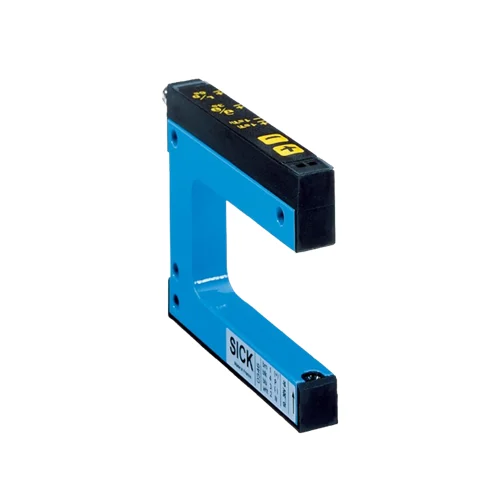

A feed mechanism can move separated opaque flags through the 2 mm fork opening and route the selected PNP or NPN output to an external counter. The 0.2 mm minimum detectable object states the small-target capability, while the opposed optical elements are held in one aluminum housing. Setup validates actual motion timing and the external counter input after stationary teaching.
Problem Solved
Individual beam interruptions give external counting logic flag-passage events, helping count separated thin targets using opposed optical elements already aligned within the fork housing.
Thin-flag count
2 mm fork
0.2 mm target
2. Registering opaque label gaps on a carrier web
A labeling mechanism can pass an opaque label web through the fork and use label-to-gap transitions as a reference for external feed control. Two-point teaching samples the substrate and label with the machine stopped, then plus/minus adjustment refines the threshold. Light/dark selection sets the required signal behavior, and the key lock protects the established setting against unintended button operation.
Problem Solved
A taught label-to-substrate optical transition provides an external feed-registration event, helping the labeling controller advance successive opaque labels using the actual material contrast.
Label registration
Two-point teach
Key lock
3. Monitoring a material edge against a fixed lateral threshold
A web-handling station can locate the optical axis across a fixed edge threshold so lateral material movement blocks or clears the beam. The 42 mm fork depth provides access inward from the material edge, while the 2 mm opening defines the available passage. External guiding logic reads the selected PNP or NPN state after stationary teaching establishes the two optical conditions for the actual material.
Problem Solved
A fixed optical threshold converts lateral edge movement into a switching condition for external guiding logic, helping identify when the web crosses the installed reference.
Web-edge threshold
42 mm depth
External guiding
