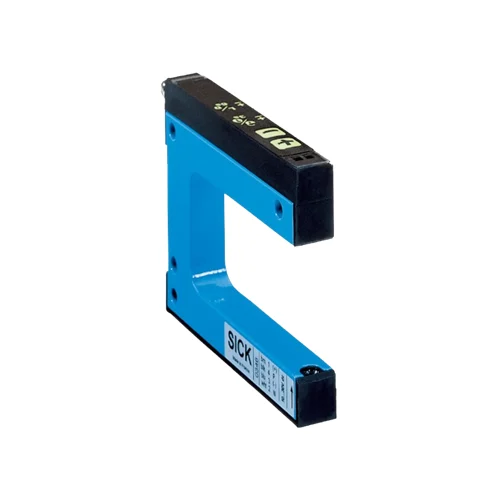

SICK 6028432 WF50-40B410 PNP/NPN Infrared Fork Sensor

USD 246.22

WF50-40B410 offers a 50 mm fork width, 42 mm depth, 0.2 mm minimum detectable object, 10 kHz switching, PNP/NPN outputs and M8 connection in IP65 aluminum.

SKU SICK-6028432 Category
SICK WF

SICK WF50-40B410 PNP/NPN Infrared Fork Sensor

BrandSICK
Model IdentifierWF50-40B410
Official Part Number6028432

Technical Overview

The SICK WF50-40B410 is an optical fork sensor with a 50 mm fork width and 42 mm fork depth. An infrared LED establishes the detection path within the aligned fork, with a specified minimum detectable object of 0.2 mm and support for label detection. Plus/minus buttons adjust sensitivity, select light/dark switching and operate the key lock; this variant has no teach-in mode. Separate PNP and NPN outputs connect through an M8 four-pin male connector. Switching frequency is 10 kHz, response is no more than 100 µs and response-time stability is ±20 µs. The IP65 aluminum housing operates from 10–30 V DC, with an ambient operating range of −20 to +60 °C.

Infrared fork sensor with 50 mm opening, 42 mm depth, 0.2 mm minimum detectable object, separate PNP/NPN outputs and plus/minus sensitivity controls.

Key Features

  • Optical infrared-LED detection within a 50 mm fork opening
  • 42 mm fork depth; minimum detectable object 0.2 mm
  • Manufacturer specifies label-detection capability
  • Plus/minus sensitivity adjustment, light/dark selection and key lock
  • No teach-in mode on the B410 variant
  • Separate PNP and NPN switching outputs; 100 mA maximum output current
  • 10 kHz switching; response ≤100 µs; stability ±20 µs; jitter 40 µs
  • 10–30 V DC supply; 40 mA current consumption; 100 ms initialization
  • M8 four-pin male connector; aluminum housing; IP65
  • −20 to +60 °C operation; do not bend the connection cable below 0 °C

Adjust the aligned infrared fork for small-object or label detection and deliver separate PNP and NPN signals to external machine control.

Technical Specification Matrix

ParameterValue
Functional principleOptical fork detection
Fork width50 mm
Fork depth42 mm
Light sourceInfrared LED
Minimum detectable object0.2 mm
Label detectionYes
AdjustmentPlus/minus buttons: sensitivity, light/dark switching and key lock
Teach-in modeNot provided
Switching outputSeparate PNP and NPN outputs
Switching modeLight/dark switching, selectable by button
NPN output voltageHIGH approximately supply voltage; LOW ≤2 V
Output current100 mA maximum
Switching frequency10 kHz
Response time≤100 µs
Response-time stability±20 µs
Jitter40 µs
Power supply10–30 V DC
Ripple<10%
Current consumption40 mA
Initialization time100 ms
Protection classIII; reference voltage 50 V DC
Circuit protectionSupply connections reverse-polarity protected; output Q short-circuit protected; interference pulse suppression
ConnectionM8 four-pin male connector
Pin assignmentCD-086: 1 BN=L+; 2 WH=NPN output; 3 BU=M; 4 BK=PNP output
Mounting holesØ4.2 mm
Housing materialAluminum
IndicatorsYellow switching-output/function indicator; red function indicator
Operating temperature−20 to +60 °C; do not bend connection cable below 0 °C
Storage temperature−30 to +80 °C
Ambient light immunity≤10,000 lx
Shock resistanceEN 60068-2-27
IP ratingIP65
MTTFD97 years
DCavg0%
UL fileNRKH.E191603

Industrial Applications

1. Counting small parts in a guided feed path

A parts feeder can guide separated opaque components through the fork opening so each crosses the optical axis. The 0.2 mm minimum detectable object and sensitivity buttons support setup for small parts, while 10 kHz switching and response no greater than 100 µs define the timing limits. External counting logic reads the suitable PNP or NPN output as each part passes.

Problem Solved

The fixed sender-to-receiver alignment turns individual beam interruptions into count events, helping external feed-control logic track passing components without mounting and aligning two separate sensor bodies.

Small-part count 0.2 mm MDO 10 kHz

2. Registering labels on a backing web

A labeling machine can pass a suitable label-and-backing web through the 50 mm fork opening with the optical axis crossing the registration track. The manufacturer specifies label detection, and plus/minus sensitivity adjustment establishes the contrast condition for the actual material. Light/dark selection adapts the resulting event polarity, while external registration logic uses the output transitions to time the feed sequence.

Problem Solved

A repeatable label-transition signal gives external registration logic a reference for advancing the backing web, supporting label positioning when the actual label and carrier provide sufficient optical contrast.

Label registration Manual sensitivity Light/dark selection

3. Checking a seated carrier tab

A handling fixture can place a defined opaque tab inside the fork when its carrier reaches the seated position. The 42 mm fork depth allows the optical axis to reach the intended tab track, and selectable light/dark switching sets the machine input polarity. External sequencing logic samples the signal after the carrier settles, with the key lock preserving the adjusted sensitivity during use.

Problem Solved

An optical tab-position reference helps external sequencing logic distinguish the seated carrier from an empty or displaced presentation, supporting the next handling step without a mechanical contact switch.

Carrier seating 42 mm depth Key lock
