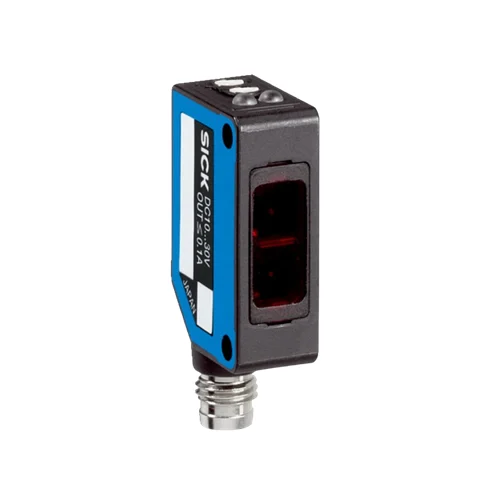

SICK 6030708 WL100L-F1131 PNP Laser Retro-Reflective Sensor

USD 190.06

WL100L-F1131 offers 0.08–10 m P250F sensing, a 650 nm Class 1 laser, single PNP light/dark output, 2,000 Hz switching and a 2 m PVC cable.

SKU SICK-6030708 Category
SICK W100 Laser

SICK WL100L-F1131 PNP Laser Retro-Reflective Sensor

BrandSICK
Model IdentifierWL100L-F1131
Official Part Number6030708

Technical Overview

The SICK WL100L-F1131 is a polarized dual-lens laser retro-reflective sensor requiring a minimum reflector distance. It provides 0.08–10 m sensing with the supplied P250F reflector, with 0.08–12 m maximum range specified separately. The 650 nm Class 1 laser works with a 270° sensitivity potentiometer and a separate light/dark rotary switch. A single PNP output has response below 0.25 ms with resistive load and a 2,000 Hz switching rating at a 1:1 light/dark ratio. The ABS/PC/POM housing uses PMMA optics, a 2 m three-wire PVC cable and IP65 protection. A stainless steel mounting bracket is supplied.

Polarized laser retro-reflective sensor with 0.08–10 m P250F range, single PNP light/dark output, 2,000 Hz switching and 2 m three-wire PVC cable.

Key Features

  • Polarized dual-lens retro-reflective sensing; minimum reflector distance
  • 0.08–10 m sensing; 0.08–12 m maximum with P250F
  • 650 nm visible red Class 1 laser
  • 270° sensitivity potentiometer; separate light/dark selector
  • Single PNP output; response <0.25 ms with resistive load
  • 2,000 Hz at 1:1 light/dark ratio
  • 10–30 V DC; 30 mA without load; output current ≤100 mA
  • 2 m three-wire PVC cable; ABS/PC/POM housing; PMMA optics; IP65
  • Green power indicator; orange switching-output indicator
  • BEF-W100-A stainless steel 1.4301/304 mounting bracket and P250F reflector supplied

Adjust a polarized laser reflector path and choose the PNP light/dark state locally, with a P250F reflector and mounting bracket supplied.

Technical Specification Matrix

ParameterValue
Functional principlePolarized dual-lens retro-reflective photoelectric sensing
Sensing range0.08–10 m with P250F
Maximum sensing range0.08–12 m with P250F
Light sourceVisible red laser; 650 nm
Laser class1
Average laser service life50,000 h at +25 °C
AdjustmentSensitivity potentiometer, 270°
Switching outputSingle PNP
Switching modeLight/dark switching selected by separate rotary switch
PNP signal HIGH/LOWSupply voltage −1.8 V / approximately 0 V
Output current≤100 mA
Response time<0.25 ms signal transit time with resistive load
Switching frequency2,000 Hz at 1:1 light/dark ratio
Power supply10–30 V DC; short-circuit-protected network, maximum 8 A
Ripple±10%; remain within supply-voltage tolerances
Current consumption30 mA without load
Connection2 m three-wire PVC cable; do not bend cable below 0 °C
Circuit protectionSupply and input/output reverse-polarity protection; output overcurrent and short-circuit protection
Housing designRectangular
Housing materialABS/PC/POM plastic
Optics materialPMMA plastic
IP ratingIP65
Items suppliedBEF-W100-A stainless steel 1.4301/304 mounting bracket; P250F reflector
MountingM3 threaded holes; 25.4 mm spacing in drawing
IndicationGreen: power on; orange: switching output active
Operating temperature−10 to +50 °C
Storage temperature−40 to +70 °C
Manufacturer special applicationsDetecting small objects; detecting objects moving at high speeds
MTTFD438 years
DCavg0%
Conductor cross-section0.18 mm²
Conductor functionsCD-043: BN=L+; BU=M; BK=Q
Reflector requirementDual-lens system with minimum reflector distance of 0.08 m
Polarizing filterProvided
Other reflector rangesPL20F: 0.08–8.5 m sensing, 0.08–10 m maximum; PL10F: 0.08–6.5 m sensing, 0.08–8 m maximum
Physical Weight (kg)0.05

Industrial Applications

1. Counting opaque packages through a reflector path

A conveyor can place the supplied P250F reflector opposite the sensor and pass separated opaque packages through the returned-light path. Each interruption changes the single PNP output for an external counter. Commissioning maintains at least 0.08 m reflector separation and checks target coverage and spacing against the response below 0.25 ms and 2,000 Hz switching specification.

Problem Solved

Returned-light interruptions give external counting electronics package-passage events, helping count separated opaque loads with the optical sender and receiver combined at one sensor location.

Package count P250F reflector 2,000 Hz

2. Monitoring continuity of an opaque material feed

An opaque web feeder can place the reflector path across a location normally occupied by the material. A broken or exhausted web clears the path and changes the selected PNP light/dark state. External monitoring times the clear condition to distinguish sustained material loss from planned gaps, with sensitivity adjustment and the local output indicator supporting setup of the optical arrangement.

Problem Solved

A sustained optical-state change gives external feed monitoring a continuity reference, helping identify a break or exhausted material before a dependent operation proceeds without the intended web.

Web continuity Light/dark selection Local adjustment

3. Timing occupancy at a conveyor handoff

A conveyor handoff can place the reflector path across its receiving location so an opaque load interrupts the beam while that location remains occupied. External control measures the interruption duration against normal transfer time. The P250F sensing range accommodates the installed separation, and the separate light/dark selector sets the output state expected by the controller.

Problem Solved

Timing a sustained beam interruption gives external handoff control an occupancy reference, helping coordinate upstream release when the receiving location remains filled.

Handoff occupancy External timer Single PNP
