SICK 1017880 WL24-2V230 Polarized Retro-reflective Sensor

USD 204.10

Red-LED retro-reflective sensor with PL80A range 0.03–15 m, NPN/PNP and light/dark selectors, alarm output, sender-off test input and M16 gland.

SKU SICK-1017880 Category
SICK W24-2

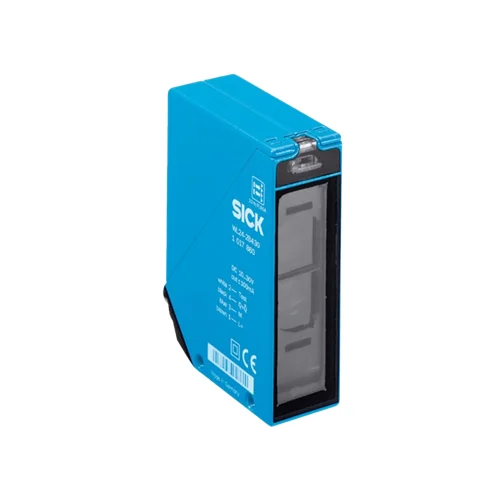

SICK WL24-2V230 Polarized Retro-reflective Sensor

BrandSICK
Model IdentifierWL24-2V230
Official Part Number1017880

Technical Overview

The SICK WL24-2V230 is a polarized, dual-lens photoelectric retro-reflective sensor that detects interruption of a beam returned by a separate reflector. The detailed range diagram specifies 0.03–15 m sensing and 0.03–22 m maximum range with PL80A. A sensitivity potentiometer, alignment sight and LED signal-strength indicator support optical setup, while separate selectors choose NPN or PNP operation and light/dark behavior. The sensor provides an alarm output and a test input that turns the sender off at 0 V. Response is no more than 500 µs with resistive load, with 1,000 Hz switching at a 1:1 light/dark ratio. The IP67 zinc die-cast housing uses PMMA optics and a terminal connection with rotatable M16 gland.

Polarized retro-reflective red-LED sensor with 0.03–15 m PL80A sensing, NPN/PNP changeover, alarm output, sender-off input and M16 gland.

Key Features

  • Polarized dual-lens retro-reflective sensing with separate reflector
  • 0.03–15 m sensing and 0.03–22 m maximum with PL80A, per detailed diagram
  • Visible red LED; Ø250 mm spot at 15 m
  • Sensitivity potentiometer, alignment sight and LED signal-strength indicator
  • NPN/PNP changeover selector and separate light/dark selector
  • Alarm output and TE sender-off input at 0 V
  • Response ≤500 µs with resistive load; 1,000 Hz at 1:1 light/dark ratio
  • 10–30 V DC; 50 mA without load; output current ≤100 mA
  • Terminal connection with M16 gland; connection rotatable by 90°
  • Zinc die-cast housing, PMMA optics and IP67; −40 to +60 °C operation

Align a reflected-light path using the local signal-strength indicator and select the NPN/PNP and light/dark output behavior for machine control.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric retro-reflective sensing; dual-lens system with minimum distance to reflector
Housing designRectangular
Sensing range0.03–15 m with PL80A, per detailed sensing-range diagram
Maximum sensing range0.03–22 m with PL80A, per detailed sensing-range diagram
Other reflector rangesPL50A and PL40A: 0.03–11 m sensing, 0.03–16 m maximum; PL30A, PL20A and Diamond Grade tape: 0.03–7 m sensing, 0.03–10 m maximum; C110A: 0.15–10 m sensing, 0.15–13 m maximum
Light sourceVisible red LED
Average LED service life100,000 h at ambient +25 °C
Light spot sizeØ250 mm at 15 m
Polarization filterProvided
AdjustmentSensitivity potentiometer
Switching outputNPN/PNP changeover selector; light/dark selector
Alarm outputProvided; terminal 3
Test inputSender off with TE at 0 V
Indicators and alignmentLED signal-strength indicator; alignment sight
Output current≤100 mA
Response time≤500 µs signal transit time with resistive load
Switching frequency1,000 Hz at 1:1 light/dark ratio
Power supply10–30 V DC; limit values in short-circuit-protected network, maximum 8 A
Ripple<5 Vpp; remain within supply-voltage tolerances
Current consumption50 mA without load
ConnectionTerminal connection with M16 gland; screw fixing and plug rotatable by 90°
Terminal assignmentCD-300: 1=L+; 2=M; 3=Alarm; 4=Q/Q inverted according to selection; 5=Test
Circuit protectionSupply reverse-polarity protection; interference suppression; output overcurrent and short-circuit protection
Protection classII; reference voltage 50 V DC
Housing materialZinc die-cast metal
Optics materialPMMA plastic
IP ratingIP67
Operating temperature−40 to +60 °C
Storage temperature−40 to +75 °C
MountingM5 threaded holes, 6 mm deep; M5 through threaded holes
UL filesNRKH.E181493 and NRKH7.E181493
MTTFD748 years
DCavg0%
Mission time20 years
Physical Weight (kg)0.33

Industrial Applications

1. Confirming an opaque load at a transfer position

A transfer station can place a PL80A reflector opposite the sensor so that an opaque load interrupts the established optical path at its intended position. External sequencing logic reads the selected switching condition after the load settles. The sensitivity potentiometer and signal-strength indicator assist alignment, with the installed separation kept inside the detailed PL80A sensing range and the minimum reflector distance observed.

Problem Solved

Beam interruption at the transfer position supplies external sequencing with a load-present condition, helping distinguish an occupied station from a clear optical path before material release.

Transfer presence PL80A reflector Selectable output

2. Counting separated cartons across a conveyor

A conveyor can pass separated opaque cartons through the sensor-to-reflector path and send output transitions to an external counter. The 1,000 Hz rating and ≤500 µs resistive-load response inform timing assessment together with carton spacing, belt speed and receiver response. NPN/PNP and light/dark selection adapt the event condition to the intended control input, while alignment establishes a clear path between cartons.

Problem Solved

Repeated beam interruptions provide external counting logic with carton-passage events, helping track separated material movement across a defined conveyor point using a single wired sensor location.

Carton counting 1,000 Hz Retro-reflective path

3. Exercising the optical path during a controlled machine check

During a controlled machine check with an unobstructed reflector path, external control can bring the test input to 0 V to turn off the sender. The controller then observes the selected switching condition and restores the sender to compare the result. This process check uses the documented TE function and configured output behavior; it does not establish a safety-rated diagnostic function.

Problem Solved

Commanding sender-off provides a repeatable optical stimulus for external process checks, helping maintenance compare the input and output response through the installed sensor connection.

Sender-off check TE to 0 V External observation
