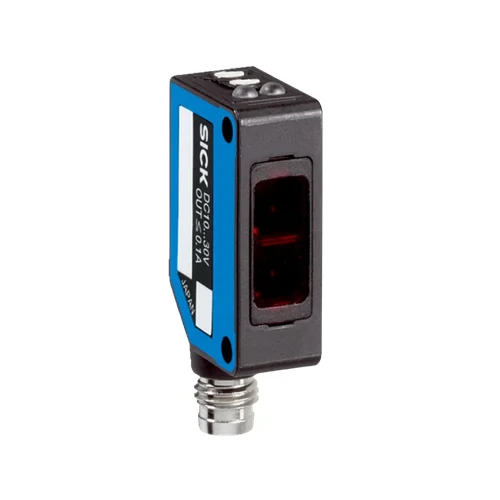

1. Checking a small presented component
A fixture can present a small component within the established reflected-light sensing region and use the PNP state as an input to external inspection logic. The laser has a 2 mm spot at 400 mm and a 1.5 mm spot at 300 mm. Setup establishes target coverage, reflectance and background separation with the sensing-range potentiometer; small spot size does not by itself guarantee detection of every small target.
Problem Solved
A localized reflected-light detection point gives external inspection logic a component-presence reference, helping identify an omitted or mispresented part at the fixture’s checked location.
Small-component check
Localized laser spot
Adjustable detection
2. Counting separated components in a feeder
A feeder can move separated components through the illuminated region and send PNP transitions to an external counter. Target surfaces are assessed using the documented reference-target ranges, while part spacing and speed are checked against the response below 0.25 ms and the 2,000 Hz specification. The single-sided optical arrangement supports installation where no opposite reflector position is available.
Problem Solved
Discrete reflected-light transitions provide external counting electronics with component-passage events, helping track feed quantities from one optical mounting side beside the process.
Feed count
2,000 Hz
Single-sided sensing
3. Detecting a lateral edge at a feed station
A feed station can position the laser spot so a laterally moving material edge enters or leaves the illuminated location. The controller uses the resulting PNP transition as a local edge event. Setup fixes sensing distance and checks surface remission, spot coverage and background response; the light/dark selector sets the signal behavior for the external sequence.
Problem Solved
A local optical edge event gives external feed control a position reference, helping coordinate a process step when the material boundary crosses the checked sensing location.
Lateral edge
Laser spot
External sequencing
