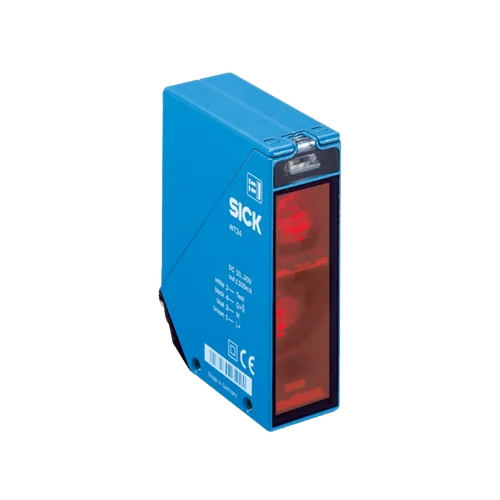

SICK 1016932 WT24-2R210 Relay Background-Suppression Sensor

USD 339.04

WT24-2R210 offers 100–2,500 mm reference-white sensing, infrared light, an isolated change-over relay, 20–250 V AC/DC supply and an M16 terminal gland.

SKU SICK-1016932 Category
SICK W24-2

SICK WT24-2R210 Relay Background-Suppression Sensor

BrandSICK
Model IdentifierWT24-2R210
Official Part Number1016932

Technical Overview

The SICK WT24-2R210 is a photoelectric proximity sensor with background suppression and an electrically isolated change-over relay. Its infrared LED supports a 100–2,500 mm sensing range on 90% remission reference white and produces an 80 mm spot at 2,500 mm. A potentiometer adjusts sensing range, while a separate selector sets light or dark operation. The 20–250 V AC/DC supply and terminal connection with M16 gland support installation in machine control systems using relay contacts. Response is no more than 10 ms and switching frequency is 10 Hz at a 1:1 light/dark ratio. The zinc die-cast housing uses PMMA optics, provides IP67 protection and operates from −40 to +60 °C.

Infrared background-suppression sensor with 100–2,500 mm reference-white range, isolated change-over relay, light/dark selector and 20–250 V AC/DC supply.

Key Features

  • Background-suppression photoelectric proximity sensing
  • 100–2,500 mm sensing and maximum range on 90% remission reference white
  • Infrared LED; Ø80 mm light spot at 2,500 mm
  • Potentiometer sensing-range adjustment and separate light/dark selector
  • Electrically isolated change-over relay output
  • Relay ratings: 4 A at 250 V AC, 4 A at 24 V DC, 0.125 A at 250 V DC
  • Response ≤10 ms; switching frequency 10 Hz at 1:1 light/dark ratio
  • 20–250 V AC/DC supply; power consumption <2 VA
  • Terminal connection with M16 gland, rotatable by 90°
  • Zinc die-cast housing, PMMA optics, IP67 and −40 to +60 °C operation

Set the background-suppression range and use isolated change-over contacts to report an object-detection condition to external machine control.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric proximity sensor with background suppression
Sensing range100–2,500 mm on 90% remission standard white, DIN 5033
Maximum sensing range100–2,500 mm on 90% remission standard white, DIN 5033
Reference-target upper limits1,300 mm on black 6% remission; 1,800 mm on gray 18% remission; 2,500 mm on white 90% remission
Light sourceInfrared LED; average service life 100,000 h at +25 °C
Light spot sizeØ80 mm at 2,500 mm
AdjustmentPotentiometer for sensing range
Switching outputElectrically isolated relay; change-over contacts
Switching modeLight/dark switching, selected using a separate selector
Relay contact ratings4 A at 250 V AC; 4 A at 24 V DC; 0.125 A at 250 V DC
UL relay ratings4 A at 250 V AC general use; 4 A at 250 V AC resistive NO; 3 A at 250 V AC resistive NC; 4 A at 24 V DC NO general use; 3 A at 24 V DC NC general use; R300/B300 for NO contacts only
Load suppressionProvide suitable spark suppression for inductive or capacitive loads
Response time≤10 ms
Switching frequency10 Hz at 1:1 light/dark ratio
Power supply20–250 V AC/DC
Power consumption<2 VA
Circuit protectionSupply connections reverse-polarity protected; interference suppression
Protection classII; rated voltage 250 V AC/DC
ConnectionTerminal connection with M16 gland; connection assembly rotatable by 90°
Terminal groupsCD-167: terminal 1=L1; terminal 2=N; terminals 3–5=change-over relay contact group
Usage categoryAC-15 and DC-13; EN 60947-1
Housing materialZinc die-cast metal
Optics materialPMMA plastic
Housing designRectangular
MountingM5 threaded hole, 6 mm deep, and M5 threaded through-hole
Alignment aidsAlignment sight and LED signal-strength indicator
IP ratingIP67
Operating temperature−40 to +60 °C
Storage temperature−40 to +75 °C
MTTFD509 years
DCavg0%
Mission time20 years
Physical Weight (kg)0.33

Industrial Applications

1. Detecting a load in front of a machine structure

A handling station can position the sensor so a presented opaque load lies in the adjusted sensing zone and a machine structure remains farther behind it. Background suppression separates the intended near surface from the more distant background. The potentiometer sets the working range, while the isolated relay reports the load condition to external sequencing logic within the documented response and contact ratings.

Problem Solved

Distance-based background rejection helps external sequencing logic distinguish the intended load from the structure behind it, supporting a load-present reference from one mounting side.

Background suppression Adjustable range Isolated relay

2. Counting separated containers at a slow conveyor

A slow conveyor can present separated opaque containers to the adjusted infrared sensing zone. External counting logic reads the relay transitions as each container passes, with conveyor speed and spacing chosen for the 10 Hz switching limit and response no greater than 10 ms. The light/dark selector establishes the desired contact-state behavior, and actual container remission determines the usable range.

Problem Solved

Relay transitions from separated container passages give external counting logic a throughput reference, supporting production counts when the transport timing and target surfaces match the sensor limits.

Slow conveyor count 10 Hz Light/dark selector

3. Requesting replenishment at a parts chute

A parts chute can aim the sensor toward the expected material surface at a chosen fill height. When opaque parts no longer occupy the adjusted detection zone, the relay state changes and external control logic can request replenishment. Background suppression limits response to farther chute surfaces, while the range potentiometer and light/dark selector adapt the sensing point and signal behavior to representative parts.

Problem Solved

A discrete material-present reference at the selected chute height supports replenishment requests before the feed path empties, reducing reliance on repeated visual checks of the parts supply.

Chute replenishment Material presence One-sided installation
