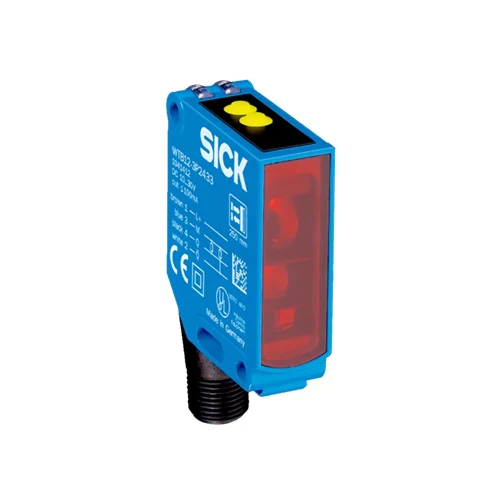

SICK 1044101 WTB12-3N1011S42 Preset NPN Background-Suppression Sensor

USD 287.30

WTB12-3N1011S42 offers preset 20–150 mm background-suppression sensing, 850 nm infrared LED, NPN light switching and a 320 mm cable with AMP connector.

SKU SICK-1044101 Category
SICK W12

SICK WTB12-3N1011S42 Preset NPN Background-Suppression Sensor

BrandSICK
Model IdentifierWTB12-3N1011S42
Official Part Number1044101

Technical Overview

The SICK WTB12-3N1011S42 is a background-suppression photoelectric proximity sensor with a preset 150 mm sensing limit and no local range adjustment. Sensing and maximum range are 20–150 mm, with the maximum specification referenced to 90% remission white. Its 850 nm infrared LED supports the target-detection function, and the single NPN output uses light switching. Response is no more than 330 µs with a resistive load, while switching frequency is 1,500 Hz at a 1:1 light/dark ratio. The metal housing has a PMMA front screen and IP66/IP67/IP69K protection. Connection uses a 320 mm PVC cable with AMP connector and 0.85 mm² conductors; supply is 10–30 V DC.

Preset 150 mm background-suppression sensor with 20–150 mm range, NPN light switching, 850 nm infrared LED and 320 mm AMP-connector cable.

Key Features

  • Background suppression; sensing limit preset to 150 mm with no local adjustment
  • 20–150 mm sensing and maximum range; maximum on 90% remission white
  • 850 nm infrared LED; average service life 100,000 h at +25 °C
  • Single NPN output with light switching; output current ≤100 mA
  • ≤330 µs response with resistive load; 1,500 Hz at 1:1 light/dark ratio
  • NPN signal HIGH approximately supply voltage; LOW <2.5 V
  • 320 mm PVC cable with AMP connector; 0.85 mm² conductors
  • 10–30 V DC; 55 mA consumption without load
  • Metal housing; PMMA front screen; IP66/IP67/IP69K
  • −40 to +60 °C operation; −40 to +75 °C storage

Use a preset 150 mm background-suppression condition to send NPN light-switching events to external inspection or counting logic without local range setting.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric proximity sensor with background suppression
Sensing range20–150 mm; preset sensing range
Maximum sensing range20–150 mm on 90% remission reference white, DIN 5033
AdjustmentNone; sensing range preset to 150 mm
Light sourceInfrared LED; 850 nm
Average LED service life100,000 h at +25 °C
Switching outputSingle NPN output
Switching modeLight switching
NPN signal HIGH/LOWApproximately supply voltage / <2.5 V
Output current≤100 mA
Response time≤330 µs signal transit time with resistive load
Switching frequency1,500 Hz at 1:1 light/dark ratio
Power supply10–30 V DC; short-circuit-protected network, maximum 8 A
Ripple<5 Vpp; remain within supply-voltage tolerances
Current consumption55 mA without load
Circuit protectionSupply reverse-polarity protection; interference suppression; output overcurrent and short-circuit protection
Protection classIII
Connection320 mm cable with AMP connector
Cable materialPVC plastic; do not bend below 0 °C
Conductor cross-section0.85 mm²
Wire assignmentCD-045: BN=L+; BU=M; BK=Q
Housing materialMetal
Front-screen materialPMMA plastic
IP ratingIP66 / IP67 / IP69K
Operating temperature−40 to +60 °C
Storage temperature−40 to +75 °C
UL filesNRKH.E181493; NRKH7.E181493
Physical Weight (kg)0.2

Industrial Applications

1. Checking a component at an assembly position

An assembly fixture can present an opaque component at the installed sensing position and send its NPN signal to external sequencing logic. The optical sensing function reports the presented target, while commissioning checks actual surface remission, working distance and placement tolerance against the documented sensing range. The controller samples the resulting state after the fixture settles before requesting the next machine operation.

Problem Solved

A target-present signal gives external sequencing logic a component-position condition, helping coordinate the following assembly operation after the expected part reaches the monitored fixture location.

Fixture position Reflected-light signal NPN

2. Counting separated components passing a fixed point

A feed track can move separated opaque components through the optical sensing zone and supply NPN transitions to an external counter. Setup checks actual target remission, distance, spacing and transit speed against the documented sensing range, response time and switching frequency. The installed geometry gives each component a distinct optical presentation so that counting logic can recognize successive passages.

Problem Solved

Distinct target passages provide external counting logic with component events, helping track separated parts moving through one fixed sensing point without mechanical contact.

Part counting Response timing NPN

3. Timing material occupancy at a feed chute

A feed chute can present its expected opaque material surface within the sensing range and send the NPN state to external timing logic. The controller measures how long material remains at the monitored point and compares that duration with the feed sequence. Commissioning checks representative material surfaces, installed distance and the unloaded chute condition to establish a distinct material-present signal.

Problem Solved

A sustained material signal gives external timing logic an occupancy reference, helping distinguish brief passages from material that remains at the monitored feed-chute position.

Chute occupancy External dwell timer NPN
