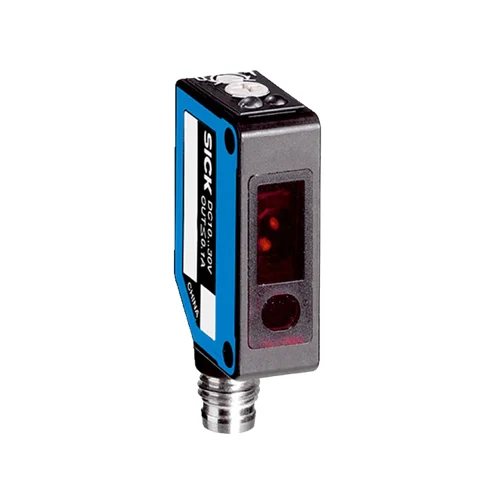

SICK 6033221 WTB8L-P2231 PNP Laser BGS Sensor

USD 259.22

Class 1 red-laser background suppression with 40–300 mm reference-white sensing, 1.5 mm spot at 300 mm, PNP output, 2,000 Hz and M8 connection.

SKU SICK-6033221 Category
SICK W8 Laser

SICK WTB8L-P2231 PNP Laser BGS Sensor

BrandSICK
Model IdentifierWTB8L-P2231
Official Part Number6033221

Technical Overview

The SICK WTB8L-P2231 is a background-suppression photoelectric sensor with a visible 650 nm Class 1 laser and a PNP switching output. Its specified range is 40–300 mm sensing and 30–300 mm maximum range on 90% remission white. A 1.5 mm spot at 300 mm supports the manufacturer’s small-object detection role, while four-turn range adjustment and a local light/dark selector adapt operation. Response is no more than 0.25 ms with resistive load, with 2,000 Hz switching at a 1:1 ratio. An M8 four-pin connector includes a sender-off test input. The IP67 ABS housing has PMMA optics, and a stainless steel BEF-W100-A mounting bracket is supplied.

Class 1 laser background-suppression sensor with 40–300 mm reference-white sensing, PNP output, 2,000 Hz switching and M8 four-pin connection.

Key Features

  • Background-suppression photoelectric proximity sensing
  • 40–300 mm sensing and 30–300 mm maximum on 90% remission reference white
  • 650 nm visible red Class 1 laser
  • Ø1.5 mm light spot at 300 mm; manufacturer lists small-object detection
  • Four-turn sensing-range potentiometer
  • One PNP output with local light/dark rotary selector
  • ≤0.25 ms response with resistive load; 2,000 Hz at 1:1 light/dark ratio
  • M8 four-pin male connector; sender-off test input TE to positive supply
  • 10–30 V DC; ABS housing, PMMA optics and IP67 protection
  • Stainless steel 1.4301/304 BEF-W100-A mounting bracket supplied

Place the 1.5 mm laser spot on a small target and adjust background-suppressed detection to provide a switching reference for external machine control.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric proximity sensor with background suppression
Sensing range40–300 mm on 90% remission reference white, DIN 5033
Maximum sensing range30–300 mm on 90% remission reference white, DIN 5033
Light sourceVisible red laser; wavelength 650 nm
Laser class1
Laser average service life100,000 hours at ambient temperature +25 °C
Light spot sizeØ1.5 mm at 300 mm
AdjustmentFour-turn sensing-range potentiometer
Manufacturer special applicationsDetecting small objects; detecting objects moving at high speeds
Test inputSender off: TE to positive supply +Vs
Digital outputOne PNP switching output
Switching modeLight/dark switching via local rotary selector
PNP signal voltage HIGH/LOWApproximately supply voltage −1.8 V / 0 V
Output current≤100 mA
Response time≤0.25 ms with resistive load
Switching frequency2,000 Hz at light/dark ratio 1:1
Power supply10–30 V DC; limit values in a short-circuit-protected network with maximum 8 A
Ripple±10%; supply tolerances must not be exceeded
Current consumption30 mA without load
ConnectionM8 four-pin male connector
Pin assignment1 BN=brown L+; 2 WH=white Test; 3 BU=blue M; 4 BK=black Q (CD-078)
Circuit protectionA: supply reverse-polarity protection; B: inputs and output reverse-polarity protection; D: output overcurrent and short-circuit protection
Housing materialABS plastic
Optics materialPMMA plastic
Mounting holesM3 threaded
IP ratingIP67
Items suppliedStainless steel 1.4301/304 mounting bracket BEF-W100-A
IndicatorsOrange: switching output; green: stability
Operating temperature−10 to +50 °C
Storage temperature−40 to +70 °C
MTTFD453 years
DCavg0%
Physical Weight (kg)0.01

Industrial Applications

1. Counting small opaque features on a moving carrier

A transport mechanism can guide separated opaque features through the laser spot at a repeatable distance. The 1.5 mm spot at 300 mm provides a documented optical footprint for assessing feature coverage, while the 2,000 Hz rating and response limit inform passage and gap timing. External counting logic reads the selected PNP switching state after commissioning with the actual targets and background.

Problem Solved

Individual feature passages provide external counting logic with discrete events, with a small laser spot helping isolate the selected feature from adjacent areas of the carrier.

Feature counting 1.5 mm spot 2,000 Hz

2. Checking a small insert against a fixture background

An assembly fixture can hold a small insert in front of a more distant fixture surface. The visible laser spot locates the detection point on the insert, and the four-turn adjustment sets the background-suppressed detection region. External inspection logic samples the PNP state with the assembly stationary, after setup assesses actual reflectance, seated distance and background separation.

Problem Solved

A small-target presence reference helps external inspection logic distinguish a loaded insert location from an empty fixture while the background remains beyond the adjusted detection region.

Insert inspection Background suppression Range adjustment

3. Monitoring continuity of a narrow opaque strip

A strip-feeding station can direct the laser at a supported narrow opaque strip, keeping the spot covered during normal feeding and a more distant background beyond the selected region. External feed logic interprets sustained absence as a possible break or runout. Setup verifies actual strip reflectance and lateral movement, and selects the appropriate local light/dark output mode.

Problem Solved

A narrow-strip presence condition gives external feed logic a continuity reference, helping detect material loss with a localized sensing spot and background-suppressed optical detection.

Strip continuity Localized spot Light/dark selector
