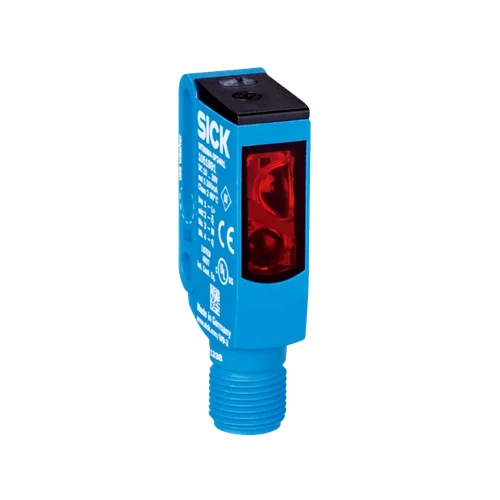

1. Counting separated cartons on a conveyor
A conveyor can present separated opaque cartons within the verified 20–200 mm range for 6% remission targets. The potentiometer establishes a detection zone ahead of the fixed background, and the complementary PNP outputs supply carton-passage transitions to external counting logic. Commissioning checks carton reflectance, spacing and transit speed against the 1,500 Hz switching specification and actual installation geometry.
Problem Solved
Object-passage transitions help an external counter register separated cartons while background suppression reduces detections from the fixed surface behind the selected working zone.
Carton counting
Background suppression
1,500 Hz
2. Detecting a break in an opaque material web
A material guide can hold an opaque web at a repeatable distance in front of a fixed background. The five-turn potentiometer places the web within the detection zone while suppressing the surface farther behind it. External process logic evaluates the complementary PNP states to detect a missing web segment, with actual reflectance and web movement checked during commissioning.
Problem Solved
A web-present condition helps external process logic detect loss of continuous material at the guide before further transport proceeds through the monitored section.
Web continuity
Opaque material
Complementary outputs
3. Flagging a carton that dwells at a transfer stop
A transfer stop can present an opaque carton inside the adjusted detection zone. External dwell logic starts a timer from the PNP detection transition and compares continued presence with the expected release interval. The sensor supplies a discrete occupied condition rather than an internal timing function, with setup accounting for target reflectance, seated gap and the suppressed background.
Problem Solved
An occupied-position reference lets external dwell logic flag a carton that remains after its release interval, supporting investigation of a blocked transfer location.
Transfer dwell
External timer
Occupied position
