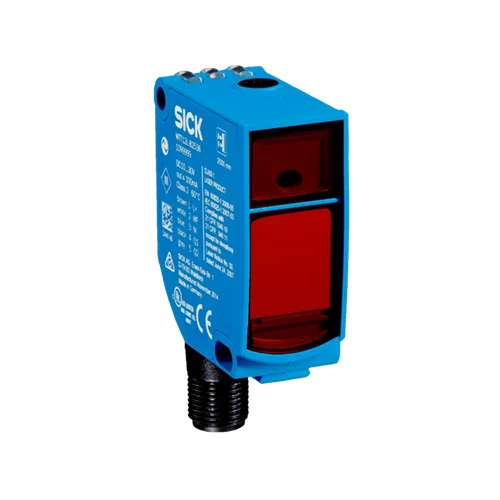

SICK 1072610 WTT12L-B2541 Time-of-Flight Sensor

USD 361.66

WTT12L-B2541: 1,800 mm upper sensing limit, complementary outputs, push-pull PNP/NPN, Class 1 red laser and M12 connection.

SKU SICK-1072610 Category
SICK WTT12 PowerProx

SICK WTT12L-B2541 Time-of-Flight Sensor

BrandSICK
Model IdentifierWTT12L-B2541
Official Part Number1072610

Technical Overview

The SICK WTT12L-B2541 is a visible-red-laser photoelectric proximity sensor using optical time-of-flight with background suppression. Its adjustable sensing range is 100–1,800 mm on 90% remission reference white, while the maximum range is 50–1,800 mm on 6–90% remission targets. The 658 nm Class 1 source produces a 12 mm spot at 1,800 mm. One four-turn potentiometer sets a single threshold with complementary Q and inverted-Q push-pull outputs. Response is no more than 16.7 ms with a resistive load, with 30 Hz switching at a 1:1 light/dark ratio. The IP67 VISTAL housing has PMMA optics and an M12 five-pin male connector. The sender-off input supports external machine integration.

Class 1 red-laser background-suppression sensor with 100–1,800 mm adjustable sensing, one threshold and complementary outputs, push-pull PNP/NPN and an M12 five-pin male connector.

Key Features

  • Optical time-of-flight proximity sensing with background suppression
  • 100–1,800 mm adjustable sensing range; 90% reference-white target
  • 50–1,800 mm maximum range on 6–90% remission targets
  • 658 nm visible red Class 1 laser; Ø12 mm spot at 1,800 mm
  • 1 four-turn potentiometer; one switching threshold
  • Two complementary push-pull PNP/NPN outputs, Q and Q inverted; one switching threshold
  • ≤16.7 ms resistive-load response; 30 Hz at 1:1 light/dark ratio
  • M12 five-pin male connector; sender-off input
  • 10–30 V DC; 70 mA without load at 24 V; <300 ms initialization
  • VISTAL housing and PMMA optics; IP67; −35 to +50 °C with current derating

Set a sensing-distance threshold with four-turn adjustment and report complementary target states to external control.

Technical Specification Matrix

ParameterValue
Functional principlePhotoelectric proximity sensing with background suppression and optical time-of-flight
Housing designRectangular
Sensing range100–1,800 mm, adjustable on 90% remission reference white, DIN 5033
Maximum sensing range50–1,800 mm on 6–90% remission targets, based on standard white DIN 5033
Background separationRequired object-to-background distance depends on target distance and remission, as shown in the manufacturer characteristic curve
Light sourceVisible red laser; 658 nm
Laser classClass 1, IEC 60825-1 / CDRH 21 CFR 1040.10 and 1040.11
Average laser service life100,000 h at +25 °C
Light spot sizeØ12 mm at 1,800 mm
Adjustment1 four-turn sensing-range potentiometer
Digital outputsTwo complementary push-pull PNP/NPN outputs, Q and Q inverted; one switching threshold
Switching modeLight/dark switching through complementary outputs
Control inputSender-off input
Output current≤100 mA; maximum 50 mA from ambient +45 °C
Response time≤16.7 ms, signal transit time with resistive load
Switching frequency30 Hz at 1:1 light/dark ratio
Power supply10–30 V DC; short-circuit-protected network, maximum 8 A
Ripple<5 Vpp; remain within supply-voltage tolerances
Current consumption70 mA without load at 24 V
Circuit protectionSupply, input and output reverse-polarity protection; interference suppression
Protection classIII
Initialization time<300 ms
Warm-up time<15 min; warm-up necessary below −10 °C
ConnectionM12 five-pin male connector
Housing materialVISTAL plastic
Optics materialPMMA plastic
IP ratingIP67
Operating temperature−35 to +50 °C; output current limited to 50 mA from +45 °C
Storage temperature−40 to +70 °C
Mounting holesØ4.2 mm
IndicationGreen power-on LED; yellow received-light indicators
MTTFD133 years
DCavg0%
Mission time20 years
Pin assignmentCD-282: 1 BN=L+; 2 WH=Q inverted; 3 BU=M; 4 BK=Q; 5 GY=sender off
Physical Weight (kg)0.048

Industrial Applications

1. Counting separated opaque loads on a conveyor

A conveyor can present separated opaque loads within the adjusted sensing zone and send push-pull transitions to external counting logic. Optical time-of-flight with background suppression separates the presented load from a farther background when the installed geometry provides the required clearance. Commissioning evaluates actual remission, target spacing and speed against the 30 Hz switching rating and 16.7 ms resistive-load response.

Problem Solved

Load-passage transitions give external counting logic a discrete event stream, helping track separated articles from one mounting side while using an adjusted background-suppression zone.

Conveyor counting 30 Hz Background suppression

2. Confirming a load on a presented carrier

A handling station can present a carrier so that its expected opaque load lies within the adjusted sensing zone and an empty carrier surface remains beyond it. The potentiometer sets the threshold using representative loaded and empty presentations. External inspection logic samples the complementary output condition after motion settles, accounting for remission-dependent background separation and the documented response.

Problem Solved

An adjusted load-present condition helps external inspection logic distinguish a loaded carrier from an empty presentation, supporting an omitted-load check before the next handling operation.

Carrier inspection Complementary outputs One distance threshold

3. Checking a sensing channel with controlled sender suppression

During a planned machine check, external control can apply the sender-off input while a representative target remains at a defined position. The controller observes the corresponding switching condition and then releases the input to compare the restored target response. This controlled optical change is coordinated with the machine sequence and evaluated using the documented response and initialization conditions.

Problem Solved

Controlled sender suppression gives maintenance logic an observable optical-state change, helping compare the sensor channel’s output response during a planned check at a defined machine position.

Controlled channel check Sender-off input External observation
