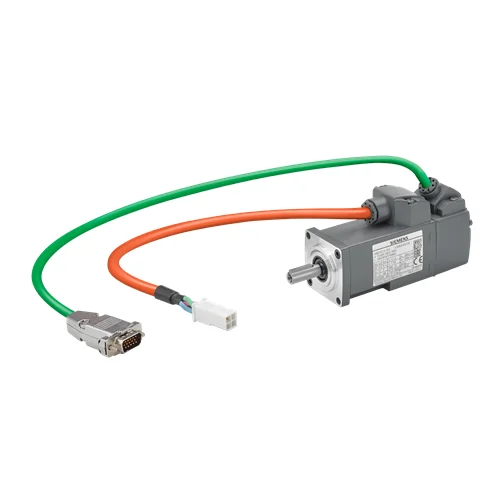

Siemens 1FL6024-2AF21-1LB1 Servomotor 0.1kW 230V

Technical Overview

0.1 kW, 3000 rpm servomotor with 0.32 Nm static/rated torque. Features 20-bit absolute encoder, holding brake, and IP65 protection for precise control.

Key Features

Operating voltage: 230 V 3 AC
Rated power (PN): 0.1 kW
Rated speed (NN): 3000 rpm
Static torque (M0): 0.32 Nm
Rated torque (MN): 0.32 Nm
Shaft height: 20 mm
Encoder type: Absolute 20-bit (12-bit multi-turn)
Shaft type: Feather key Tolerance N
Integrated holding brake
Degree of protection: IP65 with sealing ring
Compatible with SINAMICS V90 converters

Technical Specification Matrix

Parameter	Value
Operating Voltage	230 V 3 AC
Rated Power (PN)	0.1 kW
Rated Speed (NN)	3000 rpm
Static Torque (M0)	0.32 Nm
Rated Torque (MN)	0.32 Nm
Shaft Height	20 mm
Encoder	Absolute 20-bit (12-bit multi-turn)
Shaft Key	Feather key Tolerance N
Brake	Holding brake
Degree of Protection	IP65 with sealing ring
Compatibility	SINAMICS V90 converters
Physical Weight (kg)	0.9
Dimensions L x W x H (cm)	31.6 x 18.2 x 17

Industrial Applications

1. Precision Conveyor Positioning Systems

This servomotor is ideal for automated conveyor systems requiring precise control over product placement or indexing. Its 20-bit absolute encoder ensures exact positioning, while the 0.32 Nm torque and 3000 rpm speed provide responsive motion for lightweight loads. The IP65 protection makes it suitable for environments where dust or water spray might occur.

Problem Solved

Precisely starting, stopping, and positioning items on a conveyor in environments prone to dust or moisture, ensuring product alignment and preventing jams.

Conveyor AutomationMaterial HandlingAbsolute PositioningIP65 ProtectionIndexing Accuracy

2. Small Scale Robotics and Pick-and-Place Machines

For compact robotic arms or pick-and-place units, this servomotor offers the necessary accuracy and reliability. The 20-bit absolute encoder provides ultra-fine positional feedback crucial for delicate manipulation. The integrated holding brake ensures the robotic arm maintains its position even when stationary or during power-off events, and the IP65 rating protects against environmental factors.

Problem Solved

Achieving highly repeatable and precise movements for lightweight robotic applications, with secure holding of positions and protection against industrial contaminants.

RoboticsPick-and-PlaceHigh-Precision MotionHolding BrakeAbsolute Encoder

3. Automatic Tool Changers in CNC Machines

The Siemens 1FL6024-2AF21-1LB1 servomotor is well-suited for automatic tool changer mechanisms in CNC machines. Its 0.32 Nm torque and 3000 rpm enable rapid and accurate tool indexing. The 20-bit absolute encoder guarantees precise tool registration, vital for machining operations. Furthermore, its IP65 rating provides excellent resistance against coolant splashes and metal chips typically found in a CNC machining environment.

Problem Solved

Ensuring fast, accurate, and reliable tool changes in CNC machines, with robustness against coolant and debris.

CNC MachiningTool ChangerPrecision IndexingCoolant ResistanceAutomated Manufacturing
