12 Mbit/s PROFIBUS bus connector with inclined cable outlet, integrated terminating resistor, PG socket, and IP20 enclosure.

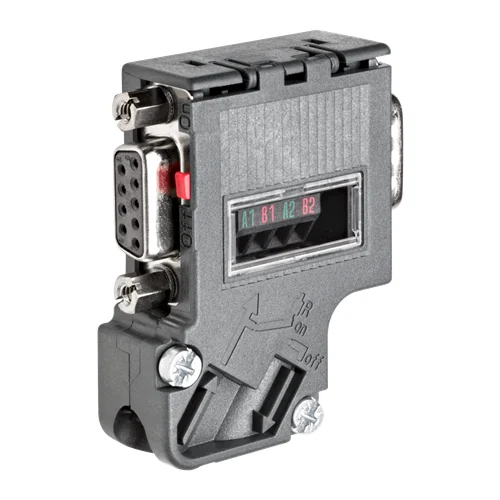

SIMATIC DP PROFIBUS bus connector for connecting PROFIBUS nodes up to 12 Mbit/s. It features an inclined cable outlet, integrated terminating resistor with isolating/isolation function, and a PG receptacle for programming/service access. Official Siemens documentation identifies the enclosure material as plastic and shows a compact fieldbus connector form factor for industrial network terminations.
| Parameter | Value |
|---|---|
| Protocol / interface | PROFIBUS |
| Maximum data rate | 12 Mbit/s |
| Cable outlet | Inclined / tilted cable outlet |
| Dimensions (W x H x D) | 15.8 x 54 x 39.5 mm |
| Protection class | IP20 |
| Number of electrical connections for PROFIBUS cables | 2 |
| Number of electrical connections for network components or terminal equipment | 1 |
| Type of electrical connection for PROFIBUS cables | Screw |
| Type of electrical connection for network components or terminal equipment | 9-pin Sub-D connector |
| Terminating resistor | Integrated resistor combination selectable with slide switch |
| PG connection socket | Yes |
| Strain relief | Yes |
| Enclosure material | Plastic |
| Silicon-free | Yes |
| RoHS conformity | Yes |
| UL approval | Yes |
Used to terminate a PROFIBUS segment directly at a field device or remote I/O station while preserving bus continuity with selectable termination.
Prevents signal reflections and communication instability at the end of a PROFIBUS trunk.
The PG socket supports temporary programming or diagnostics access without removing the connector from the installed fieldbus cable.
Enables maintenance access in cramped control cabinets with minimal downtime.
The small 15.8 x 54 x 39.5 mm connector form factor and IP20 enclosure suit dense control-panel wiring between PROFIBUS nodes.
Saves DIN-rail and panel space while maintaining a secure screw-terminated bus connection.
