USD 3,828.00

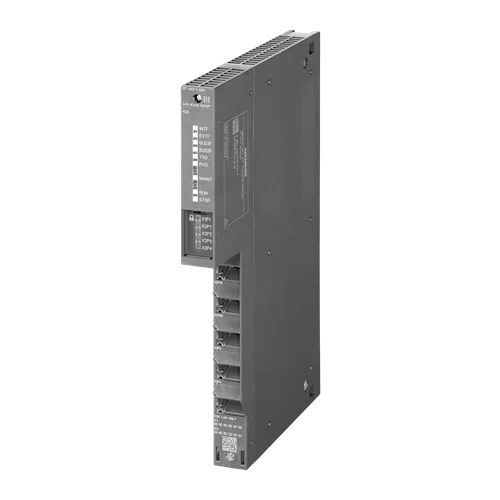

S7-400 communication processor with 1x GbE + 4x FE RJ45 ports, PROFINET IO controller, routing, web diagnostics, and C-PLUG.
S7-400 communication processor with 1x GbE + 4x FE RJ45 ports, PROFINET IO controller, routing, web diagnostics, and C-PLUG.
| Parameter | Value |
|---|---|
| Transfer rate at 1st interface | 10 ... 1000 Mbit/s |
| Transfer rate at 2nd interface | 10 ... 100 Mbit/s |
| Number of Industrial Ethernet interfaces | 5 |
| Electrical connections at 1st interface | 1 |
| Electrical connections at 2nd interface | 4 |
| Type of electrical connection at 1st interface | RJ45 port |
| Type of electrical connection at 2nd interface | RJ45 port |
| Removable storage | C-PLUG supported |
| Supply voltage type | DC |
| Supply voltage from backplane bus | 5 V |
| Relative symmetrical tolerance at DC | 5 % at 5 V |
| Typical current consumption from backplane bus at 5 V | 1.8 A |
| Power loss | 9 W |
| Operating temperature | 0 ... 60 °C |
| Storage temperature | -40 ... +70 °C |
| Transport temperature | -40 ... +70 °C |
| Relative humidity at 25 °C without condensation | 95 % maximum |
| Protection class | IP20 |
| Module format | Compact module S7-400 single width |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Net weight | 0.7 kg |
| Physical Weight (kg) | 0.867 |
| Dimensions L x W x H (cm) | 12.9 x 3.5 x 14.2 |
Use as the Ethernet communications layer between an S7-400 controller and plant-wide PROFINET/Industrial Ethernet infrastructure, where dual-speed interfaces and routing are required.
Connects legacy S7-400 automation to modern Ethernet networks without adding separate gateway hardware.
Ideal for production lines that need one gigabit uplink and multiple 100 Mbps switch ports to segment HMIs, drives, and diagnostics traffic on the same controller module.
Reduces network congestion and simplifies cabinet wiring by integrating switching into the communication processor.
Supports open communication, time synchronization, and PROFINET IO control for process cells that need coordinated data exchange and stable controller-to-device communication.
Maintains synchronized, deterministic communication for distributed industrial automation cells.
