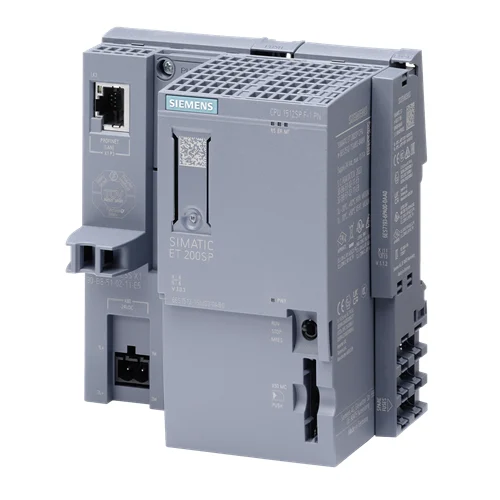

Siemens CPU 1512SP F-1 PN Fail-Safe Controller

Technical Overview

Fail-safe CPU 1512SP F-1 PN with 600KB program, 2MB data, PROFINET IRT, and 6 ns bit performance for ET 200SP systems.

Key Features

600 KB program memory
2 MB data memory
1st interface: PROFINET IRT with 3-port switch
6 ns bit performance for high-speed operations
Supports up to 128 IO devices
Multi-hot swapping during operation for reduced downtime
Isochronous mode capabilities for precise synchronization with PROFINET
24 V DC rated supply voltage, with permissible range 19.2V to 28.8V
Reverse polarity protection
Requires SIMATIC Memory Card for operation
BusAdapter required for port 1 and 2
Approved for degree of protection IP20 (when installed in a compact control box)

Technical Specification Matrix

Parameter	Value
Product Number	6ES7512-1SM03-0AB0
Brand	Siemens
Model	CPU 1512SP F-1 PN
Program Memory	600 KB
Data Memory	2 MB
PROFINET Interfaces	1 (PROFINET IRT with 3-port switch)
Bit Performance	6 ns
Firmware Version	V4.0
Hot Swapping	Yes (Multi-hot swapping)
Isochronous Mode	Yes (only with PROFINET, min. OB 6x cycle 500 µs)
Rated Supply Voltage (DC)	24 V
Permissible Supply Voltage Range (DC)	19.2 V to 28.8 V
Reverse Polarity Protection	Yes
Mains/Voltage Failure Stored Energy Time	10 ms
Current Consumption (Rated Value)	0.48 A
Current Consumption (Max.)	0.7 A
Inrush Current (Max.)	1.34 A
Power Loss (Typical)	3.5 W
SIMATIC Memory Card Required	Yes
BusAdapter Required	Yes (for port 1 and 2)
IP Rating	IP20 (for installation in a compact control box)
Physical Weight (kg)	0.34
Dimensions L x W x H (cm)	14 x 9 x 14

Industrial Applications

1. High-Speed Packaging Line Control

This CPU is ideal for precisely controlling high-speed packaging lines where synchronized motion and rapid responses are critical. Its 6 ns bit performance and PROFINET IRT with isochronous mode ensure accurate coordination of robotic pick-and-place, conveyor systems, and sealing mechanisms.

Problem Solved

Ensures accurate and synchronized movement of components on a high-speed packaging line, preventing jams and maximizing throughput while allowing for quick module replacement to reduce production interruptions through hot-swapping capability.

PROFINET IRTisochronous mode6 ns bit performancemotion controldistributed I/Ohot swappingsynchronization

2. Modular Machine Control in Automotive Assembly

The CPU's multi-hot swapping capability and PROFINET IRT with a 3-port switch make it suitable for complex, modular automotive assembly lines. It enables seamless integration and high-speed communication between various stations like welding robots and inspection systems, supporting robust control and easy maintenance.

Problem Solved

Provides a robust, high-performance, and easily maintainable control system for modular automotive assembly equipment, enabling efficient production and minimizing downtime through quick component replacement and real-time communication.

Modular automationhot swappingPROFINET IRTdistributed I/Osafety functions (F-CPU)high-speed communicationdiagnostics

3. Energy Management for Industrial Buildings with Distributed Sensing

For large industrial facilities, this CPU can centralize high-speed data acquisition and control for energy management systems. The PROFINET IRT interface allows efficient networking of numerous distributed sensors (e.g., power meters, environmental sensors) through an ET 200SP system, leveraging the 2 MB data memory for extensive logging and analysis.

Problem Solved

Centralized, high-speed data acquisition and control for distributed energy monitoring and management systems in large industrial facilities, allowing for efficient resource allocation and rapid response to changing energy demands or anomalies.

Distributed I/Oenergy monitoringdata loggingPROFINETreal-time data acquisitionbuilding automationET 200SP
