Siemens SIMATIC S7-300 Mounting Rail 482.6mm

Technical Overview

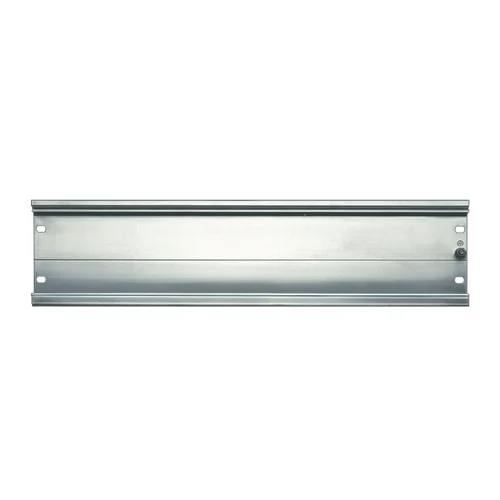

Galvanically tin-plated aluminum mounting rail for SIMATIC S7-300, 482.6mm long, 122mm high, 2.5mm thick.

Key Features

Designed specifically for SIMATIC S7-300 controllers.
Length of 482.6 mm for accommodating multiple modules.
Constructed from aluminum for durability and manageable weight.
Features a galvanically tin-plated surface.
Suitable for direct installation in control cabinets.
Can be cut into individual lengths for custom applications.

Technical Specification Matrix

Parameter	Value
Length	482.6 mm
Height	122 mm
Material Thickness	2.5 mm
Material	Aluminum
Surface Design	Galvanically tin-plated
Approximate Weight	647 g
Physical Weight (kg)	0.65
Dimensions L x W x H (cm)	49.1 x 12.8 x 2.4

Industrial Applications

1. Industrial Automation Control Panels

Utilized as the primary mounting base within industrial control panels to securely house Siemens SIMATIC S7-300 PLCs and associated I/O modules. Its precise length and robust aluminum construction ensure stable and organized component placement, critical for reliable automation systems.

Problem Solved

Provides a standardized, secure, and robust mounting solution for PLC components, ensuring organized wiring and easy maintenance within control panels, preventing movement or damage of critical control hardware.

PLC mountingcontrol cabinetindustrial automationDIN railmodular systemaluminum construction

2. OEM Machine Integration

Integrated directly into custom machine frames or enclosures by Original Equipment Manufacturers (OEMs) to consolidate the control logic using SIMATIC S7-300 modules. The rail's exact dimensions (48.26 cm length, 12.2 cm height, 0.25 cm thickness) facilitate precise design and pre-drilling for streamlined assembly and a compact footprint.

Problem Solved

Offers a reliable and dimensionally consistent platform for integrating Siemens S7-300 PLCs into custom machines, simplifying assembly processes and ensuring long-term component stability within the machinery.

OEM integrationmachine controlcustom enclosurerobust mountingcompact design

3. Decentralized Process Control Units

Employed in distributed control systems (DCS) for mounting SIMATIC S7-300 CPUs and I/O modules in local control boxes situated close to process equipment. The galvanically tin-plated aluminum construction offers a degree of corrosion resistance suitable for typical industrial environments, aiding in system longevity.

Problem Solved

Facilitates organized and secure installation of S7-300 PLC components in localized control boxes for process monitoring and regulation, ensuring system integrity and reliability while providing some protection against environmental factors.

DCSprocess automationdistributed I/Ocontrol boxcorrosion resistancesystem reliability
