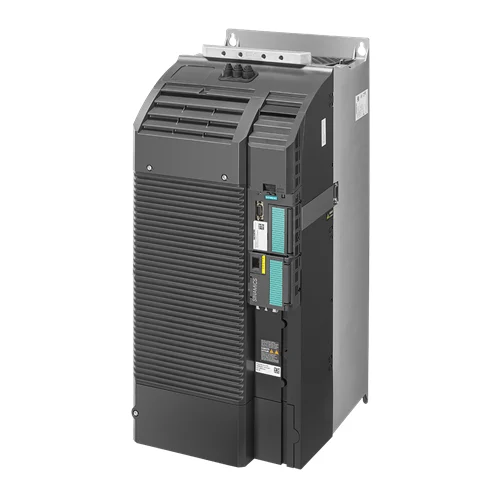

Siemens SINAMICS G120C 110kW Compact Converter

Technical Overview

High-power 110 kW compact frequency converter with 380-480V 3AC input, integrated PROFINET/EtherNet/IP, and Safe Torque Off. IP20 rated for industrial use.

Key Features

3-phase AC input voltage: 380-480 V (+10% / -20%), 47-63 Hz.
Rated power: 110.00 kW (Low Overload) / 90.00 kW (High Overload).
High overload capability: 150% base load current for 3s (LO) / 200% base load current for 3s (HO).
Integrated communication: PROFINET, EtherNet/IP.
Integrated Safe Torque Off (STO) function.
Degree of protection: IP20 / UL open type.
Compact FSF frame size: 708 mm (H) x 305 mm (W) x 357 mm (D).
Multiple I/O interfaces: 6 digital inputs, 2 digital outputs (1 relay, 1 transistor), 1 analog/digital input, 1 analog output.

Technical Specification Matrix

Parameter	Value
Article Number	6SL3210-1KE32-1UF1
Product Type	SINAMICS G120C Compact Converter
Input Voltage	3AC 380-480 V (+10% / -20%)
Line Frequency	47-63 Hz
Rated Power (LO)	110.00 kW (125.00 hp)
Rated Power (HO)	90.00 kW (100.00 hp)
Rated Current (LO)	201.00 A
Rated Current (HO)	164.00 A
Max. Output Current	328.00 A
Pulse Frequency	2 kHz
Output Frequency (Vector Control)	0-240 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	150% base load current for 3s, followed by 110% for 57s in a 300s cycle
Overload Capability (HO)	200% base load current for 3s, followed by 150% for 57s in a 300s cycle
Power Factor (λ)	0.90-0.95
Efficiency (η)	0.99
Sound Pressure Level (1m)	68 dB
Power Loss	2,310.0 W
Filter Class (Integrated)	Unfiltered
Communication Interface	PROFINET, EtherNet/IP
Standard Digital Inputs	6
Digital Outputs (Relay Changeover Contact)	1
Digital Outputs (Transistor)	1
Analog / Digital Inputs	1 (Differential input, 10 bit resolution)
Analog Outputs	1 (Non-isolated)
Safety Function	Safe Torque Off (STO) integrated
Degree of Protection	IP20 / UL open type
Physical Weight (kg)	62
Dimensions L x W x H (cm)	74.5 x 46.9 x 38.5

Industrial Applications

1. High-Power Pumping Systems

This converter can precisely control large industrial pumps, optimizing flow rates for water treatment, HVAC, or chemical processing. Its 110 kW power rating is suitable for substantial pumping demands, while vector control ensures efficient operation across varying loads.

Problem Solved

Reduces energy consumption and wear on mechanical components in large pumping stations by precisely matching motor speed to fluid demand, rather than using inefficient throttling valves. The integrated STO function enhances safety during maintenance.

Variable Speed DriveCentrifugal PumpsFlow ControlEnergy EfficiencyPROFINETSafe Torque Off110 kW400V

2. Material Handling & Conveyor Systems

Ideal for driving heavy-duty conveyor belts or material handling equipment in manufacturing plants or logistics centers. The 110 kW output can handle significant loads, and the high overload capacity (up to 200%) allows for controlled acceleration and deceleration of heavy materials, preventing damage and improving throughput.

Problem Solved

Provides smooth and controlled acceleration/deceleration for heavy conveyor systems, reducing mechanical stress, preventing jams, and allowing for precise positioning of materials. The integrated fieldbus (PROFINET/EtherNet/IP) enables seamless integration into plant automation systems.

Conveyor DrivesMaterial TransportSoft Start/StopOverload ProtectionVector ControlEtherNet/IP110 kW

3. Large Industrial Fan Control

Suitable for controlling large industrial fans in ventilation systems, exhaust systems, or drying processes. The 110 kW capacity and 380-480V input allow it to power substantial fan motors, while V/f control optimizes air flow and minimizes energy consumption based on process requirements.

Problem Solved

Optimizes energy usage in large fan applications by adjusting motor speed to match air demand, eliminating the need for inefficient damper control. The IP20 rating is suitable for controlled industrial environments, and integrated communication allows for remote monitoring and control.

HVAC SystemsIndustrial VentilationFan ControlVariable Frequency Drive (VFD)Energy OptimizationV/f Control400V
