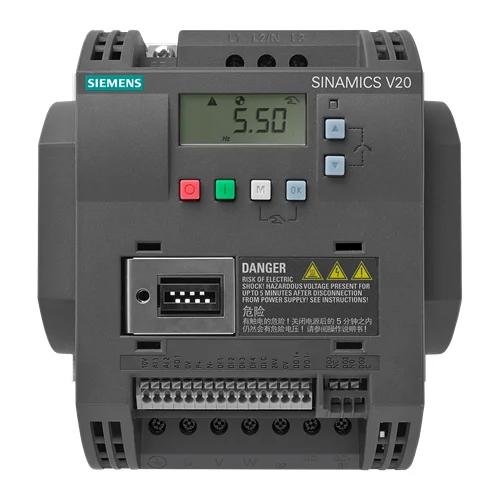

Siemens SINAMICS V20 1.1kW Variable Frequency Drive

Technical Overview

Compact Siemens SINAMICS V20 1.1kW VFD for 3-phase 380-480V motor control. Features IP20, integrated C3 filter, Modbus RTU, and 150% overload for 60s.

Key Features

Three-phase input voltage: 380-480 V AC (-15% / +10%), 47-63 Hz.
Rated output power: 1.1 kW (1.5 hp).
Rated output current: 3.10 A.
Integrated Class A / C3 filter for EMC compliance.
Built-in braking chopper.
Communication via USS and Modbus RTU.
I/O: 4 digital inputs, 1 relay digital output (changeover contact), 1 transistor digital output, 2 analog inputs, 1 analog output.
Degree of protection: IP20 / UL open type.
Compact frame size FSA for wall or side-by-side mounting.
Ambient operating temperature range: -10 to 60 °C.
Overload capability: 110% rated output current for 60 seconds (Low Overload), 150% rated output current for 60 seconds (High Overload).
Output frequency range: 0 to 550 Hz.

Technical Specification Matrix

Parameter	Value
Input Number of Phases	3 AC
Line Voltage	380 ... 480 V -15 % +10 %
Line Frequency	47 ... 63 Hz
Output Number of Phases	3 AC
Rated Output Voltage	400V IEC / 480V NEC
Rated Power (LO/HO)	1.10 kW (1.50 hp)
Rated Current (LO/HO/IN)	3.10 A
Pulse Frequency	4.00 kHz
Output Frequency	0 ... 550 Hz
Low Overload Capability	110 % rated output current for 60 s, cycle time 300 s
High Overload Capability	150 % rated output current for 60 s, cycle time 300 s
Power Factor λ	0.72
Offset Factor cos φ	0.95
Efficiency η	0.98
Integrated Filter Class	Class A / C3
Braking Chopper	Integrated
Communication Protocols	USS, Modbus RTU
Standard Digital Inputs	4
Digital Outputs (Relay Changeover Contact)	1
Digital Outputs (Transistor)	1
Analog Inputs	2 (Can be used as additional digital input)
Analog Outputs	1
Cooling	External fan
Installation Altitude	1,000 m (3,280.84 ft)
Ambient Temperature Operation	-10 ... 60 °C (14 ... 140 °F)
Ambient Temperature Storage	-40 ... 70 °C (-40 ... 158 °F)
Max. Relative Humidity (Operation)	95 %
Max. Motor Cable Length (Shielded)	10 m (32.81 ft)
Max. Motor Cable Length (Unshielded)	50 m (164.04 ft)
Mounting Position	Wall mounting / side-by-side mounting
Degree of Protection	IP20 / UL open type
Frame Size	FSA
Compliance with Standards	CE, cULus, C-Tick (RCM), KC
Physical Weight (kg)	1.05
Dimensions L x W x H (cm)	18 x 20.5 x 14
