USD 1,133.58

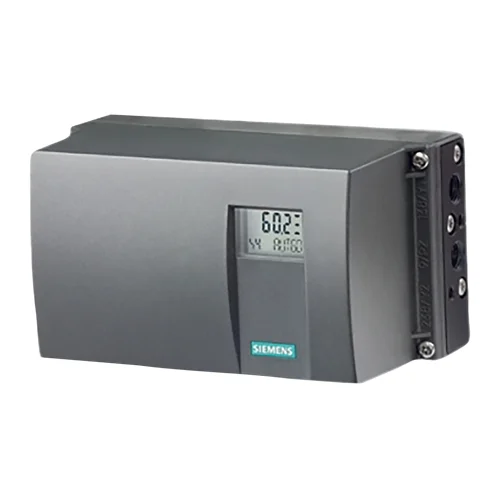

4…20 mA single-acting electropneumatic positioner with non-contacting position detection and polycarbonate enclosure.
4...20 mA single-acting electropneumatic positioner with non-contacting position detection and polycarbonate enclosure.
| Parameter | Value |
|---|---|
| Control signal | 4...20 mA |
| Actuator type | Single-acting |
| Enclosure material | Polycarbonate |
| Hazardous area designation | Ex/nEx |
| Position detection | Non-contacting (wear-free) position detection (NCS) |
| Application | Pneumatic linear and part-turn actuators |
| Electrical connection thread | M20x1.5 |
| Pneumatic connection thread | G 1/4 |
| Limit monitor | Not included |
| Options module | Not included |
| Mounted pressure gauge block | Not included |
| Input operating current | Iw = 4...20 mA |
| Maximum supply voltage | Umax = 35 VDC |
| Maximum current | Imax = 100 mA |
| Ambient temperature | Ta = -30°C to +80°C |
| Pneumatic supply pressure | p = 1.4 to 7 bar |
| Ingress protection | IP66 / Type 4X |
| Physical Weight (kg) | 0.9 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Used to precisely position single-acting pneumatic control valves on process skids where a 4...20 mA command and durable feedback-free actuation are required.
Eliminates unstable valve positioning and reduces wear in continuous-duty throttling service.
Suitable for field-mounted valve automation exposed to dust, washdown, and weather because the enclosure is rated IP66 / Type 4X and operates from -30°C to +80°C.
Maintains reliable valve control in harsh environmental conditions without enclosure upgrades.
Fits pneumatic part-turn actuators where a robust 4...20 mA positioner with non-contacting sensing is needed for repeatable alignment of dampers or rotary valves.
Improves repeatability and long-term stability for rotary final-control elements.
