1. Automotive Paint Shop Pneumatic Actuator Monitoring

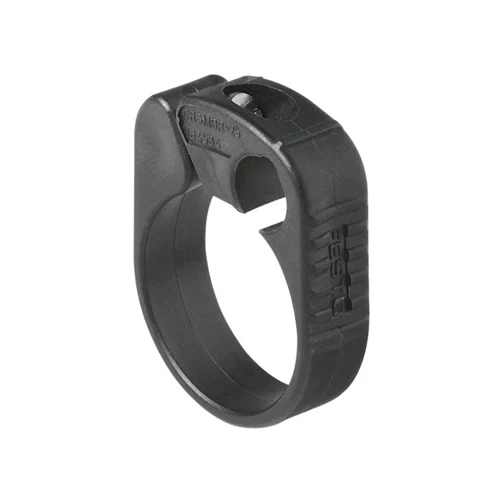

Utilizing the Festo SMBR-16 mounting kit to attach SMEO-4 or SMTO-4 proximity switches onto 16mm bore ESNU or DSNU pneumatic cylinders within automated vehicle painting lines. This setup ensures reliable end-of-stroke detection for part-positioning actuators.
Problem SolvedPrevents the introduction of paint-wetting impairment substances (PWIS) like silicones, which cause craters and fisheyes in automotive paint finishes, while ensuring the sensor is held securely without crushing the cylinder.
VDMA24364-B2-LLABS (PWIS) conformitySize 16 bore0.5 Nm tightening torqueProximity sensor bracket
2. Consumer Electronics PCB Assembly Stroke Detection
Implementing the SMBR-16 mounting bracket on compact 16mm pneumatic actuators used for parts escapement and robotic positioning in automated printed circuit board (PCB) manufacturing lines.
Problem SolvedMeets strict global environmental and electrical safety directives for electronics manufacturing by providing a heavy-metal-free mounting solution that securely holds delicate proximity sensors under continuous, high-cycle vibrations without overtightening.
RoHS-compliantSize 160.5 Nm tightening torqueSMTO-4 sensor mountingAutomated assembly
3. Medical Device Blister Packaging Automation
Deploying the sensor mounting kit on miniature 16mm round cylinders inside medical packaging cleanrooms to continuously monitor actuator extension and retraction during the sterile blister sealing process.
Problem SolvedEliminates the risk of outgassing or chemical contamination in sensitive medical packaging environments while precisely managing clamping force to avoid deforming thin-walled miniature pneumatic cylinders.
VDMA24364-B2-LPWIS-freeSize 16 pneumatic cylinder0.5 Nm tightening torqueCleanroom compliance
