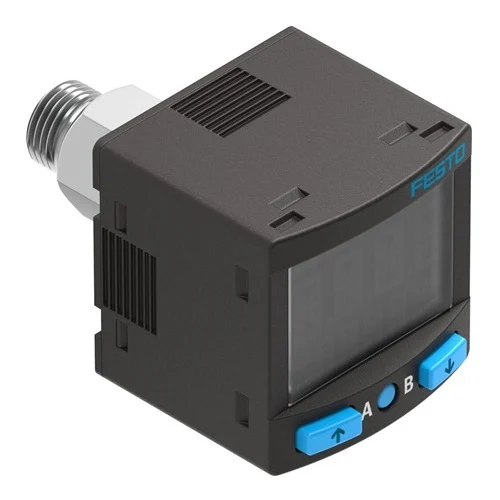

SPAN-B11R-G18M-PNLK-PNVBA-L1 Festo Pressure sensor

Technical Overview

The SPAN-B11R-G18M-PNLK-PNVBA-L1 is a versatile piezoresistive pressure sensor designed for relative pressure measurement in compressed air and inert gases. It features a wide measuring range from -1 to 10 bar and integrates an illuminated LCD display for real-time monitoring across multiple units. The sensor is equipped with IO-Link® communication, dual switchable PNP/NPN outputs, and a flexible analogue output (0-10V, 4-20mA, 1-5V). Its robust PA-reinforced housing and stainless steel wetted parts make it suitable for demanding industrial environments, including battery production and ISO Class 4 cleanrooms.

Key Features

Piezoresistive pressure measurement method
Illuminated LCD display for clear visualization
IO-Link® Smart sensor profile support
Dual switching outputs (2x PNP or 2x NPN, switchable)
Configurable analogue outputs (0-10V, 4-20mA, 1-5V)
Suitable for Li-ion battery production with reduced Cu/Zn/Ni values
Cleanroom suitability ISO Class 4
Multiple switching functions: Window comparator, Threshold value, and Auto difference monitoring
Reverse polarity and short circuit protection

Technical Specification Matrix

Parameter	Value
Symbol	00995685
Approval	RCM trademark c UL us listed (OL)
CE mark	To EU EMC Directive In accordance with EU RoHS Directive
UKCA marking	To UK RoHS instructions
Certificate issuing authority	UL E322346
Note on materials	RoHS-compliant
Measured variable	Relative pressure
Measurement method	Piezoresistive pressure sensor
Start value for pressure measuring range (MPa)	-0.1 MPa
Start value for pressure measuring range (bar)	-1 bar
Start value for pressure measuring range (psi)	-14.5 psi
End value for pressure measuring range (MPa)	1 MPa
End value for pressure measuring range (bar)	10 bar
End value for pressure measuring range (psi)	145 psi
Max. overload pressure	15 bar
Overload pressure (MPa)	1.5 MPa
Overload pressure (bar)	15 bar
Overload pressure (psi)	217.5 psi
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium	Lubricated operation possible
Media temperature	0 °C ... 50 °C
Ambient temperature	0 °C ... 50 °C
Accuracy in ± % FS	1.5 %FS
Repetition accuracy in ± %FS	0.3 %FS
Temperature coefficient in ± %FS/K	0.05 %FS/K
Switching output	2 x PNP or 2 x NPN, switchable
Switching function	Window comparator Threshold value comparator Auto difference monitoring
Switching element function	N/C or N/O contact, switchable
Max. output current	100 mA
Analogue output	0 - 10 V 4 - 20 mA 1 - 5 V
Max. load resistance current output	500 Ohm
Min. load resistance voltage output	20 kOhm
Short circuit current rating	yes
Protocol	IO-Link®
IO-Link, Protocol version	Device V 1.1
IO-Link, Profile	Smart sensor profile
IO-Link, Function classes	Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, communication mode	COM2 (38.4 kBaud)
IO-Link, SIO-Mode support	Yes
IO-Link, Port class	A
IO-Link, Process data length OUT	0 bytes
IO-Link, Process data length IN	2 bytes
IO-Link, Process data content IN	14 bit PDV (pressure measurement value) 2 bit BDC (pressure monitoring)
IO-Link, Min. cycle time	3 ms
IO-Link, Data storage required	500 Byte
Operational voltage range	DC 15 V ... 30 V
Reverse polarity protection	For all electrical connections
Electrical connection 1, connection type	Plugs
Electrical connection 1, connector system	Connection pattern L1J
Electrical connection 1, number of connections/cores	4
Electrical connection 1, connection pattern	00995428
Type of mounting	Via thread Via wall/surface bracket
Mounting position	optional
Pneumatic connection	Female thread M5
Product weight	46 g
Material housing	PA-reinforced
Material in contact with the medium	High-alloy stainless steel
Display type	Illuminated LCD
Displayable units	MPa bar inH2O inHg kPa kgf/cm² mbar mmHg psi
Setting options	IO-Link® Teach-in Via display and keys
Protection against tampering	IO-Link PIN code
Setting range threshold value	0 % ... 100 %
Setting range hysteresis	0 % ... 90 %
Degree of protection	IP40
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries	Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability	Class 4 according to ISO 14644-1

Industrial Applications

1. Li-Ion Battery Cell Assembly Handling

Deployed in the pneumatic pick-and-place handling systems for lithium-ion battery electrode stacking and sorting. The sensor monitors the vacuum and compressed air lines used by the grippers to move sensitive battery components. Its IO-Link connectivity allows continuous transmission of the 14-bit pressure process data variable to the master controller.

Problem Solved

Standard sensors can introduce trace metals that cause dangerous internal short circuits in lithium-ion batteries. This sensor's specific F1a rating (reduced Cu/Zn/Ni values) eliminates heavy metal contamination risks, while its -1 to 10 bar range allows it to monitor both vacuum grip and positive pressure blow-off states in a single unit.

Reduced Cu/Zn/Ni values (F1a)IO-Link Device V 1.1-1 to 10 bar measuring range14 bit PDV process dataPiezoresistive pressure sensor

2. Semiconductor Wafer Cleanroom Transport

Integrated into robotic wafer transfer arms within semiconductor fabrication plants to monitor vacuum levels. The sensor utilizes its programmable window comparator switching function to verify that the gripping pressure is within the exact safe threshold before the robot is allowed to move the expensive silicon wafer.

Problem Solved

Prevents catastrophic wafer drops while maintaining strict environmental purity. The sensor solves the contamination challenge by being certified for ISO 14644-1 Class 4 cleanrooms, ensuring it does not shed particulates into the environment, and its fast 3 ms IO-Link cycle time guarantees immediate system reaction to suction loss.

Cleanroom Class 4 (ISO 14644-1)Window comparator3 ms Min. cycle time0.3 %FS repetition accuracyIP40 Degree of protection

3. High-Speed Automated Medical Packaging Leak Testing

Utilized in blister packaging machines to monitor pressure decay during non-destructive seal integrity testing. Inert gas or compressed air is injected into the test chamber, and the sensor uses its 4-20mA analogue output or IO-Link interface to monitor pressure stability over a brief testing window.

Problem Solved

Identifies micro-leaks in sterile medical packaging by accurately detecting minute pressure drops. The sensor's high precision (1.5 %FS accuracy and 0.05 %FS/K temperature coefficient) ensures reliable pass/fail decisions, and its dual switchable PNP/NPN outputs can trigger immediate reject mechanisms for faulty packages without requiring complex PLC programming.

Analogue output 4-20 mA1.5 %FS Accuracy0.05 %FS/K Temperature coefficientSwitching output PNP/NPNCompressed air to ISO 8573-1:2010
