Part Number	LADN02
Product Series	TeSys
Product Series	TeSys Deca
product name	TeSys Deca
product type	Auxiliary Contact Module
product short name	LADN
scope of application	TeSys D CAD
	TeSys D LC1D
	TeSys F LC1F
	TeSys F CR1F
	TeSys Deca CAD
	TeSys Deca LC1D
installation location	Front
Loop contact type	2 NC
Contacts operation	Momentary
Rated working voltage [Ue]	690 V AC 25…400 Hz
Rated operating current [Ie]	6 A at 120 V AC-15
	1.04 A at 690 V AC-15
	0.55 A at 126 V DC-13
	0.1 A at 600 V DC-13
Rated insulation voltage [Ui]	690 V conforming to IEC 60947-5-1
	600 V conforming to UL
	600 V conforming to CSA
Conventional thermal current [Ith]	10 A at <60 °C
Standards compliant	EN/IEC 60947-5-1
	UL 60947-5-1
	CSA C22.2 No 60947-5-1
	GB/T 14048.5
certified product	IEC CB Report
	UL
	CSA
	CCC
	EAC
	UKCA
Additional information
Rated making capacity [Irms]	140 A AC conforming to IEC 60947-5-1
Rated making capacity [Irms]	250 A DC conforming to IEC 60947-5-1
Allow short time rated	100 A for 1 s
	120 A for 500 ms
	140 A for 100 ms
protection type	GG fuse 10 A
Mechanical life	30 Mcycles
Minimum switching current [Imin]	5 mA
Minimum switching voltage	17V
non-overlapping time	1.5 ms No overlap between de-energized NC and NO contacts
non-overlapping time	1.5 ms No overlap between energized NC and NO contacts
Insulation resistance	> 10 MΩ
Wiring capacity	Bolt fastening1 Cable 1…4 mm² flexible with
	bolt fastening1 Cable 1…4 mm² flexible without
	bolt fastening2 Cable 1…2.5 mm² flexible with
	bolt fastening2 Cable 1…4 mm² flexible without bolt fastening2
	Bolt fastening1 Cable 1…4 mm² solid solid without
	Bolt fastening2 Cable 1…4 mm² solid solid without
Tightening torque	1.7 Nm with screwdriver Ø 6 flat
	1.7 Nm with screwdriver No 2 Phillips screw
	1.7 Nm with screwdriver pozidriv No 2
high	48 mm
width	26 mm
depth	42 mm
color	Dark gray
Environment
environmental features	Normal use environment
IP protection class	IP20 complies with screwed
Protective measures	TH conforms to IEC 60068
storage environment temperature	-60…80°C
operating temperature	-5…60°C
working altitude	3000m
Packaging unit
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.8cm
Package 1 Width	4.2 cm
Package 1 Length	5.2 cm
Package 1 Weight	34g
Unit Type of Package 2	S03
Number of Units in Package 2	320
Package 2 Height	30cm
Package 2 Width	30cm
Package 2 Length	40cm
Package 2 Weight	11.367kg
Contract warranty
Warranty	18 months

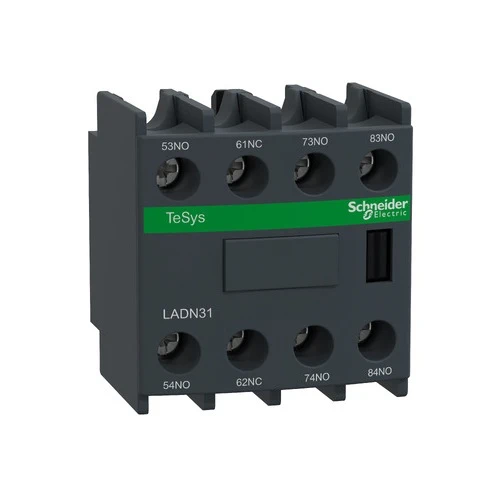

Product Name	LADN31
Product range	TeSys
	TeSys Deca
Product name	TeSys Deca
Product type	Auxiliary contact module
Short name of the product	LADN
Scope of application	TeSys D CAD
	TeSys D LC1D
	TeSys F LC1F
	TeSys F CR1F
	TeSys Deca CAD
	TeSys Deca LC1D
Installation location	front
Type of loop contact	3 NO + 1 NC
Contacts operation	Instantaneous
Rated operating voltage [UE]	690 V AC 25…400 Hz
Rated operating current [IE]	6 A When operating voltage<=120 V AC-15
	1.04 A When operating voltage<=690 V AC-15
	0.55 A When operating voltage<=125 V DC-13
	0.1 A When operating voltage<=600 V DC-13
Rated insulation voltage [UI]	690 V according to IEC 60947-5-1
	600 V to UL and
	600 V to CSA
Conventional heating current [Ith]	10 A (with operating temperature <=60 °C)
standard	EN/IEC 60947-5-1
	GB/T 14048.5
	EN 50012
	UL 60947-5-1
	CSA C22.2 No 60947-5-1
	IEC 60335-1:Clause 30.2
	IEC 60335-2-40: Annex JJ
	UL 60335-2-40:Annex JJ
Product Certification	CB Scheme
	UL
	CSA
	CCC
	EAC
	UKCA
Supplemental information
Rated Continuity Capability [IRMS]	140 A AC according to IEC 60947-5-1 and
Rated Continuity Capability [IRMS]	250 A DC according to IEC 60947-5-1
Allows for short time ratings	100 A in… on <60 °C 1 s
	120 A in… on <60 °C 500 ms
	140 A in… < 60 °C for 100 ms
Type of protection	GG fuse 10 A
Mechanical life	30 Mcycles
Minimum switching current [Imin]	5 mA
Minimum switching voltage	17 V
Do not overlap time	1.5 ms power loss: no overlap
Do not overlap time	between NC and NO contacts, 1.5 ms power-up: no overlap between NC and NO contacts
Insulation resistance	> 10 MΩ
Wiring capacity	Bolt fastening 1 cable 1… 4 mm² flexible wire with
	bolt fastening 1 cable 1… 4 mm² cord without
	bolt fastening 2 cables 1… 2.5 mm² flexible wire with
	bolt fastening 2 cables 1… 4 mm² cord without
	bolt fastening 1 cable 1… 4 mm² single strand wire without
	bolt fastening 2 cables 1… 4 mm² single strand hard wire without
Tightening torque	1.7 N.m with a screwdriver Ø 6 Flat 1.7
	N.m with a screwdriver No 2 Phillips screws
	1.7 N.m with a screwdriver pozidriv No 2
height	48 mm
width	44 mm
depth	42 mm
net weight	0.05 kg
color	Dark gray
environment
Environmental characteristics	Normal use environment
IP protection rating	IP2X conforming to IEC 60529
Protective measures	TH complies with IEC 60068
Storage ambient temperature	-60… 80 °C
Operating temperature	-5… 60 °C
Working altitude	3000 m
Packing Units
Package 1: Packing unit type	PCE
Package 1: Packing unit quantity	1
Package 1: Height	4.800 cm
Package 1: Width	4.200 cm
Package 1: Length	5.000 cm
Package 1: Gross weight	62.000 g
Package 2: Packing unit type	BB1
Package 2: Packing unit quantity	10
Package 2: Height	4.800 cm
Package 2: Width	8.600 cm
Package 2: Length	26.000 cm
Package 2: Gross weight	628.000 g
Package 3: Packing unit type	S03
Package 3: Packing unit quantity	160
Package 3: Height	30.000 cm
Package 3: Width	30.000 cm
Package 3: Length	40.000 cm
Package 3: Gross weight	10.345 kg
Contract Warranty
Warranty	18 months
