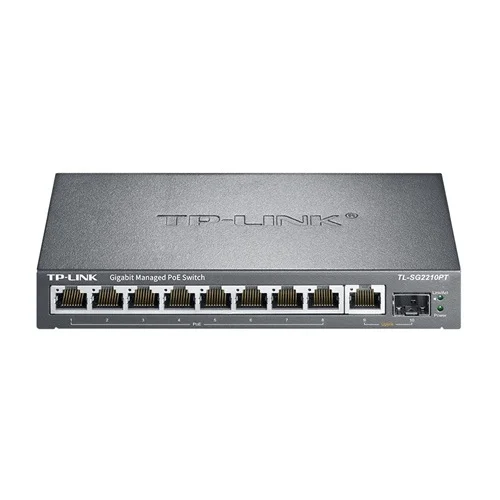

TP-Link TL-SG2210PT 10-Port Gigabit PoE Switch

Technical Overview

Gigabit cloud-managed switch with 8 PoE+ ports (120W total budget, 30W max/port), 1 SFP uplink, and 53.5VDC/2.4A power. Supports L2 features, VLAN, and QoS.

Key Features

9× 10/100/1000 Mbps RJ45 ports (Ports 1-8 support PoE+ output)
1× 1000 Mbps SFP optical slot for high-speed fiber uplink
Supports IEEE 802.3af/at standard PoE with a maximum power budget of 120W
Enables single-port PoE power output up to 30W with remote port reboot functionality
Offers 4K MAC address table capacity and non-blocking wire-speed forwarding
Provides Cloud-Managed, VLAN isolation, and Standard switching modes via a hardware toggle switch
Supports L2/L2+ management features including 802.1Q VLAN, Port Trunking/Aggregation, QoS, and Port Mirroring
Features intelligent loop detection and prevention to guard against network storms
Allows remote app-based and web-based cloud management with automated network topology mapping and abnormal alerts

Technical Specification Matrix

Parameter	Value
Interface Ports	9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps SFP Slot
PoE Ports	8× PoE+ Ports (Ports 1–8)
PoE Power Budget	120 W total, up to 30 W per port
PoE Standard	IEEE 802.3af/at
Input Power Supply	53.5VDC / 2.4A via external power adapter
MAC Address Table	4 K
Dimensions	171 mm × 98 mm × 27 mm
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH (non-condensing)
Storage Temperature	-40°C to 70°C
Working Modes	Cloud Management, VLAN Isolation, Standard Switching
Physical Weight (kg)	0
Dimensions L x W x H (cm)	17.1 x 9.8 x 2.7

Industrial Applications

1. Distributed Industrial Video Surveillance Network

This switch can be deployed in warehouse or factory floor environments to connect and power up to 8 high-definition PoE IP cameras. The 120W total PoE budget easily accommodates multiple 15W-30W cameras, while the 1Gbps SFP uplink provides a noise-immune fiber connection back to the central server over long distances.

Problem Solved

Eliminates the need for local power outlets near each camera location and avoids electromagnetic interference (EMI) on copper uplink lines by using a fiber SFP module.

PoE+ IP CamerasFiber UplinkSFP Slot802.3at120W Budget

2. Enterprise Wireless Access Point (AP) Deployment

Deploying high-density wireless APs in hotels, campuses, or open industrial spaces. The TL-SG2210PT powers the APs over Ethernet cables while managing traffic using VLANs to segregate guest and corporate networks.

Problem Solved

Simplifies network cabling by combining power and high-speed data on a single cable, and secures data traffic through 802.1Q VLAN segmentation.

Wireless APVLAN Segmentation802.1QPoE PoweringQoS Optimization

3. Industrial IoT Edge Gateway Network

In industrial edge installations, the switch connects multiple IoT controllers, HMI screens, and local sensors. If a powered end-device crashes, operators can use the remote cloud-management app to perform a remote PoE port reboot, cycling the power to the device without needing physical access to the cabinet.

Problem Solved

Reduces maintenance downtime and field technician dispatch costs by allowing remote hardware power-cycling of crashed edge devices.

Edge DevicesRemote PoE RebootCloud ManagementIoT Controller IntegrationLoop Detection
