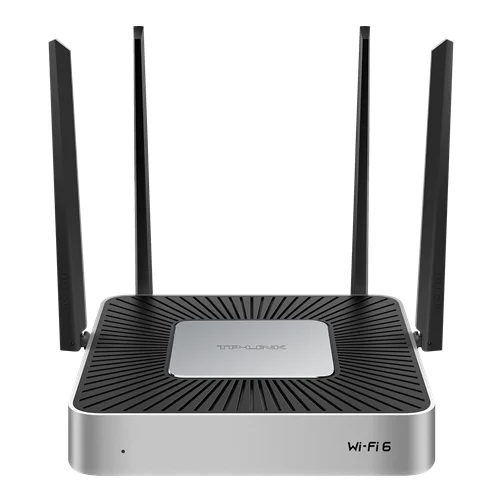

TP-Link TL-XVR1800L Wi-Fi 6 VPN Router

Technical Overview

AX1800 dual-band Wi-Fi 6 VPN router with 5 gigabit ports (1 WAN, 3 WAN/LAN, 1 LAN), IPSec/L2TP/PPTP security, and up to 150 concurrent client capacity.

Key Features

AX1800 Wi-Fi 6 technology with dual-band speeds up to 1775 Mbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz)
Five gigabit RJ45 Ethernet ports featuring up to three configurable WAN/LAN optional ports for multi-line internet access
Supports IPSec, L2TP, and PPTP VPN protocols for secure, remote data transmission
EasyMesh (YiZhan) technology for simple and seamless mesh wireless coverage extension
Integrated commercial behavior management including application restriction, website filtering, and bandwidth control
Reliable network security with ARP protection, DoS attack defense, and WPA3 wireless encryption
Supports TP-Link Commercial Cloud Platform and App centralized management

Technical Specification Matrix

Parameter	Value
Wi-Fi Speed (2.4GHz)	574 Mbps
Wi-Fi Speed (5GHz)	1201 Mbps
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Network Interfaces	1x 10/100/1000M RJ45 WAN port, 3x 10/100/1000M RJ45 WAN/LAN optional ports, 1x 10/100/1000M RJ45 LAN port
USB Interfaces	1x USB port (Max 0.6A power supply)
Antenna Gain	5dBi
Antennas	2x 2.4G 5dBi omnidirectional high-gain antennas, 2x 5G 5dBi omnidirectional high-gain antennas
Operating Voltage	100 to 240V AC, 50/60Hz
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5% to 90% RH non-condensing
VPN Support	IPSec, L2TP, PPTP VPN
Max Capacity (Concurrent Devices)	150 clients
Cooling Method	Thermal conductive silicone + natural heat dissipation
Physical Weight (kg)	1.05
Dimensions L x W x H (cm)	20.8 x 20.8 x 4.35

Industrial Applications

1. Remote Industrial Monitoring and SCADA Telemetry Hub

Serves as a high-security gateway in remote control centers or decentralized manufacturing cells to aggregate telemetry data from sensors and PLCs. It uses the built-in hardware IPSec VPN to establish a secure, encrypted tunnel to the central enterprise server over public WAN connections.

Problem Solved

Protects sensitive industrial control system (ICS) and SCADA data from interception and cyber-attacks during transmission over public networks, while the dual-band Wi-Fi 6 handles high-speed wireless sensor data collection locally.

IPSec VPNWi-Fi 6Multi-WANSCADA GatewayGigabit LAN

2. Redundant Network Backhaul for Logistics Warehouses

Installed in high-capacity warehouse environments where hundreds of automated guided vehicles (AGVs) and handheld barcode scanners must maintain a continuous link to the local warehouse management system (WMS). It leverages the 3 multi-WAN/LAN ports for multi-line internet backup and failover.

Problem Solved

Prevents costly logistics downtime caused by ISP outages by instantly switching traffic to a backup broadband line, maintaining continuous, uninterrupted operation of AGVs and picking terminals.

Multi-WAN FailoverEasyMeshLoad BalancingAGV Connectivity150 Client Capacity

3. Commercial Smart Grid Substations

Installed in power sub-distribution stations to connect smart meters, thermal imaging cameras, and local HMI terminals. It utilizes L2TP and PPTP VPN protocols to allow remote utility engineers to securely dial in and diagnose or configure power electronics without visiting the site physically.

Problem Solved

Reduces physical dispatch and maintenance costs, enabling rapid response times for grid adjustments through secure, remote configuration of utility systems over WPA3-encrypted networks.

L2TP/PPTP VPNBandwidth ControlAccess Control ListsWPA3 Security10/100/1000M RJ45
