$ 46.00
Manufacturer Part Number: Festo 3626
Festo Mechanical & Hand Operated Valves: V-3-M5

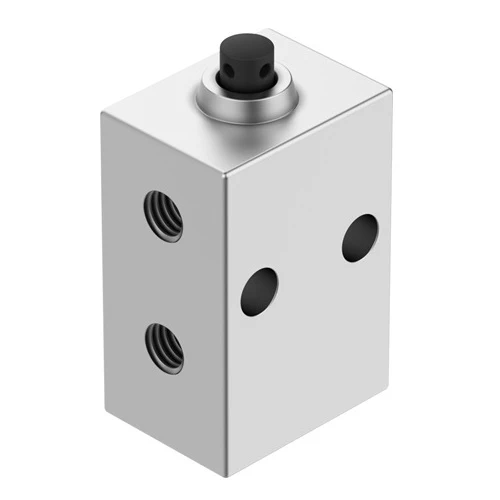

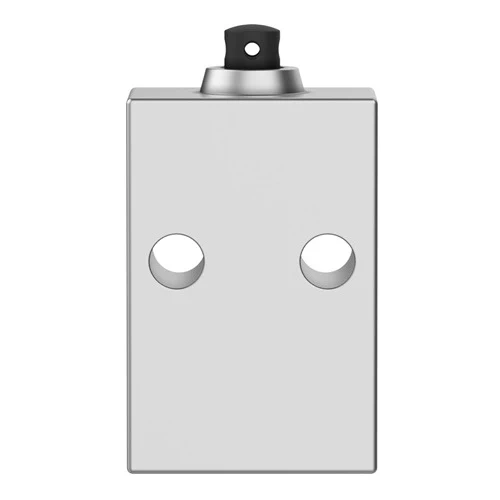

The Festo V-3-M5 Stem Actuated Valve (MPN: 3626) delivers compact, precise, and manual control for pneumatic systems, engineered for high reliability and long service life in demanding industrial applications. Its robust brass and stainless-steel construction ensures dependable operation even in harsh environments, making it ideal for use in control panels, test benches, and automation setups where tactile valve actuation is required.
Key Features:
Manual Precision Control: Designed for manual actuation via a durable stem mechanism, enabling direct and intuitive control of air flow in pneumatic systems.
Compact M5 Threaded Port: Space-saving design with an M5 port, ideal for integration into small-format equipment or tight installation spaces.
Reliable Sealing Performance: Ensures minimal leakage and long-term stability, thanks to optimized internal sealing elements and high-quality manufacturing.
Durable Build Quality: Built from corrosion-resistant materials to withstand rigorous operating conditions and maintain consistent performance over time.
Versatile Mounting: Can be mounted in various configurations, making it adaptable to different pneumatic circuit layouts or machine designs.
Benefits:
Increased Operational Control: Allows operators or systems to isolate or direct air flow easily without requiring electrical control.
Maintenance Friendly: Simple, tool-free actuation with low risk of failure, supporting ease of use in both OEM and retrofit applications.
High Versatility: Suited for educational equipment, laboratory use, or custom pneumatic systems requiring compact valve solutions.
Minimal Downtime: Engineered for reliability, minimizing failure points and supporting extended usage cycles with low maintenance demand.
Applications:
Pneumatic control panels and diagnostic systems
Automation R&D and prototype setups
Manual override circuits in industrial automation
Laboratory pneumatic experiments or training systems
The Festo V-3-M5 Stem Actuated Valve is a dependable, compact solution for hands-on pneumatic flow control, reflecting Festo’s commitment to quality and reliability in precision components for automation technology.
| Feature | Specification |
|---|---|
| Valve function | 3/2, closed, monostable |
| Actuation type | Mechanical |
| Standard nominal flow rate | 80 l/min |
| Pneumatic working port | M5 |
| Operating pressure | -0.95 bar … 8 bar |
| Structural design | Plate seat |
| Nominal width | 2 mm |
| Type of control | Direct |
| Symbol | 00991095 |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C … 60 °C |
| Actuating force | 23 N |
| Product weight25 g | 25 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Seals material | NBR |
| Housing material | Die-cast zinc |
| Weight | 0.022 kg |
|---|
