$ 83.03
Manufacturer Part Number: Festo 539156

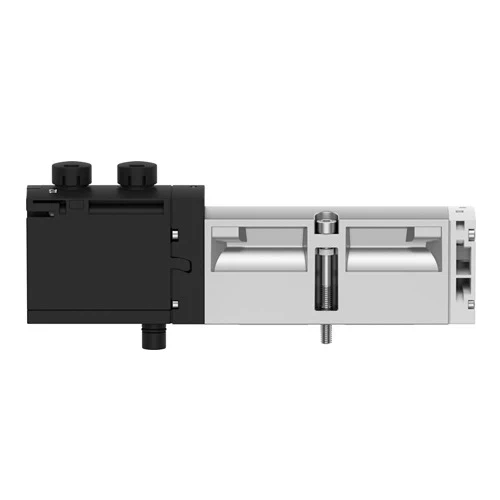

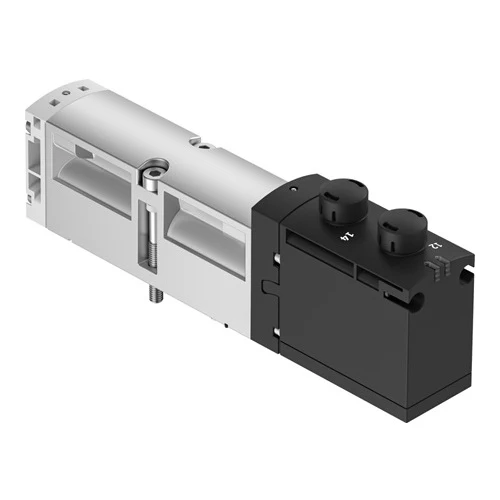

Festo Directional Control Valves: VSVA-B-B52-ZD-A1-1T1L
The Festo VSVA-B-B52-ZD-A1-1T1L air solenoid valve exemplifies precision engineering for robust pneumatic control, ideal for modern automated systems. With its compact design, powerful switching capabilities, and reliable operation, this valve is a key component in high-performance industrial automation environments.
Reliable 5/2-Way Functionality: Designed for controlling double-acting pneumatic actuators with spring return, ensuring dependable switching in demanding applications.
High Flow Rate: Optimized internal flow paths deliver high air throughput, supporting faster cycle times and improved system productivity.
Electrical Actuation: Solenoid-driven actuation enables precise control via PLCs or fieldbus interfaces, ensuring rapid and accurate valve response.
Robust Construction: Built to handle industrial conditions, this valve features durable materials and long service life even under continuous use.
Standardized Porting: Simplifies installation and integration with existing pneumatic systems using standardized port sizes and electrical connectors.
Enhanced Control Accuracy: Supports reliable motion control for actuators, cylinders, and tooling in automated setups.
Compact Form Factor: Saves space within control panels or valve terminals, especially in modular or distributed systems.
Minimized Downtime: Proven design minimizes failure points and supports quick replacement or maintenance cycles.
Energy-Efficient Operation: Helps reduce compressed air usage and power consumption with efficient switching behavior.
Automation Lines: Integral to pneumatic control of actuators in assembly and material handling systems.
Packaging Systems: Ensures precise control in high-speed packaging and sorting machinery.
Pneumatic Tooling: Ideal for integration with robotic end-effectors, pick-and-place units, and industrial presses.
Custom Machine Builds: Trusted in OEM applications requiring modular, scalable pneumatic control.
The Festo VSVA-B-B52-ZD-A1-1T1L solenoid valve represents a reliable, high-performance solution for controlling compressed air flow in a wide variety of automation tasks. Engineered for reliability, speed, and integration flexibility, it is a smart investment for manufacturers focused on uptime and efficiency.
| Feature | Specification |
|---|---|
| Valve function | 5/2, bistable |
| Actuation type | Electrical |
| Width | 26 mm |
| Standard nominal flow rate | 1100 l/min |
| Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | -0.09 MPa … 1 Mpa |
| Operating pressure | -0.9 bar … 10 bar |
| Structural design | Piston gate valve |
| Certification | c UL us – Recognized (OL) |
| Degree of protection | IP65 NEMA 4 |
| Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External Internal |
| Flow direction | Any |
| Symbol | 00992941 |
| Lap | Overlap |
| Signal status display | LED |
| Pilot pressure Mpa | 0.3 MPa … 1 Mpa |
| Pilot pressure | 3 bar … 10 bar |
| Flow rate of pneumatic valve | 1400 l/min |
| Flow rate of pneumatic valve on individual sub-base | 1200 l/min |
| Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1350 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100 l/min |
| Changeover time | 18 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1200 µs |
| Max. negative test pulse on 1 signal | 1100 µs |
| Max. current consumption | 72 mA |
| Nominal operating voltage DC | 24 V |
| Coil characteristics | 24 V DC: 1.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Relative air humidity | 0 – 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 276 g |
| Electrical connection | Plug-in as per ISO 15407-2 |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
| Note on materials | RoHS-compliant |
| Seals material | FPM HNBR NBR |
| Housing material | Die-cast aluminum PA |
| Material of screws | Steel, galvanized |
