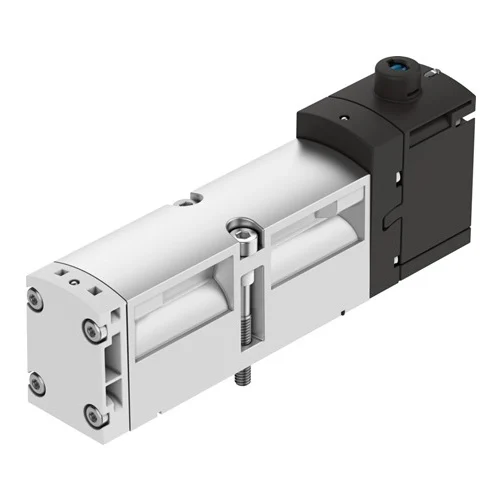

VSVA-B-M52-AZD-A1-1T1L Festo Solenoid Valve

Technical Overview

The VSVA-B-M52-AZD-A1-1T1L is a high-performance 5/2-way monostable solenoid valve featuring a piston gate design with pneumatic spring reset. Constructed with a 26 mm width and utilizing a soft sealing principle, this electric-actuated valve offers a standard nominal flow rate of 1100 l/min. It is designed for mounting on sub-bases according to ISO 15407-2 standards and includes a built-in LED signal status display for operational monitoring. The unit is optimized for compressed air operation under varying pressures from -0.9 bar to 10 bar, meeting IP65 and NEMA 4 protection ratings for industrial environments.

Key Features

5/2-way monostable valve function
Piston gate valve design with pneumatic spring reset
Electric actuation with 24V DC nominal operating voltage
IP65 and NEMA 4 degree of protection
Integrated LED signal status display
Manual override with detenting, non-detenting, and covered options
RoHS-compliant materials with die-cast aluminium housing
Standardized mounting to ISO 15407-2

Technical Specification Matrix

Parameter	Value
Valve function	5/2-way, monostable
Type of actuation	Electric
Construction width	26 mm
Standard nominal flow rate (standardised to DIN 1343)	1100 l/min
pneumatic working port	Sub-base size 26 mm to ISO 15407-1 Sub-base size 01 to VDMA 24563 G1/4
Operating voltage	24V DC
Operating pressure (MPa)	-0.09 MPa ... 1 MPa
Operating pressure (bar)	-0.9 bar ... 10 bar
Design	Piston gate valve
Type of reset	Pneumatic spring
Approval	c UL us - Recognized (OL)
Degree of protection	IP65 NEMA 4
Exhaust-air function	With flow control option Via throttle plate Via individual sub-base
Sealing principle	Soft
Mounting position	optional
Manual override	Detenting Non-detenting Covered
Type of piloting	Pilot actuated
Pilot air supply	External Internal
Flow direction	optional
Symbol	00991050
lap	Overlap
Signal status display	LED
Pilot pressure (MPa)	0.3 MPa ... 1 MPa
Pilot pressure (bar)	3 bar ... 10 bar
Flow rate of valve	1400 l/min
Flow rate of valve on individual sub-base	1200 l/min
Valve flow rate, pneumatically linked, flow optimized	1350 l/min
Flow rate of pneumatically interlinked valve	1100 l/min
Switching time off	45 ms
Switching time on	25 ms
Duty cycle	100%
Max. positive test pulse with 0 signal	1200 µs
Max. negative test pulse with 1 signal	1100 µs
Max. current consumption	72 mA
Nominal operating voltage DC	24 V
Characteristic coil data	24 V DC: 1.6 W
Immunity to surge	2.5 kV
Pollution degree	3
Permissible voltage fluctuations	+/- 10 %
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Relative air humidity	0 - 90%
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature	-5 °C ... 50 °C
Product weight	293 g
Electrical connection	Plug-in To ISO 15407-2
Type of mounting	On sub-base
Pilot air port 12/14	Sub-base size 26 mm to ISO 15407-2
Pilot exhaust port 82/84	Ducted Not ducted as per standard Either:
Pneumatic connection, port 1	Sub-base size 26 mm to ISO 15407-2
Pneumatic connection, port 2	Sub-base size 26 mm to ISO 15407-2
Pneumatic connection, port 3	Sub-base size 26 mm to ISO 15407-2
Pneumatic connection, port 4	Sub-base size 26 mm to ISO 15407-2
Pneumatic connection, port 5	Sub-base size 26 mm to ISO 15407-2
Note on materials	RoHS-compliant
Material seals	FPM HNBR NBR
Material housing	Die-cast aluminium PA
Material screws	Galvanised steel

Industrial Applications

1. Automotive Body-in-White Welding Fixture Clamping

In the automated assembly of vehicle chassis (Body-in-White), this valve is integrated into the VTSA valve terminal islands to control the pneumatic toggle clamps that secure sheet metal panels during robotic welding.

Problem Solved

Ensures failsafe operation where the clamps default to a safe state (locked or open) upon power loss due to the monostable spring return. The ISO 15407-1 standardization allows for rapid 'hot-swap' replacement during line stoppages, minimizing downtime in high-volume automotive production.

ISO 15407-1 Size 01Monostable 5/2-way1100 l/min Flow RateIP65 ProtectionVTSA Valve Terminal

2. High-Speed Conveyor Reject Pusher System

Used in packaging lines to actuate a double-acting pneumatic cylinder that rapidly ejects defective products from a moving conveyor belt.

Problem Solved

The valve's fast switching time (25ms ON) and 100% duty cycle capability allow it to keep up with high-throughput sorting lines (e.g., >100 parts/minute). The pneumatic spring reset ensures the pusher retracts immediately if the electrical signal is lost, preventing jams.

Switching time 25ms100% Duty CycleFlow optimized 1350 l/minPneumatic Spring Reset24V DC Actuation

3. Vacuum Switching for Robotic Palletizing Grippers

Controls the vacuum supply to a suction cup array on a robotic arm, utilizing the valve's ability to operate with negative pressure (-0.9 bar) when supplied with external pilot air.

Problem Solved

Allows a single valve to switch between vacuum (grip) and atmospheric pressure (release) for handling porous corrugated boxes. The external pilot supply keeps the valve switching reliably even when the main line is under vacuum, while the high flow (1400 l/min) compensates for vacuum leakage on cardboard surfaces.

Operating pressure -0.9 barExternal Pilot Air SupplyVacuum ApplicationPilot Pressure 3-10 barFlow Rate 1400 l/min
