USD 327.77

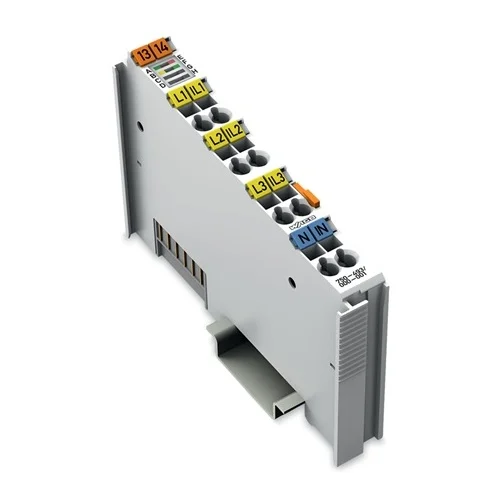

3-phase power measurement module, 480 VAC, 5 A, true RMS, 16-bit resolution, 4 kV isolation for WAGO 750 I/O systems.
3-phase power measurement module, 480 VAC, 5 A, true RMS, 16-bit resolution, 4 kV isolation for WAGO 750 I/O systems.
| Parameter | Value |
|---|---|
| Type of signal | Power measurement |
| Measurement inputs | 6 total (3 voltage measurement inputs, 3 current measurement inputs) |
| Measuring current (max.) | 5 A |
| Measuring voltage (max.) | 500 VAC, 3 phases |
| Rated voltage | 277 VAC/DC; 480 VAC line-to-line |
| Measurement method | True RMS measurement |
| Resolution | 16 bit |
| Input resistance, voltage path (typ.) | 1071 kΩ |
| Input resistance, current path (typ.) | 5 mΩ |
| Measurement error | 0.5% max. of full-scale value |
| Frequency range (mains frequency) | 45 … 65 Hz |
| Frequency range with deactivated DC filter | 0 … 2000 Hz |
| Limit frequency | 7.2 kHz |
| Supply voltage (system) | 5 VDC via data contacts |
| Current consumption (5 V system supply) | 100 mA |
| Isolation | 4 kV system/field |
| Rated surge voltage | 4 kV |
| Connection technology | 8 x CAGE CLAMP |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 in |
| Calculated values | Active power, active energy, grid frequency, cos φ |
| Physical Weight (kg) | 0.048 |
| Dimensions L x W x H (cm) | 10 x 1.2 x 6.78 |
Measures voltage and current on a 480 VAC three-phase feeder and computes active power and energy for load accounting.
Provides real power visibility where direct energy monitoring is required on a 3-phase feeder.
Integrates into WAGO 750/753 systems to capture electrical load behavior at the machine level with system/field isolation.
Enables distributed machine energy diagnostics without a separate power meter platform.
Uses voltage and current inputs plus phase-sequence indication to detect undervoltage, wiring mistakes, and abnormal operating states.
Helps prevent commissioning errors and detect electrical faults early in three-phase equipment.
