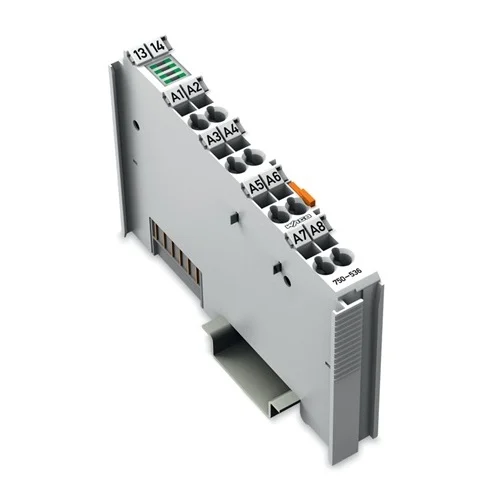

WAGO 750-536 8-Channel 24VDC Digital Output Module

Technical Overview

8-channel, 24VDC, 0.5A low-side switching digital output module with short-circuit protection and 500V isolation.

Key Features

8 digital outputs
24 VDC output voltage
0.5 A output current per channel
Low-side switching
Short-circuit protected outputs
500 V system/supply isolation
CAGE CLAMP® connection technology
DIN-35 rail mounting
Compact 12 mm width
Supports resistive, inductive, and lamp loads
Operating temperature 0 to +55 °C
IP20 protection class

Technical Specification Matrix

Parameter	Value
Number of digital outputs	8
Type of signal voltage	DC 24 V
Output current per channel	0.5 A
Output characteristic	Low-side switching
System supply voltage	DC 5 V
Current consumption, system supply (5 V)	25 mA
Field supply voltage	DC 24 V (-25 % to +30 %)
Current consumption, field supply (module with no external load)	12 mA
Isolation	500 V system/supply
Max. switching frequency	2 kHz
Type of load	Resistive, inductive, lamps
Reverse voltage protection	Yes
Protection class	IP20
Operating temperature	0 to +55 °C
Storage temperature	-40 to +85 °C
Connection technology	8 x CAGE CLAMP®
Solid conductor cross-section	0.08 to 2.5 mm² / 28 to 14 AWG
Fine-stranded conductor cross-section	0.08 to 2.5 mm² / 28 to 14 AWG
Strip length	8 to 9 mm / 0.31 to 0.35 inch
Housing material	Polycarbonate, polyamide 6.6
Physical Weight (kg)	0.05
Dimensions L x W x H (cm)	10 x 1.2 x 6.78

Industrial Applications

1. Industrial Machine Control

This module can be used to control various actuators like small relays, indicator lights, or solenoid valves in automated machinery. Its 8 channels provide sufficient density for common control tasks.

Problem Solved

Enables precise and safe control of multiple 24VDC actuators in an industrial machine, protecting against short circuits and providing electrical isolation between the control system and the field devices.

PLC control24VDC actuatorssolenoid valvesindicator lampsshort-circuit protectionelectrical isolation

2. Building Automation for Lighting/Shutter Control

In building automation systems, this module can switch 24VDC circuits for LED lighting, low-voltage blinds, or other building services.

Problem Solved

Provides a reliable and compact interface for a central building management system to control multiple 24VDC loads, ensuring safety with short-circuit protection and system isolation.

Building Management System (BMS)24VDC lightingshutter controllow-voltage applicationsdistributed I/OCAGE CLAMP wiring

3. Process Control for Small Motor/Valve Actuation

Suitable for process control applications where small 24VDC motors or process valves need to be actuated from a central control system.

Problem Solved

Offers a robust and electrically isolated solution for controlling up to eight 24VDC loads in a process environment, with protection features that enhance system reliability.

Process control24VDC motorsprocess valvesdiscrete outputcontrol system interfaceIP20 environment
