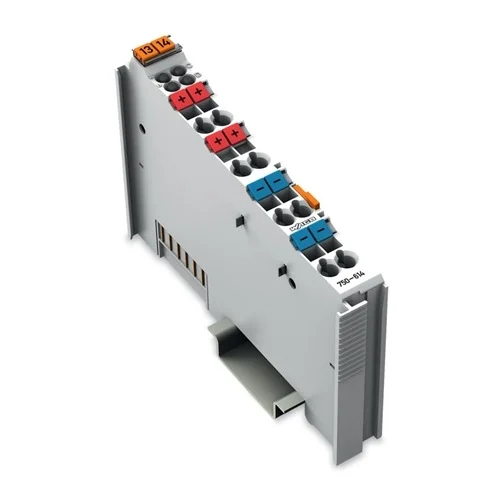

WAGO 750-614 Potential Distribution Module

Technical Overview

Distributes 0-230 VAC/DC field supply, 5 VDC system supply, 10A current, IP20, CAGE CLAMP connections.

Key Features

Potential distribution module for WAGO I/O systems.
Voltage range: 0 to 230 V AC/DC.
System supply voltage: 5 V DC via data contacts.
Field supply voltage: up to 230 V AC/DC via power jumper contacts.
Current capacity (power jumper contacts): 10 A.
8 field supply terminals for multiple wiring connections.
CAGE CLAMP spring terminals for secure wiring.
DIN-35 rail mounting.
Compact 12 mm module width for high-density installations.
IP20 protection rating.
Light gray color.
Compatible with WAGO I/O System 750 and 753.
Housing material: Polycarbonate; polyamide 6.6.

Technical Specification Matrix

Parameter	Value
Signal type (voltage)	0 … 230 VAC/DC
Supply voltage (system)	5 VDC (via data contacts)
Supply voltage (field)	230 VAC/DC (via power jumper contacts)
Number of incoming power jumper contacts	2
Number of outgoing power jumper contacts	2
Current carrying capacity (power jumper contacts)	10 A
Connection technology: field supply	8 x CAGE CLAMP®
Solid conductor	0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor	0.08 … 2.5 mm² / 28 … 14 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 inches
Mounting type	DIN-35 rail
Ambient temperature (operation)	0 … +55 °C
Ambient temperature (storage)	-40 … +85 °C
Protection type	IP20
Pollution degree	2 per IEC 61131-2
Operating altitude	0 … 2000 m / 0 … 6562 ft
Relative humidity (without condensation)	95 %
Vibration resistance	4g per IEC 60068-2-6
Shock resistance	15g per IEC 60068-2-27
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	6.98 x 1.2 x 10

Industrial Applications

1. Industrial Sensor/Actuator Power Distribution in Control Cabinets

In industrial control cabinets, numerous sensors and actuators require a stable power supply (0-230V AC/DC). This module provides a compact and efficient way to distribute this power from a single source to multiple field devices, eliminating cluttered wiring and the need for many individual terminal blocks.

Problem Solved

Reduces wiring complexity and panel space by consolidating power distribution for multiple field devices operating within a 0-230V AC/DC range and requiring up to 10A current.

Industrial automationField devicesSensor powerActuator powerControl cabinetWiring efficiency230 VAC/DC10 A

2. Modular Machine Control Systems

For modular machinery where different sections require localized power distribution for various components (e.g., small motors, indicator lights, safety interlocks). The DIN-rail mounting and compact size allow for integration into distributed I/O nodes, facilitating modular and scalable machine design.

Problem Solved

Enables flexible and space-saving power distribution within modular machine architectures, simplifying wiring for diverse components (0-230V AC/DC) through its compact 12mm width and DIN-rail compatibility.

Modular machineryDistributed I/OLocalized powerDIN-railControl systemsScalability12 mm width0-230 VAC/DC

3. Building Automation for Lighting/HVAC Subsystems

In building automation, lighting circuits, HVAC dampers, or other low-power auxiliary systems often require distributed 0-230V AC/DC supply. The Wago 750-614 can efficiently tap and distribute power within a building's control panel, ensuring reliable operation of various subsystems while maintaining an IP20 protection level.

Problem Solved

Streamlines power distribution for building automation subsystems, reducing installation time and improving panel organization for 0-230V AC/DC applications, while the IP20 rating ensures basic protection in controlled environments.

Building automationLighting controlHVAC systemsPower distributionControl panelAuxiliary systems0-230 VAC/DCIP20
