USD 1,158.09

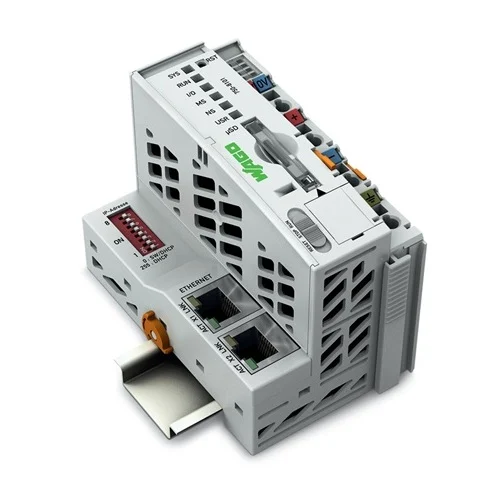

DIN-rail PLC with 2x Ethernet, 24 VDC supply, Cortex A8 600 MHz CPU, 256 MB RAM, 256 MB flash, microSD up to 32 GB.
DIN-rail PLC with 2x Ethernet, 24 VDC supply, Cortex A8 600 MHz CPU, 256 MB RAM, 256 MB flash, microSD up to 32 GB.
| Parameter | Value |
|---|---|
| Item number | 750-8101 |
| Product type | Controller PFC100; 2 x ETHERNET |
| Operating system | Real-time Linux 3.18 (with RT-Preempt patch) |
| CPU | Cortex A8; 600 MHz |
| Programming environment | e!COCKPIT (based on CODESYS V3) |
| Communication protocols | Modbus (TCP, UDP); Ethernet |
| Baud rate | 10/100 Mbit/s |
| Main memory (RAM) | 256 MB |
| Internal memory (flash) | 256 MB |
| Non-volatile hardware memory | 64 KB |
| Program memory | 12 MB |
| Data memory | 12 MB |
| Memory card type | microSD up to 32 GB |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Supply voltage (system) | 24 VDC (-25 … +30 %) |
| Input current (typ.) at nominal load (24 V) | 550 mA |
| Total current (system supply) | 1700 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Current carrying capacity (power jumper contacts) | 10 A |
| Isolation | 500 V system/field |
| Connection technology (communication/fieldbus) | 2 x RJ-45 |
| Connection technology (system supply) | 2 x CAGE CLAMP® |
| Connection technology (field supply) | 6 x CAGE CLAMP® |
| Strip length | 8 … 9 mm |
| Width | 61.5 mm |
| Height | 100 mm |
| Depth | 71.9 mm |
| Depth from upper-edge of DIN-rail | 64.7 mm |
| Weight | 127.9 g |
| Ingress protection | IP20 |
| Physical Weight (kg) | 0.13 |
| Dimensions L x W x H (cm) | 7.19 x 6.15 x 10 |
The 24 VDC DIN-rail form factor, dual Ethernet, and direct WAGO I/O integration make it suitable for controlling compact skids with distributed I/O blocks.
Reduces panel complexity while providing deterministic control and networked I/O expansion.
Real-time Linux, Modbus TCP/UDP support, and 256 MB memory support supervisory logic, data handling, and integration into process networks.
Bridges field devices and higher-level systems without requiring a larger PLC platform.
The IP20 controller with CAGE CLAMP supply connections and 500 V system/field isolation is well suited to replacing older controllers inside enclosed cabinets.
Enables modernization of existing panels with minimal wiring changes and safe separation between system and field power.
