USD 1,392.29

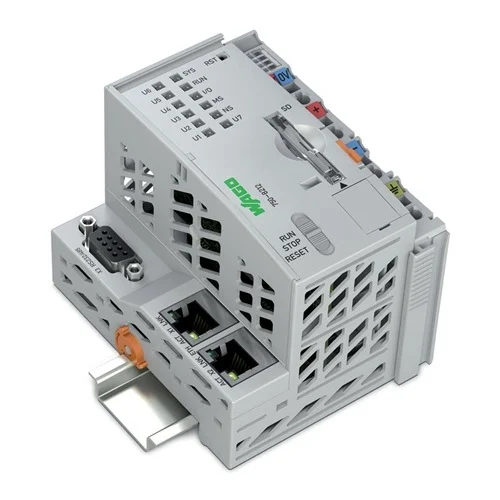

Cortex-A8 1 GHz PLC with dual Ethernet, RS-232/RS-485, 24 VDC supply, Real-time Linux, OPC UA, MQTT, and modular 750/753 I/O support.
Cortex-A8 1 GHz PLC with dual Ethernet, RS-232/RS-485, 24 VDC supply, Real-time Linux, OPC UA, MQTT, and modular 750/753 I/O support.
| Parameter | Value |
|---|---|
| CPU | Cortex A8; 1 GHz |
| Operating system | Real-time Linux (with PREEMPT_RT patch) |
| Programming languages per IEC 61131-3 | IL, LD, FBD, CFC, ST, SFC |
| Programming environment | CODESYS V3.5, Firmware Release 23 or higher; e!COCKPIT up to Firmware Release 22; WAGO-I/O-PRO V2.3 up to Firmware Release 22 |
| Transmission rate ETHERNET | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 512 MB |
| Internal memory (flash) | 4096 MB |
| Non-volatile hardware memory | 128 KB |
| Program memory CODESYS V2 | 16 MB |
| Program memory CODESYS V3 | 32 MB |
| Data memory CODESYS V2 | 64 MB |
| Data memory CODESYS V3 | 128 MB |
| Non-volatile software memory | 128 KB |
| Type of memory card | SD and SDHC up to 32 GB |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (internal) max. | 1000 words/1000 words |
| Input and output process image (Modbus) max. | CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words |
| Drift – system clock (25 °C) | 20 ppm |
| Drift – Real Time Clock (25 °C) | 3 ppm |
| RTC backup time (25 °C) | 30 days |
| Supply voltage (system) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Input current (typ.) at nominal load (24 V) | 550 mA |
| Total current (system supply) | 1700 mA |
| Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Current carrying capacity (power jumper contacts) | 10 A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |
| Connection technology: communication/fieldbus | Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 78.6 mm / 3.094 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 71.9 mm / 2.831 inches |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
| Mounting type | DIN-35 rail |
| Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 2.272 MJ |
| Weight | 214.8 g |
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m without temperature derating; 2000 … 5000 m with temperature derating; 5000 m max. |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H2S contaminant concentration at 75 % RH | 10 ppm |
| Permissible SO2 contaminant concentration at 75 % RH | 25 ppm |
| Country of origin | DE |
| Customs tariff number | 85371091990 |
| UNSPSC | 32151705 |
| eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 |
| ETIM 9.0 | EC000236 |
| ETIM 10.0 | EC000236 |
| ECCN | NO US CLASSIFICATION |
| Physical Weight (kg) | 0.21 |
| Dimensions L x W x H (cm) | 7.19 x 7.86 x 10 |
Provides deterministic control for packaging, bottling, and manufacturing machines using IEC 61131-3 logic, dual Ethernet, and direct 750/753 I/O expansion.
Replaces fragmented hardwired control with a compact PLC that can network local I/O, serial devices, and industrial Ethernet protocols in one controller.
Suitable for HVAC, lighting, and energy-management systems where Web-Visu, OPC UA, MQTT, and optional BACnet/IP simplify integration with higher-level systems.
Solves protocol bridging between field devices and supervisory software while supporting browser-based commissioning and visualization.
The IP20 controller with vibration and shock ratings, pollutant exposure tolerance, and marine application EMC compliance can serve as a control node in protected cabinets onboard equipment.
Enables control electronics deployment in environments with mechanical stress and contaminant exposure where certified communication and update support are important.
