4-channel 24 VDC breaker with adjustable 2–10 A per channel, remote control, IP20 housing, DIN-rail mount.

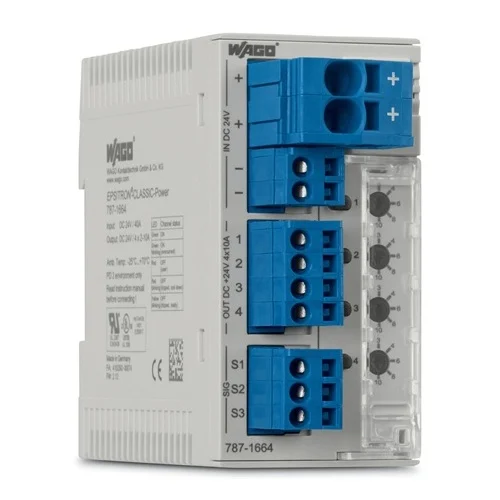

4-channel electronic circuit breaker for 24 VDC distribution, with adjustable per-channel output current from 2 to 10 A, remote reset/control, and communication signaling. The device accepts 18 to 30 VDC input, provides 4 x 24 VDC outputs, includes selectable trip behavior from 16 ms to 100 s, and is DIN-rail mounted in a compact 45 mm x 90 mm housing. The official datasheet lists IP20 protection, Class III insulation, 0.5 kV isolation between connectors and housing, and a 170 g mass.
| Parameter | Value |
|---|---|
| Nominal input voltage | 24 VDC |
| Input voltage range | 18 to 30 VDC |
| Total number of channels | 4 |
| Nominal output voltage | 4 x 24 VDC |
| Nominal output current | 4 x 2 / 3 / 4 / 6 / 8 / 10 A (adjustable per channel via selector switch) |
| Default setting | 10 A; switched on |
| Trip time | 16 ms to 100 s (load-dependent) |
| Switch-on capacity | > 50000 µF per channel |
| Voltage drop | ≤ 200 mV (Input (+)) |
| Power loss | ≤ 0.84 W (no load); ≤ 10 W (4 x 10 A) |
| Efficiency (typ.) | 99% |
| Isolation voltage (connectors – housing) | DC 0.5 kV |
| Protection class | III |
| Protection type | IP20 (per EN 60529) |
| Resistance to reverse feed | ≤ DC 35 V |
| Pollution degree | 2 |
| Transient suppression (primary) | Suppressor diode (33 V) |
| Internal fuse | T 15 A per channel |
| Signaling | 4 x LED (green/red/orange); 1 x remote control input (S1); 2 x active signal outputs (S2; S3) |
| Operation status indicator | Green LED (channel OK); red LED (tripped channel) |
| Remote input | Reactivation of all tripped channels via 15 to 30 VDC pulse for minimum 500 ms |
| Mounting type | DIN-35 rail |
| Width | 45 mm |
| Height | 90 mm |
| Depth from upper edge of DIN-rail | 115.5 mm |
| Weight | 170 g |
Protects multiple downstream 24 VDC branches in one compact DIN-rail module while maintaining per-channel adjustability for mixed load sizes.
Prevents a single faulted branch from collapsing the entire 24 VDC supply bus.
Fits control panels feeding solenoids, relays, and small DC actuators because each channel can be set independently from 2 to 10 A with load-dependent trip timing.
Matches protection to varying inrush and operating currents across different loads.
Supports remotely resettable 24 VDC auxiliary power segments using the S1 input and active status outputs for PLC diagnostics.
Enables fast fault recovery and centralized monitoring without opening the panel.
