USD 157.44

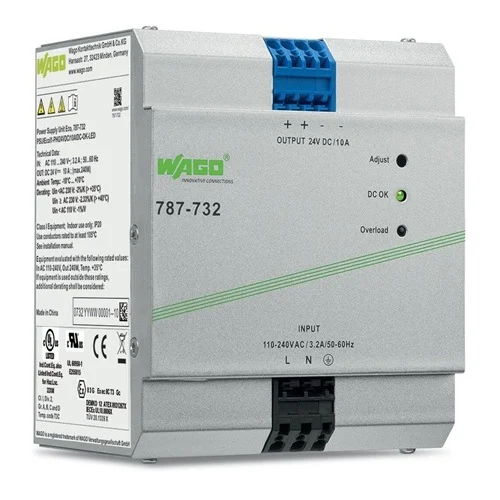

Single-phase 24VDC 10A DIN-rail power supply with 85-264VAC input, IP20 protection, and CAGE CLAMP® terminals.
Single-phase 24VDC 10A DIN-rail power supply with 85-264VAC input, IP20 protection, and CAGE CLAMP® terminals.
| Parameter | Value |
|---|---|
| Output Power Max | 240 W |
| Output Voltage (DC) | 24 VDC (adjustable 22-28 VDC) |
| Output Current (DC) | 10 A |
| Input Voltage (AC) | 85 VAC to 264 VAC (Nominal 100-240 VAC) |
| Input Voltage (DC) | 130 VDC to 373 VDC |
| Frequency Range | 47 Hz to 63 Hz |
| Efficiency (Typical) | 82% (86% at 230 VAC) |
| Protection Rating | IP20 (according to EN 60529) |
| Operating Temperature | -10 °C to +70 °C (Derating > 40 °C) |
| Storage Temperature | -25 °C to +85 °C |
| Connection Technology | CAGE CLAMP® (WAGO 745 Series) |
| Conductor Cross-sections | 0.08 mm² to 4 mm² / AWG 28 to 12 |
| Mounting Type | DIN-35 rail mount (EN 60715) |
| Hold-up Time | 20 ms at 230 VAC |
| MTBF | 480,000 hours (acc. IEC 61709) |
| Physical Weight (kg) | 1.2 |
| Dimensions L x W x H (cm) | 13.6 x 11 x 9.2 |
Provides a stable and reliable 24VDC power source for sensitive control components within industrial automation cabinets.
Ensures consistent operation of PLCs, HMIs, sensors, and actuators by supplying regulated power and protection against electrical disturbances. The DIN-rail mounting simplifies integration into control panels.
Supplies regulated 24VDC power to various Building Management System components.
Offers a compact and efficient solution for distributed power needs for building automation controllers, HVAC system relays, and access control devices. Its natural convection cooling allows for quiet operation.
Provides a dedicated and stable 24VDC power supply for critical safety components in industrial machinery.
Ensures safety relays, light curtains, and emergency stop buttons receive uninterrupted and regulated power, crucial for safe machine operation and compliance with safety standards, due to its electrically isolated output and protection features.
