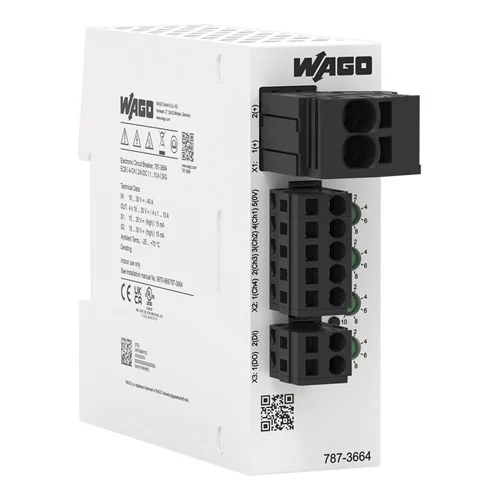

WAGO 787 Series 4-Channel Electronic Circuit Breaker

Technical Overview

4-channel 24VDC electronic circuit breaker with 1-10A adjustable output and IP20 protection.

Key Features

Space-saving electronic circuit breaker with four independent channels.
Nominal current adjustable from 1 to 10 A per channel via selector switch.
Switch-on capacity greater than 50,000 μF per channel.
Illuminated, three-colored button per channel for switching (on/off), resetting, and diagnostics.
Time-delayed switching of channels for enhanced system stability.
Tripped message (group signal) for fault indication.
Remote input for resetting tripped channels or switching channels on/off.
Compact 32mm wide design for efficient use of panel space.
Operating temperature range of -25 to 70 °C.
IP20 protection rating per EN 60529.

Technical Specification Matrix

Parameter	Value
Input Voltage (Nominal)	24 VDC
Input Voltage Range	18 ... 30 VDC
Output Voltage (Nominal)	4 x 24 VDC
Output Voltage Range	18 ... 30 VDC (Ue − voltage drop)
Nominal Output Current (per channel)	4 x 1 / 2 / 4 / 6 / 8 / 10 A (adjustable)
Total Number of Channels	4
IP Rating	IP20 per EN 60529
Operating Temperature	-25 to 70 °C
Switch-on Capacity (per channel)	> 50,000 μF
Voltage Drop	≤ 250 mV (Input (+))
Trip Time	16 ms … 100 s (load-dependent)
Physical Weight (kg)	0.15
Dimensions L x W x H (cm)	12.8 x 3.2 x 9.5

Industrial Applications

1. Selective Protection for 24VDC Industrial Control Systems

This electronic circuit breaker provides precise, adjustable 1-10A protection for up to four individual 24VDC load circuits within an industrial control panel. Its ability to selectively trip a single faulty channel minimizes downtime for critical processes.

Problem Solved

Prevents widespread system shutdowns due to overcurrents in individual 24VDC components (e.g., sensors, actuators, PLCs) by isolating only the affected circuit, ensuring high system availability.
