5-port 10/100 Mbps DIN-rail switch; 18–30 VDC input, Auto MDI/MDI-X, IP30, 0–70 °C, compact industrial footprint.

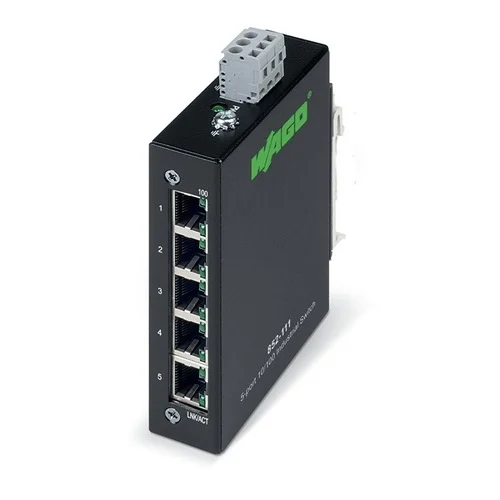

WAGO 852-111 is a compact DIN-rail industrial Ethernet switch with 5 RJ-45 ports for 10/100 Mbps copper networking. The manufacturer installation guide specifies a 18~30 VDC supply input, support for auto-negotiation and auto MDI/MDI-X, and an operating temperature range of 0 to 70 °C. Distributor data identifies the device as an obsolete fixed 5-port industrial switch with IP30 ingress protection and DIN-rail mounting. The ECO-family documentation also lists the physical envelope as 23.4 x 109.2 x 73.8 mm.
| Parameter | Value |
|---|---|
| Ethernet ports | 5 |
| Port type | RJ-45 copper |
| Data rate | 10/100 Mbps |
| Supply voltage | 18~30 V DC |
| Operating temperature | 0~70 °C |
| Mounting | DIN rail |
| Ingress protection | IP30 |
| Auto-negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Dimensions (H x W x D) | 23.4 x 109.2 x 73.8 mm |
The 5-port 10/100 Mbps layout and DIN-rail footprint make it suitable for collecting several machine nodes into a local control network inside small electrical enclosures.
Reduces cabling complexity in space-constrained panels while providing a simple industrial Ethernet fan-out point.
The 18~30 VDC input and auto MDI/MDI-X help integrate older field devices into an industrial Ethernet segment without requiring crossover cables or specialized power conversion.
Simplifies retrofitting legacy equipment into modern Ethernet-based systems.
The compact 23.4 x 109.2 x 73.8 mm package and IP30 rating suit protected cabinet environments where a small, reliable switch is needed for service laptops, HMIs, and nearby devices.
Provides a small protected network hub inside control cabinets without consuming significant rail space.
