Configurable analog signal isolator with 24 VDC supply, 2500 V isolation, 6 mm housing, and voltage/current I/O.

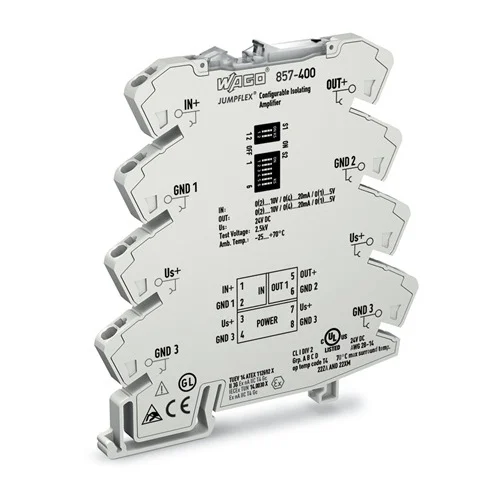

DIN-rail isolation amplifier with configurable current/voltage input and output, 24 VDC supply, push-in CAGE CLAMP connection, and 2500 V isolation. The module is designed for signal separation and conditioning in industrial analog loops, with DIP-switch configuration and zero/span adjustment. Official WAGO documentation lists hazardous-location approvals and a compact 6 mm housing for high-density panel builds.
| Parameter | Value |
|---|---|
| Input signal voltage range | 0…5 V; 1…5 V; 0…10 V; 2…10 V (calibrated switching) |
| Input signal current range | 0…20 mA; 4…20 mA (calibrated switching) |
| Input resistance (current input) | ≤ 50 Ω |
| Input resistance (voltage input) | ≥ 100 kΩ |
| Max. input current | 50 mA |
| Max. input voltage | 30 V |
| Zero/span adjustment | ± 3% of upper-range value |
| Output range | 0…20 mA, 0…10 V (configurable) |
| Supply voltage | 24 VDC |
| Isolation | 2500 V |
| Connection technology | Push-in CAGE CLAMP® |
| Mounting type | DIN-35 rail |
| Operating temperature | -25…70 °C |
| Storage temperature | -40…85 °C |
| Width | 6 mm |
| Height from upper-edge of DIN-35 rail | 97.8 mm |
| Depth | 94 mm |
| Weight | 36.8 g |
| GTIN | 4045454471293 |
| Country of origin | DE |
| Product group | 6 (Interface Electronics) |
| Approval references | IECEx, ATEX, UL hazardous location approvals listed in manufacturer documentation |
Use as an interface between field transmitters and PLC analog cards when 0/4–20 mA or 0/1–10 V signals must be isolated and converted without adding panel bulk.
Breaks ground loops and conditions mixed analog standards in compact control panels.
Ideal where older voltage-based instrumentation must be standardized into current loops, or current loops must be converted back to voltage for modern controllers.
Allows mixed legacy and modern signal standards to coexist in the same cabinet with minimal width.
Suitable for signal demarcation between field equipment and safe-area PLC I/O when isolation and documented hazardous-location approvals are required.
Provides galvanic separation and compact panel packaging for safety-critical analog interfacing.
