USD 189.38
24 VDC analog voltage isolation amplifier, 6 mm slim module, 3-way isolated signal conditioning for 0(2)…10 V systems.

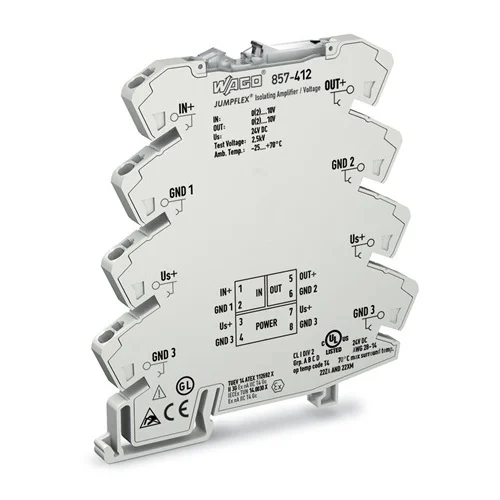

WAGO 857-412 is a pre-configured JUMPFLEX isolation amplifier for analog voltage signals. It provides voltage input to voltage output conversion with 24 VDC supply, 6 mm module width, and 3-way electrical isolation. Manufacturer and distributor datasheets confirm the unit is intended for analog signal conditioning, amplification, filtering, and galvanic separation in industrial control systems.
| Parameter | Value |
|---|---|
| Input signal type | Voltage |
| Input signal (voltage) | 0 ... 10 V; 2 ... 10 V |
| Output signal type | Voltage |
| Output signal (voltage) | 0 ... 10 V; 2 ... 10 V |
| Supply voltage | 24 VDC |
| Module width | 6 mm |
| Electrical isolation | 3-way isolation |
| Test voltage | 3 kV |
| Cross-section for conductors | 2.50 mm² |
| Current carrying capacity between 3/4 and 7/8 connections | 1 A max. |
| Height | 97.8 mm |
| Width | 94 mm |
| Thickness | 6 mm |
Used to separate a 0(2)…10 V field sensor signal from a PLC analog input while maintaining a voltage output format.
Prevents ground-loop errors and protects control electronics from noise and potential differences.
Ideal for conditioning voltage-based setpoints or sensor outputs before they enter a control system requiring standardized voltage levels.
Normalizes and stabilizes low-level analog voltage signals for reliable downstream processing.
Fits compact DIN-rail installations where a narrow 6 mm isolator is needed to add isolation to existing voltage signal paths without major panel redesign.
Adds electrical separation in space-constrained retrofit panels with minimal footprint.
