$ 80.04

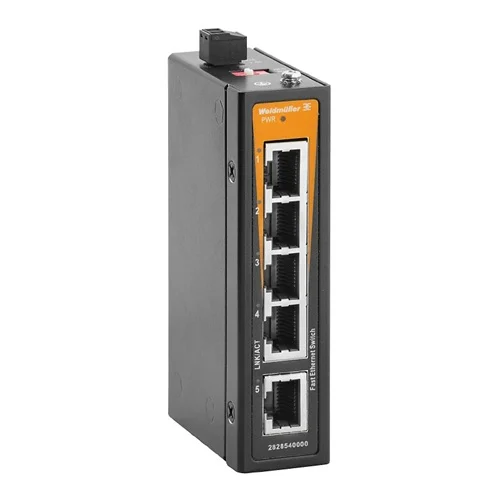

Weidmueller IE-SW-ELB-05-5TX is a compact industrial Ethernet switch with 5 RJ45 ports, QoS, and broadcast storm protection for reliable automation networks.
The Weidmueller IE-SW-ELB-05-5TX unmanaged Fast Ethernet switch is a compact industrial networking device designed to provide stable Ethernet communication in control panels and automation systems. Equipped with five 10/100Base-T(X) RJ45 ports, built-in Quality of Service, and broadcast storm protection, it addresses common network reliability issues in industrial environments. Its slim DIN-rail design, robust metal housing, and wide operating temperature range make it well suited for installations where space is limited and continuous operation is required. This switch delivers dependable Ethernet connectivity without configuration effort.
Designed for industrial users who value simplicity and reliability, the IE-SW-ELB-05-5TX supports traffic prioritization to ensure smooth transmission of time-critical automation data. Integrated broadcast storm protection helps maintain network stability by preventing excessive traffic from disrupting connected devices. The compact form factor and flexible mounting options reduce installation effort in crowded cabinets, while the wide-range AC and DC power input simplifies system design and lowers overall cost. These features combine to deliver a low-maintenance, long-life Ethernet switch suitable for factory automation and building infrastructure systems.
Why IE-SW-ELB-05-5TX?
The IE-SW-ELB-05-5TX is designed for engineers who want industrial Ethernet reliability without configuration overhead. Its compact metal housing, traffic prioritization, and broadcast storm protection deliver stable communication even in busy automation networks. With flexible AC/DC power input and DIN-rail mounting, it integrates easily into existing panels while maintaining long-term uptime. This balance of simplicity, durability, and industrial-grade performance makes it a practical choice for demanding environments.
What problem does it solve?
Industrial networks often fail due to uncontrolled traffic, limited panel space, or complex configuration requirements. The IE-SW-ELB-05-5TX addresses these challenges by stabilizing Ethernet communication through traffic prioritization and storm protection, while its slim design fits into crowded cabinets. It eliminates the need for managed switch setup, reducing commissioning time and preventing network disruptions that can impact automation performance.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Unmanaged Industrial Ethernet Switch | Simple plug-and-play operation without configuration |
| Ethernet Ports | 5 × RJ45, 10/100Base-T(X) | Reliable Fast Ethernet connectivity for field devices |
| Switching Technology | Store-and-Forward | Ensures data integrity by filtering faulty packets |
| Quality of Service (QoS) | IEEE 802.1p, 2 priority queues | Prioritizes time-critical automation data |
| Broadcast Storm Protection | Hardware-based, DIP-switch selectable | Prevents network overload and improves uptime |
| Industrial Protocol Support | PROFINET Conformance Class A | Suitable for real-time industrial automation networks |
| MAC Address Table | 1K entries | Stable communication with multiple connected devices |
| Packet Buffer | 448 kbit | Smooth data handling during traffic peaks |
| Backplane Bandwidth | 1 Gbit/s | Efficient internal data throughput |
| Power Supply Input | 12/24/48 V DC or 24 V AC, single input | Flexible integration into control panels |
| Power Protection | Reverse polarity & overload protection | Increased device safety and reliability |
| Mounting Method | DIN-rail mounting with rotatable clip | Easy installation in tight cabinets |
| Housing Material | Metal, IP40 protection | Durable design for industrial environments |
| Operating Temperature | -10 °C to +60 °C | Reliable operation in harsh conditions |
| Dimensions (W × H × D) | 26 × 103 × 64 mm | Compact footprint for space-limited installations |
| Compliance & Safety | UL, RoHS, EMC compliant | Meets global industrial standards |
| Typical Applications | Factory automation, building automation, machine networking | Stable Ethernet communication in industrial systems |
Download Weidmuller IE-SW-ELB-05-5TX (2828540000) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4064675369851 |
| Net Weight | 135 g |
Modern machine control cabinets demand reliable Ethernet communication within very limited space. The IE-SW-ELB-05-5TX fits easily into narrow DIN-rail enclosures while connecting PLCs, HMIs, drives, and distributed I/O modules. Its traffic prioritization ensures that control commands and feedback signals remain responsive, even when diagnostic or monitoring data increases network load. Broadcast storm protection prevents faulty devices from flooding the network, helping machines run smoothly. This combination reduces unexpected downtime and supports stable machine operation without adding configuration complexity.
In factory automation systems using PROFINET, consistent data timing is critical for maintaining production accuracy. The IE-SW-ELB-05-5TX supports prioritized Ethernet traffic, allowing real-time control data to move through the network with minimal delay. It is commonly used in conveyor systems, robotic cells, and packaging lines where controllers, sensors, and actuators must stay synchronized. The unmanaged design simplifies commissioning, while its industrial temperature tolerance ensures dependable operation in production environments exposed to heat, vibration, and electrical interference.
Building automation systems rely on Ethernet switches to connect HVAC controllers, lighting systems, access control units, and monitoring devices. The IE-SW-ELB-05-5TX integrates easily into these networks thanks to its flexible AC and DC power input options. Stable data forwarding and storm protection help isolate faulty devices, preventing disruptions across the building network. Its compact metal housing supports long-term operation in electrical rooms and distribution cabinets, contributing to consistent system performance and reduced maintenance requirements.
Industrial edge applications gather data from machines and sensors for monitoring, optimization, and predictive maintenance. The IE-SW-ELB-05-5TX acts as a reliable aggregation point, connecting multiple edge devices while ensuring critical data streams are prioritized. Store-and-forward switching improves data quality by filtering invalid packets before they reach higher-level systems. This reliability supports continuous data availability, enabling accurate analytics and informed decision-making in smart manufacturing and industrial monitoring environments.
