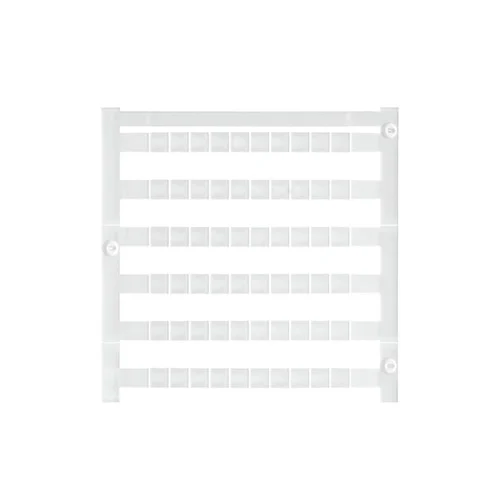

Weidmuller DEK 5/5 PLUS MC NE WS Dekafix Terminal Marker

Technical Overview

The Weidmüller DEK 5/5 PLUS MC NE WS is a universal Dekafix terminal marker designed for the precise identification of conductors, plug-in connectors, and electronic sub-assemblies. Delivered in the industry-standard MultiCard format, it ensures compatibility with PrintJet CONNECT and MCP Plus plotters for high-speed, custom printing. This marker features a 5 mm pitch, a secure snap-on mounting mechanism for standard terminal blocks, and is constructed from halogen-free Polyamide 66. It offers robust durability with a UL 94 V-2 flammability rating and a wide operating temperature range of -40°C to 100°C.

Key Features

Universal Dekafix (DEK) marker suitable for Weidmüller terminal blocks
MultiCard (MC) format enables rapid printing and installation
Snap-on mounting ensures secure retention under vibration
Halogen-free Polyamide 66 construction for environmental safety
Compatible with PrintJet CONNECT and standard plotters
Wide operating temperature range of -40 °C to 100 °C
UL 94 V-2 flammability rating for fire safety compliance

Technical Specification Matrix

Technical Parameter	Specification
Version	Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
Order No.	1854490000
Type	DEK 5/5 PLUS MC NE WS
GTIN (EAN)	4032248393596
Material	Polyamide 66
Colour	White
Operating Temperature Range	-40 °C to 100 °C
UL 94 Flammability Rating	V-2
Halogen	No
Application/Manufacturer	Weidmueller
Installation Type	Snap-on
Pitch	5 mm
Printing Method	Neutral (printable with PrintJet CONNECT/Plotter)
RoHS Compliance	Compliant
Packaging Unit	1000 items (MultiCard)
ECLASS 13.0	27-28-11-01
Dimensions (H x W)	5 mm x 5 mm
Net Weight	0.071 g

Industrial Applications

1. Control Cabinet Terminal Identification

Systematic labeling of high-density terminal blocks within industrial control cabinets using the MultiCard format.

Problem Solved

Prevents wiring errors during installation and maintenance by providing legible, permanent identification of individual circuits.

terminal block labelingcircuit identificationcontrol cabinet organizationwiring safety

2. Automation Interface Marking

Identification of sensor and actuator interface modules in PLC and DCS environments.

Problem Solved

Facilitates rapid troubleshooting and signal tracing by clearly mapping physical connections to logical controller addresses.

PLC interface markingsignal tracingautomation maintenanceI/O identification

3. Power Distribution Phase Tagging

Tagging of potential distribution blocks and busbar connections in low-voltage switchgear.

Problem Solved

Enhances electrical safety compliance by clearly distinguishing between phases and potential levels, reducing the risk of accidental cross-connection.

phase identificationpotential distributionswitchgear safetyelectrical compliance
