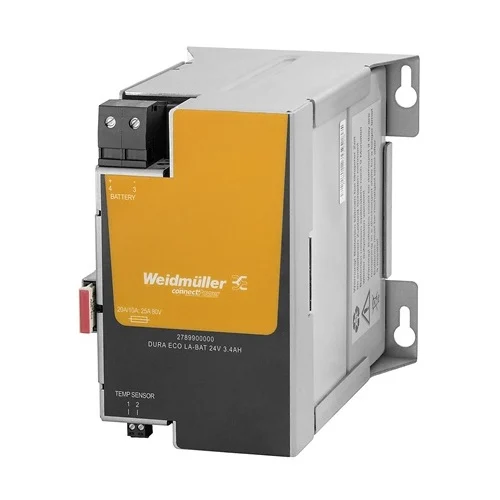

Weidmuller DURA ECO LA-BAT 24V 3.4AH Battery Module

USD 133.07

24V DC, 3.4Ah lead-fleece battery module with 25A max output, IP20, and NTC 100 kΩ temperature sensor for optimal charging.

SKU Weidmuller-2789900000 Category
Top Brands > Weidmuller > Weidmuller Battery Modules

Weidmuller DURA ECO LA-BAT 24V 3.4AH Battery Module

Model Identifier DURA ECO LA-BAT 24V 3.4AH
Official Part Number 2789900000
GTIN Standard 4064675068655

Technical Overview

24V DC, 3.4Ah lead-fleece battery module with 25A max output, IP20, and NTC 100 kΩ temperature sensor for optimal charging.

Key Features

  • Equipped with sealed and maintenance-free lead-fleece batteries.
  • Features an integrated NTC 100 kΩ temperature probe for optimal battery charging and life.
  • Designed for safe and quick fitting thanks to plug-in connections.
  • Includes a parallel connection option for increased capacity or redundancy.
  • Provides overload and short circuit protection via a 25 A fuse.
  • Fully compatible with Weidmuller CP DC UPS 24V control units.

Optimized battery charging and extended service life are achieved through an integrated temperature sensor that ensures temperature-compensated charging.

Technical Specification Matrix

ParameterValue
Rated Input Voltage24 V DC
Nominal Capacity3.4 Ah
Maximum Output Current25 A
Maximum Charging Current0.51 A
Overload and Short Circuit Protection25 A fuse
Parallel Connection OptionYes
Temperature ProbeNTC 100 kΩ
Ambient Temperature Range-15 °C to +50 °C
Storage Temperature Range-15 °C to +50 °C
Humidity5…95 % RH
Life Expectancy5.65 years
Protection ClassIII, for SELV (Safety Extra-Low Voltage)
Protection Degree (IP Rating)IP20
Buffer Time @ 17 A3 minutes
Buffer Time @ 13 A5 minutes
Buffer Time @ 3.7 A30 minutes
Physical Weight (kg)3.9
Dimensions L x W x H (cm)16.6 x 10.8 x 14.1

Industrial Applications

1. Industrial Control Panel Backup Power

Provides essential short-term backup power for critical 24V DC control systems, PLCs, and HMI panels within industrial control cabinets during brief power outages.

Problem Solved

Prevents data loss, system interruptions, and costly downtime in automated industrial processes by maintaining power to critical components during transient power events. The 24V DC output and 3.4Ah capacity, coupled with a 25A max output, ensure sufficient energy delivery for graceful shutdowns or continued operation for several minutes.

24V DC3.4 Ah25 A OutputUPSIndustrial AutomationPower Interruption

2. Emergency Lighting Support in Manufacturing Facilities

Serves as a reliable backup power source for 24V DC emergency lighting circuits in manufacturing plants or warehouses, ensuring illumination during main power failures.

Problem Solved

Guarantees safe evacuation routes and maintains minimal visibility for operations in the event of a power cut, reducing safety hazards. The 30-minute buffer time at 3.7A is ideal for short-duration emergency lighting, and the -15°C to +50°C ambient temperature range supports typical indoor industrial environments.

24V DC3.4 AhEmergency LightingBackup PowerIndustrial SafetyTemperature Range

3. Remote Telemetry Unit (RTU) Power Stabilization

Offers robust power stabilization and backup for remote telemetry units (RTUs) used in applications like water management or remote infrastructure monitoring.

Problem Solved

Ensures continuous operation of remote monitoring and control equipment despite intermittent power supply from solar panels or unreliable grids, preventing data gaps and maintaining critical communication links. The 24V DC output and life expectancy of 5.65 years contribute to long-term reliability in unattended remote locations, especially when housed in an appropriate IP-rated enclosure (considering the battery module's IP20 rating).

24V DCRemote MonitoringRTUPower BufferSystem ContinuityLead-Fleece Battery
