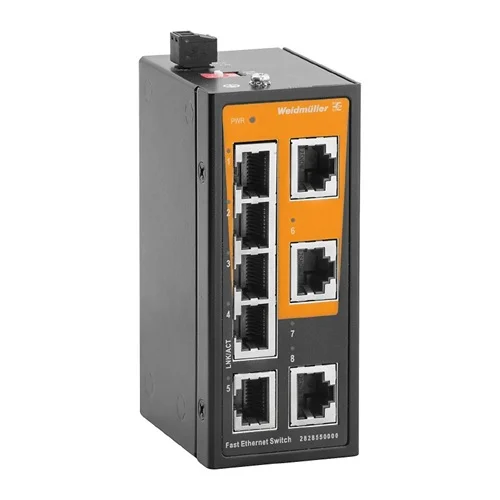

Weidmuller IE-SW-ELB-08-8TX Unmanaged Fast Ethernet Switch with QoS
The Weidmuller IE-SW-ELB-08-8TX unmanaged Fast Ethernet switch with Quality of Service is designed to provide stable and efficient Ethernet communication for industrial automation environments. Equipped with eight Fast Ethernet RJ45 ports, this compact switch enables straightforward network expansion without configuration effort. It addresses common industrial challenges such as limited control cabinet space, network congestion, and real-time data reliability. With support for PROFINET Conformance Class A and integrated traffic prioritization, it ensures that time-critical data is handled consistently, making it suitable for modern machine networks and decentralized automation systems.
The Weidmuller IE-SW-ELB-08-8TX is built for users who need reliable industrial networking without the complexity of managed switches. Its Quality of Service function helps prioritize essential control data, reducing latency in automation networks. Broadcast storm protection improves overall network stability, especially in expanding systems. The rugged metal housing and wide operating temperature range support long-term operation in industrial conditions. Flexible AC and DC power input options simplify panel design and reduce external components, making this switch a cost-effective and dependable choice for machine builders and system integrators.
Why IE-SW-ELB-08-8TX?
The IE-SW-ELB-08-8TX is designed for engineers who want industrial Ethernet reliability without configuration complexity. It combines a compact footprint with intelligent traffic handling, allowing critical data to flow smoothly even in busy networks. Its robust construction, flexible power input, and real-time communication support make it an ideal foundation for scalable automation systems where stability, simplicity, and long-term reliability are essential.
What problem does it solve?
This switch solves the challenge of maintaining stable and predictable Ethernet communication in industrial environments. It prevents network slowdowns caused by broadcast traffic, prioritizes time-sensitive control data, and eliminates the need for managed-switch expertise. As a result, machines and automation devices communicate reliably, reducing downtime, simplifying system design, and improving overall operational efficiency in control cabinets and field installations.
Key Features & Specifications – Weidmuller IE-SW-ELB-08-8TX: 2828550000
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Unmanaged industrial Ethernet switch | Simple deployment with no configuration required |
| Ethernet Ports | 8 × RJ45 Fast Ethernet (10/100Base-T(X)) | Easy connection of multiple industrial devices |
| Switching Technology | Store-and-Forward | Ensures data integrity and reduces transmission errors |
| Quality of Service (QoS) | IEEE 802.1p, 2 priority queues (DIP switch enabled) | Prioritizes time-critical control and automation data |
| Broadcast Storm Protection | Hardware-based, DIP switch selectable | Prevents network overload and improves stability |
| Industrial Protocol Support | PROFINET Conformance Class A | Reliable real-time communication in automation systems |
| MAC Address Table | 1K entries | Supports stable operation in growing networks |
| Packet Buffer Size | 448 kbit | Smooth data handling during traffic bursts |
| Backplane Bandwidth | 1.6 Gbit/s | Consistent throughput across all ports |
| Power Supply | 12/24/48 V DC or 24 V AC, single input | Flexible power options simplify panel design |
| Protection Features | Reverse polarity and overload protection | Enhances system safety and reliability |
| Operating Temperature | -10 °C to +60 °C | Suitable for harsh industrial environments |
| Mounting | DIN-rail mounting with compact housing | Saves space in control cabinets |
| Housing Material | Metal, IP40 protection | Durable construction for industrial use |
| LED Indicators | Power, Link/Activity, Speed | Quick visual diagnostics during operation |
| Compliance & Approvals | RoHS, UL, EMC industrial standards | Meets global industrial and safety requirements |
| Reliability | MTBF > 460,000 hours | Long service life and reduced maintenance |
Download Weidmuller IE-SW-ELB-08-8TX (2828550000) Datasheet
Commercial Information – Weidmuller IE-SW-ELB-08-8TX: 2828550000
| Commercial Data | Details |
|---|---|
| EAN Number | 4064675369875 |
| Net Weight | 195 g |
The Applications for the IE-SW-ELB-08-8TX
1. Reliable Data Exchange in Automated Manufacturing Lines
In automated manufacturing environments, controllers, HMIs, and field devices must communicate continuously with minimal delay. The IE-SW-ELB-08-8TX is commonly installed inside machine control panels to connect PLCs, drives, and monitoring systems. Its Quality of Service capability helps ensure that control and status data are transmitted with priority, even when network traffic increases. Broadcast storm protection minimizes the risk of network congestion caused by faulty or newly added devices. With its compact DIN-rail design, the switch fits easily into space-limited cabinets while delivering stable Ethernet communication essential for maintaining production efficiency.
2. Deterministic Communication in PROFINET-Based Machinery
Packaging machines and material handling equipment depend on precise timing between controllers and distributed devices. The IE-SW-ELB-08-8TX supports PROFINET Conformance Class A, allowing predictable cyclic data exchange without the need for complex network configuration. This makes it suitable for conveyor systems, sorters, and automated packaging cells. Its unmanaged operation reduces commissioning time, while the rugged metal housing ensures reliable performance in environments exposed to vibration and electrical noise. By maintaining consistent network behavior, the switch helps reduce unexpected stoppages and supports smooth, synchronized machine operation.
3. Distributed Control in Building Automation Systems
In modern building automation, Ethernet networks link controllers for lighting, HVAC, access control, and energy monitoring. The IE-SW-ELB-08-8TX is used within floor-level or zone control panels to connect multiple subsystems. Flexible AC and DC power inputs simplify installation in existing electrical layouts. As systems expand, broadcast storm protection helps preserve network responsiveness. The switch’s reliable performance supports long-term operation, ensuring stable communication between building management systems and field devices while reducing maintenance complexity in commercial and industrial facilities.
4. Network Backbone for Industrial Test and Inspection Stations
Test benches and inspection cells often combine industrial PCs, controllers, measurement devices, and data storage systems on a shared Ethernet network. The IE-SW-ELB-08-8TX provides a stable connection point for these components, supporting consistent data flow during testing cycles. Quality of Service prioritizes control signals over background traffic, improving repeatability and accuracy. Its compact size allows integration into small enclosures, while high reliability supports continuous operation during long test sequences. This helps manufacturers achieve dependable test results and maintain productivity in quality-focused environments.
