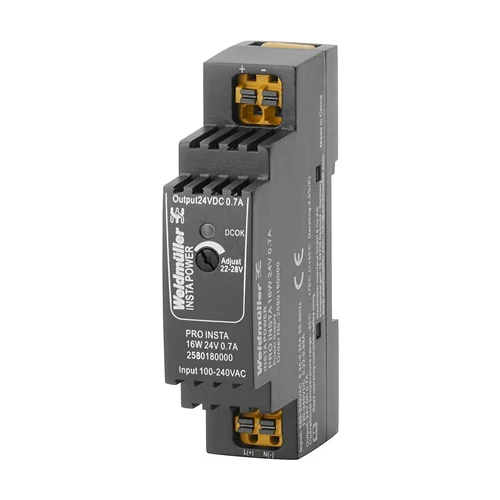

Weidmuller PRO INSTA 16W 24V 0.7A DIN Rail Power Supply

Technical Overview

Compact DIN rail power supply delivers 16W at 24VDC with 0.7A, featuring wide input range and PUSH IN connections.

Key Features

AC/DC DIN Rail Power Supply (PSU), ITE
Single output, 16W, 24V, 700mA
Wide input voltage range: 85V AC to 264V AC / 95V DC to 370V DC
Output voltage adjustable from 22V to 28V via front potentiometer
DIN rail mounting (TS 35) for quick and easy installation
PUSH IN connection system for tool-free and reliable wiring
Wide operating temperature range of -25°C to +70°C
IP20 protection rating against solid objects larger than 12mm
Compact housing design for space-saving installations
High Mean Time Between Failures (MTBF) of over 750,000 hours for extended service life
LED indicator provides visual status of operating voltage

Technical Specification Matrix

Parameter	Value
Output Power	16 W
Output Voltage	24 V DC (adjustable 22-28 V)
Output Current	0.7 A @ 55 °C
Input Voltage AC	85 V AC to 264 V AC
Input Voltage DC	95 V DC to 370 V DC
Number of Outputs	1
Efficiency	82.5 %
Operating Temperature	-25 °C to +70 °C
Storage Temperature	-40 °C to +85 °C
IP Rating	IP20
Mounting Type	DIN Rail TS 35
Connection System	PUSH IN
Housing Version	Plastic, protective insulation
Residual Ripple	<50 mVss @ UNenn, Full Load
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	6 x 2.25 x 9.05

Industrial Applications

1. Industrial Control Panel Power

Providing stable 24V DC power to PLCs, sensors, and HMI panels within compact industrial control cabinets. The DIN rail mounting simplifies installation and the compact size minimizes space requirements. The wide input voltage range (85-264V AC / 95-370V DC) ensures compatibility with various industrial power grids.

Problem Solved

Ensures reliable and consistent 24V DC power for critical control components in space-constrained industrial environments, even with fluctuating AC input, and allows for quick installation due to DIN rail and PUSH IN connections.

24V DC0.7A16WDIN railCompact85-264V AC inputIP20PUSH IN connectionPLCHMISensors

2. Building Automation Systems

Powering low-power 24V DC devices such as access control systems, CCTV cameras, and lighting controls in building automation infrastructure. Its wide operating temperature range (-25°C to +70°C) allows for installation in various building environments, from controlled server rooms to unheated utility closets.

Problem Solved

Delivers consistent and adjustable 24V DC power for essential building management and security devices, capable of operating reliably in diverse indoor temperature conditions.

24V DC0.7A16W-25°C to +70°CWide input voltageAdjustable outputBuilding managementAccess controlCCTVLighting control

3. Remote Industrial Monitoring Stations (Indoor)

Supplying power to small data loggers, remote telemetry units (RTUs), or industrial IoT gateways in isolated, unheated or uncooled indoor industrial locations. The wide operating temperature range (-25°C to +70°C) and robust plastic housing (IP20) are suitable for such conditions where basic environmental protection is needed.

Problem Solved

Offers a reliable and resilient 24V DC power source for critical data acquisition and communication equipment in industrial settings that experience significant temperature variations but require basic protection from solid objects.

24V DC16W-25°C to +70°C85-264V AC95-370V DCRTUIoT gatewayData loggerIndustrial monitoringIP20
