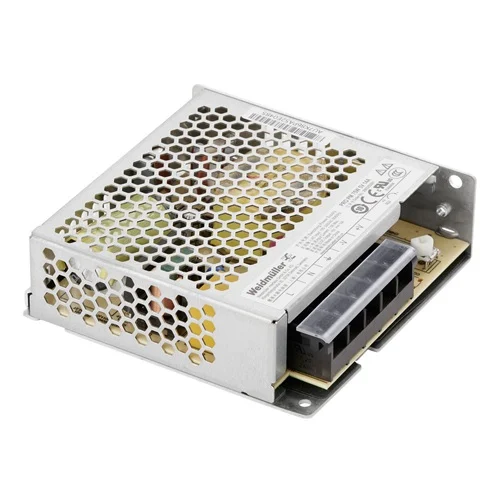

Weidmuller PRO PM 75W 12V 6A Switch-Mode Power Supply

Technical Overview

Compact 75W switch-mode power supply delivers 12V DC at 6A from 90-264V AC input, ideal for industrial control.

Key Features

Switch-mode power supply unit for efficient energy conversion.
Provides a stable 75W power output.
Offers a 12V DC output voltage with a 0-6A current range.
Features a wide input voltage range of 90-264V AC for global compatibility.
Operates reliably in temperatures from -20 °C to 70 °C.
Equipped with an IP20 protection rating for general industrial environments.
Utilizes a robust screw connection system for secure input and output wiring.
Compact dimensions (99 mm depth, 30 mm height, 97 mm width) for space-saving installations.
High efficiency of 84% to minimize energy loss.

Technical Specification Matrix

Parameter	Value
Output Power	75 W
Output Voltage	12 V DC
Output Current	0 - 6 A
Output Voltage Range	10.8 - 13.2 V DC
Input Voltage Range AC	90 - 264 V AC
Input Frequency Range AC	47 - 63 Hz
Efficiency	84%
Operating Temperature	-20 °C to 70 °C
Storage Temperature	-40 °C to 85 °C
Humidity	5 - 95 % RH
IP Rating	IP20
Connection System	Screw connection
AC Current Consumption (230V AC)	1 A
AC Current Consumption (115V AC)	2 A
Inrush Current	max. 45 A
Physical Weight (kg)	0.24
Dimensions L x W x H (cm)	9.9 x 9.7 x 3

Industrial Applications

1. Industrial Control Panel Power

This power supply provides a stable 12V DC output up to 6A, making it ideal for powering various low-voltage components within industrial control panels, such as PLCs, sensors, and relays. Its wide 90-264V AC input ensures compatibility across different geographical power standards, and the compact 30mm height allows for efficient use of space within crowded cabinets.

Problem Solved

Ensures reliable and space-efficient 12V DC power distribution for critical control components in diverse industrial panel environments.

12V DCControl PanelPLCSensorsRelaysWide Input VoltageCompact Design

2. Enclosed LED Lighting Systems

The 75W 12V DC output is perfectly suited for driving internal LED lighting strips and fixtures within industrial machinery or electrical enclosures. With an operating temperature range of -20°C to 70°C, it reliably functions in harsh factory environments, providing consistent illumination for maintenance and operational visibility.

Problem Solved

Provides robust and temperature-tolerant 12V DC power for internal LED lighting, enhancing visibility and safety within industrial enclosures.

12V DCLED LightingIndustrial Enclosure75WTemperature ResistanceInternal Illumination

3. Small Industrial Actuator Supply

Capable of delivering up to 6A at 12V DC, this power supply is suitable for energizing small industrial actuators such as solenoids, contactors, or low-power DC motors. The screw connection system ensures secure wiring, and the IP20 rating, combined with the broad operating temperature, ensures consistent performance in typical industrial settings.

Problem Solved

Reliably powers small 12V DC industrial actuators, providing the necessary current and maintaining performance across common industrial temperature ranges.

12V DCSolenoidsDC MotorsActuators6A OutputScrew TerminalsAutomation
